Maintenance and cleaning
64 Amatron+ BAG0063.1 03.10
4.
Close the outlet fully (0 pulses).
5.
Open the outlet to 1500 pulses.
DANGER
Risk of injury near dosing sliders
when key pressed
, , ,
, ,
because the sliders
close before the selected setting is
applied.
Keep fingers and gauges away from
the opening.
6. Insert the setting gauge (Fig. 76/1) (Option,
order no.: 915018) slightly into the opening.
 The gauge cannot be inserted through
the opening:
Increase the current offset by 5
pulses until the gauge fits exactly in
the opening (Fig. 77)
.

Too much gauge cl
earance:
Reduce the current offset by 5 pulses
until the gauge fits exactly in the open-
ing (Fig. 77).
7.
Confirm the position with the input
key.

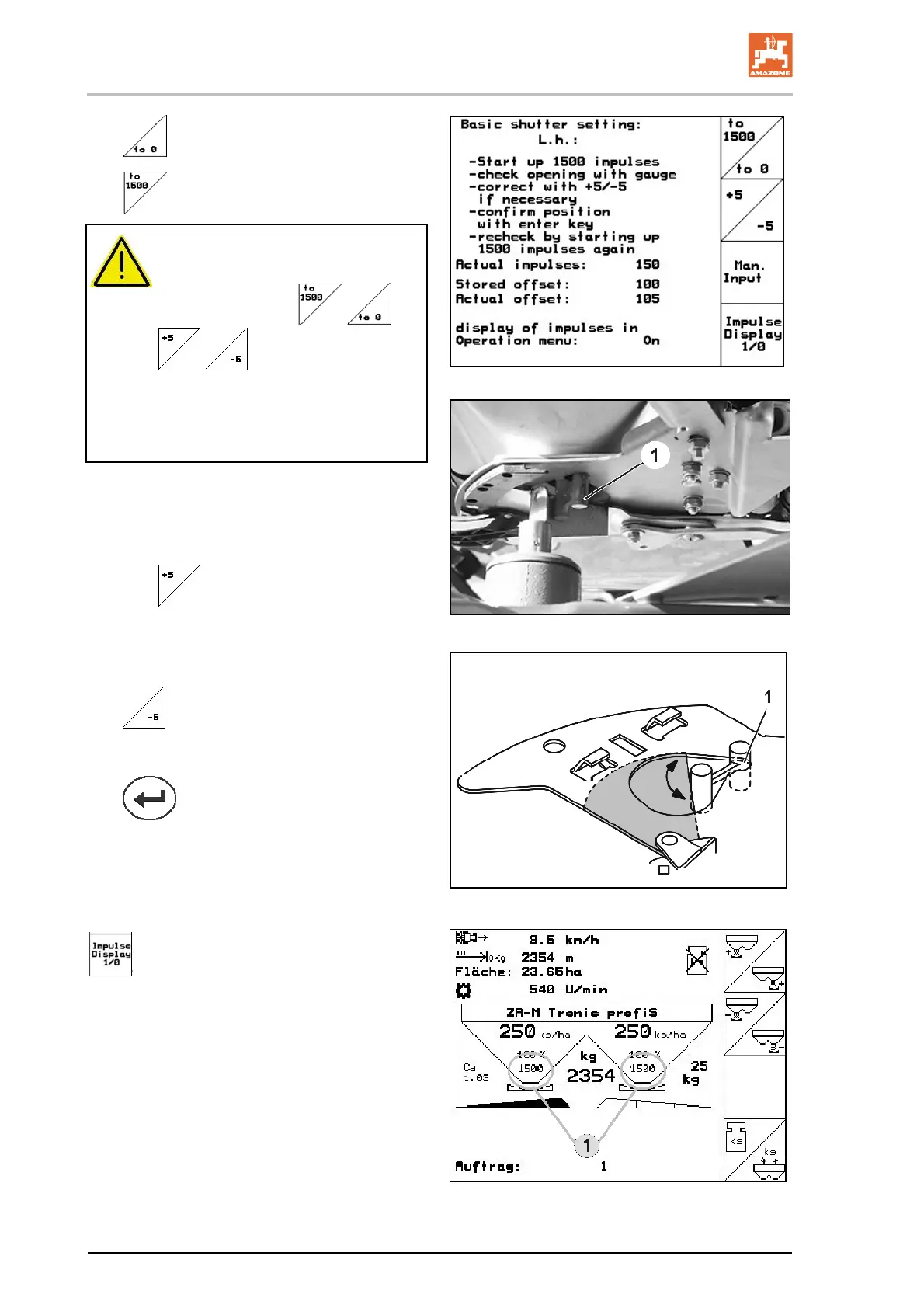

Fig. 75
Fig. 76
Fig. 77
The setting motor pulses (Fig. 78/1) can
be displayed in the work menu.
Fig. 78
