3-24 | Model 888 ATEX IECEx Tail Gas Analyzer

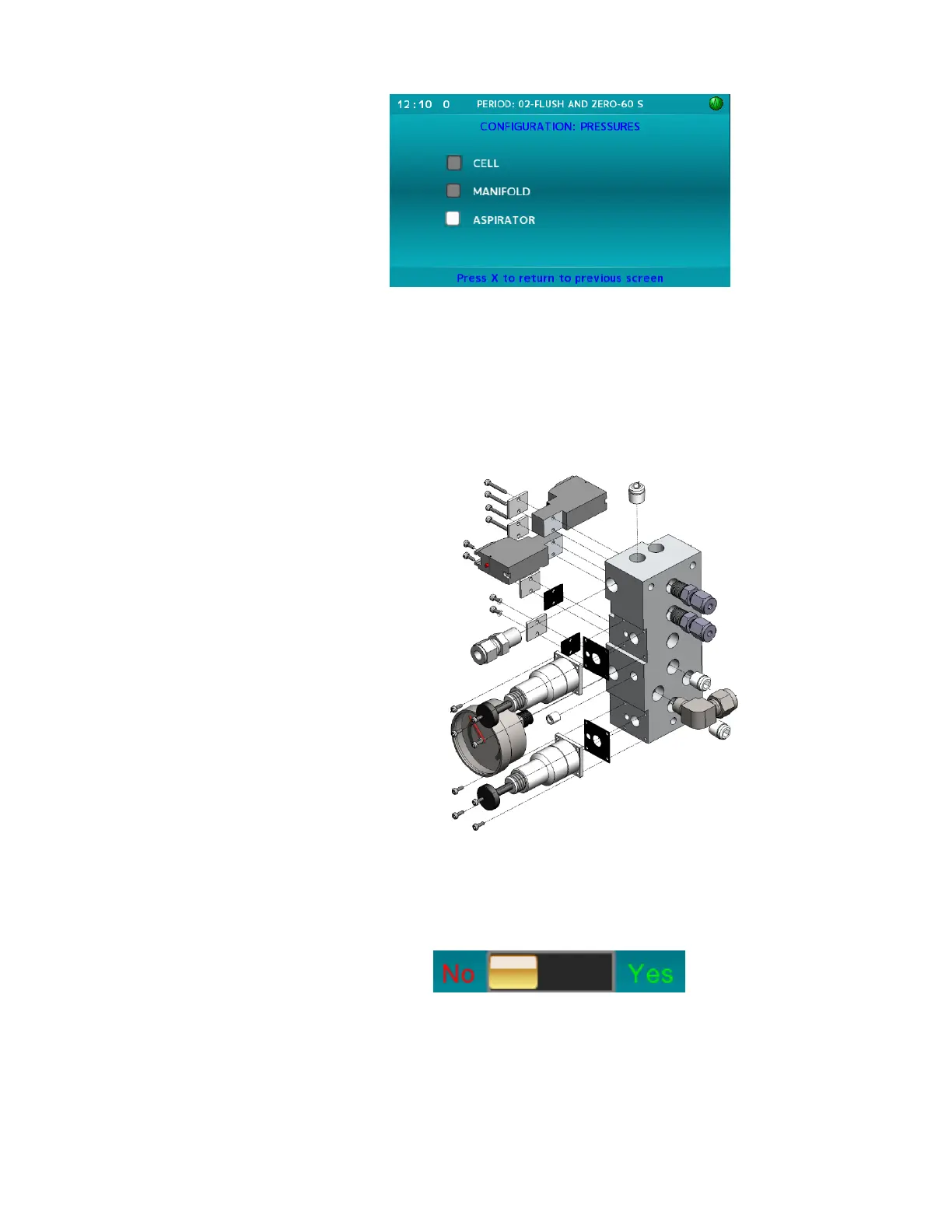

Figure 3-8d. Conguration Screen.
1. Locate the aspirator regulator pressure gauge (GA1). Set the aspirator
regulator pressure until the gauge reads approximately 10 PSI above
the process pressure.
2. Make sure the Aspirator Overide is in the NO position.
Neutral, de-activated position
3. Check that the flow setpoint is set to 1.5.
