3.3.1 Configuration Switch
The DIP switch (may be 8-pin or 4-pin) is accessible from the rear panel to
configure the supply for your particular system and application. The following
figures show the configuration, as set up in Section 3.2, and with GPIB
address set to five (5) for the SGA/SGe. In the SGI only Remote/Local
position is used, addressing is done through the front panel menu (See SGI
operation manual).
Note: There is one of two types of DIP switches: toggle or rocker.
For toggle switches, the shading indicates the position of the toggle switch.
For rocker switches, the shading indicates the depressed side.

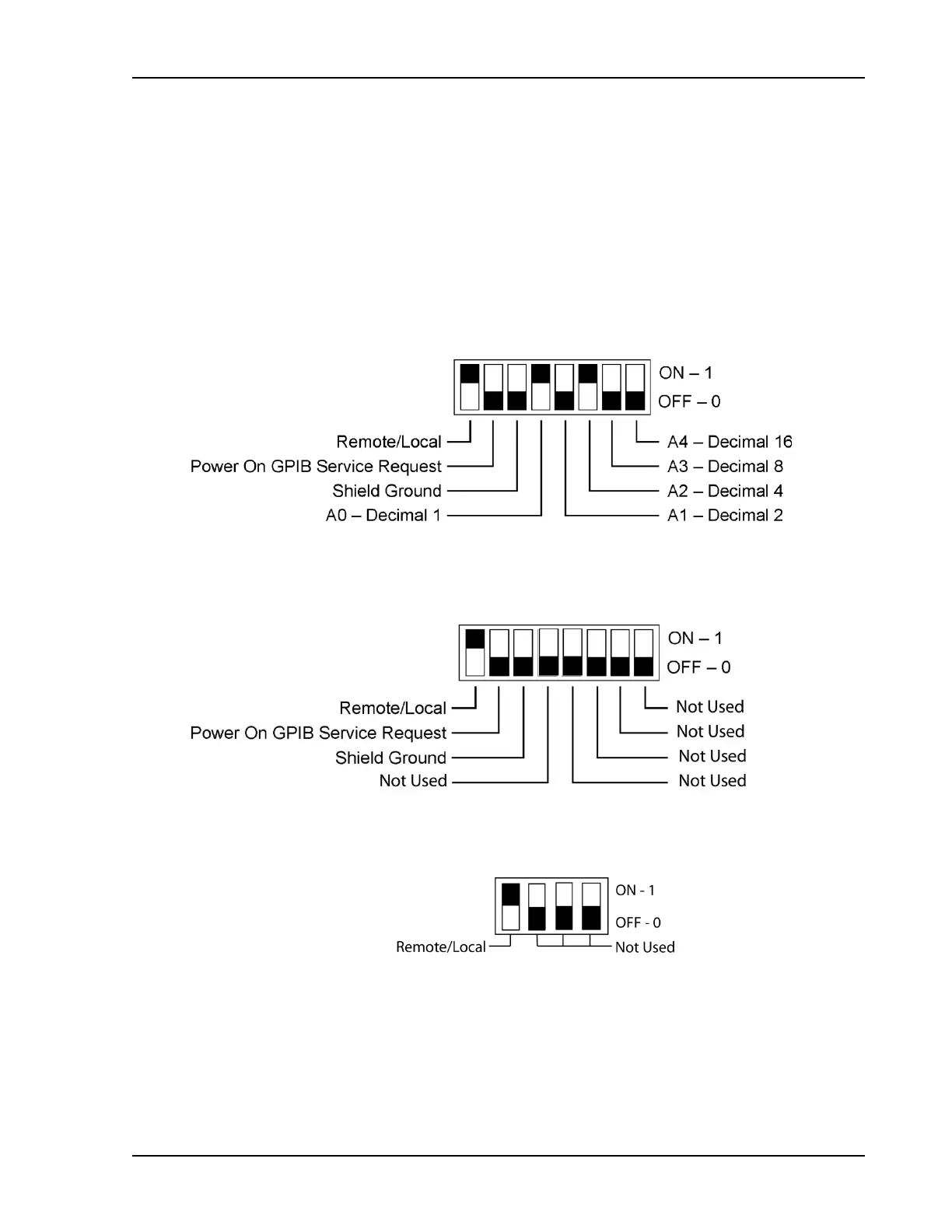

Figure 3-5. SGA/SGe Configuration Switch for GPIB
Figure 3-6. SGI 8-pin Configuration Switch for GPIB or Ethernet
Figure 3-7. SGI 4-pin Configuration Switch for Ethernet
