Ethernet Configuration and Remote Programming SG Series Programming
5-24 M550129-03 Rev L
5.5.4 STATUS
The Status page displays updated information for the following parameters:

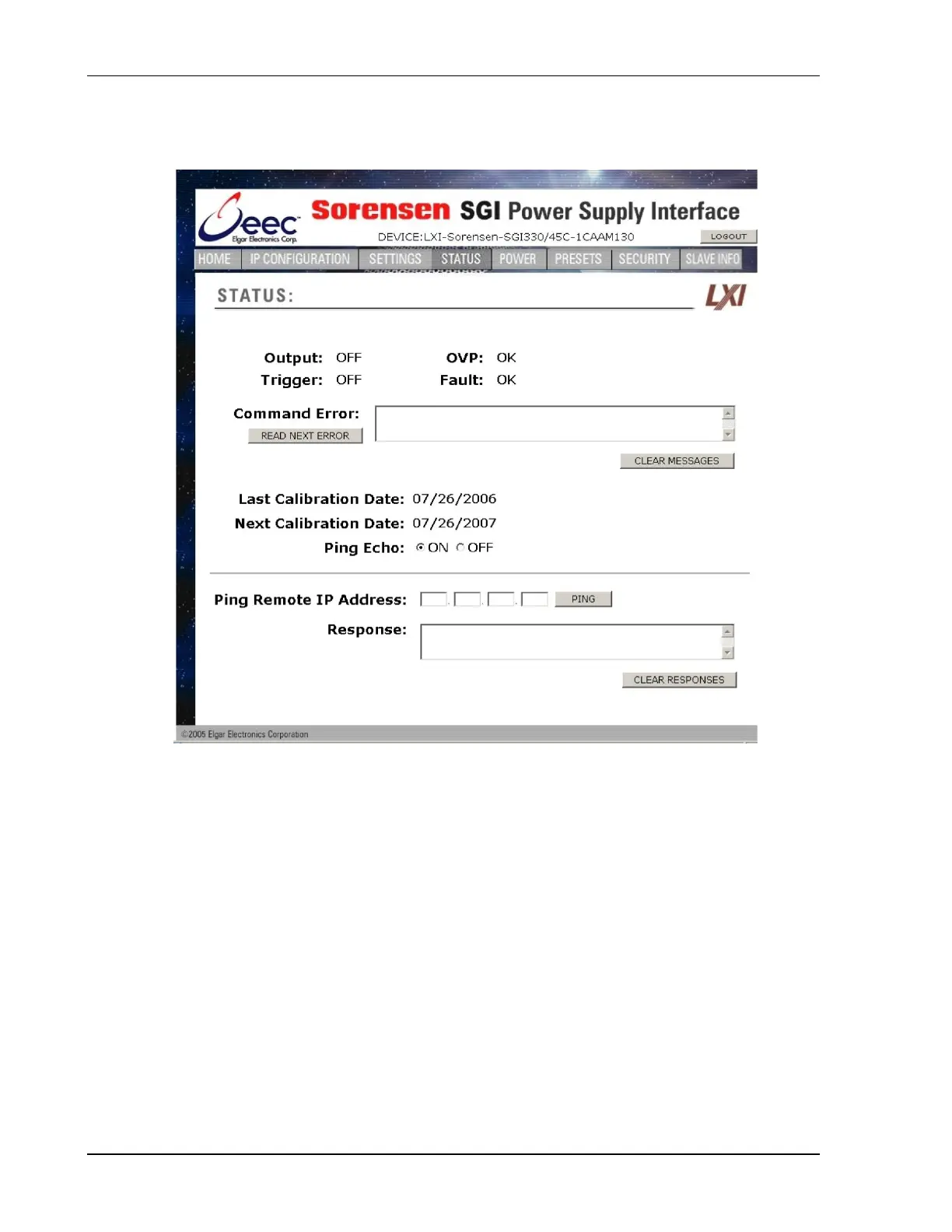

Figure 5-16. Status Page
Output: displays the power output status, ON or OFF
Trigger: set up by SCPI commands, displays whether the Trigger state is
OFF, ARMED, or TRIGGERED.
OVP: displays Read Only status of over voltage protection, either OK
(normal) or TRIPPED.
FAULT: displays Read Only status of over temperature condition, either
OK (normal) or TRIPPED.
Command Error: displays command and syntax errors that are queued
in the supply.
READ NEXT ERROR: each click brings the next error into the Command
Error display, until no other errors are in the queue.
CLEAR MESSAGES: click this button to clear the Command Error
message window of past messages.
