5.5.6 PRESETS
The Presets page (only in SGI) displays stored values, which can be edited,
saved and/or recalled. The parameters for this page are:

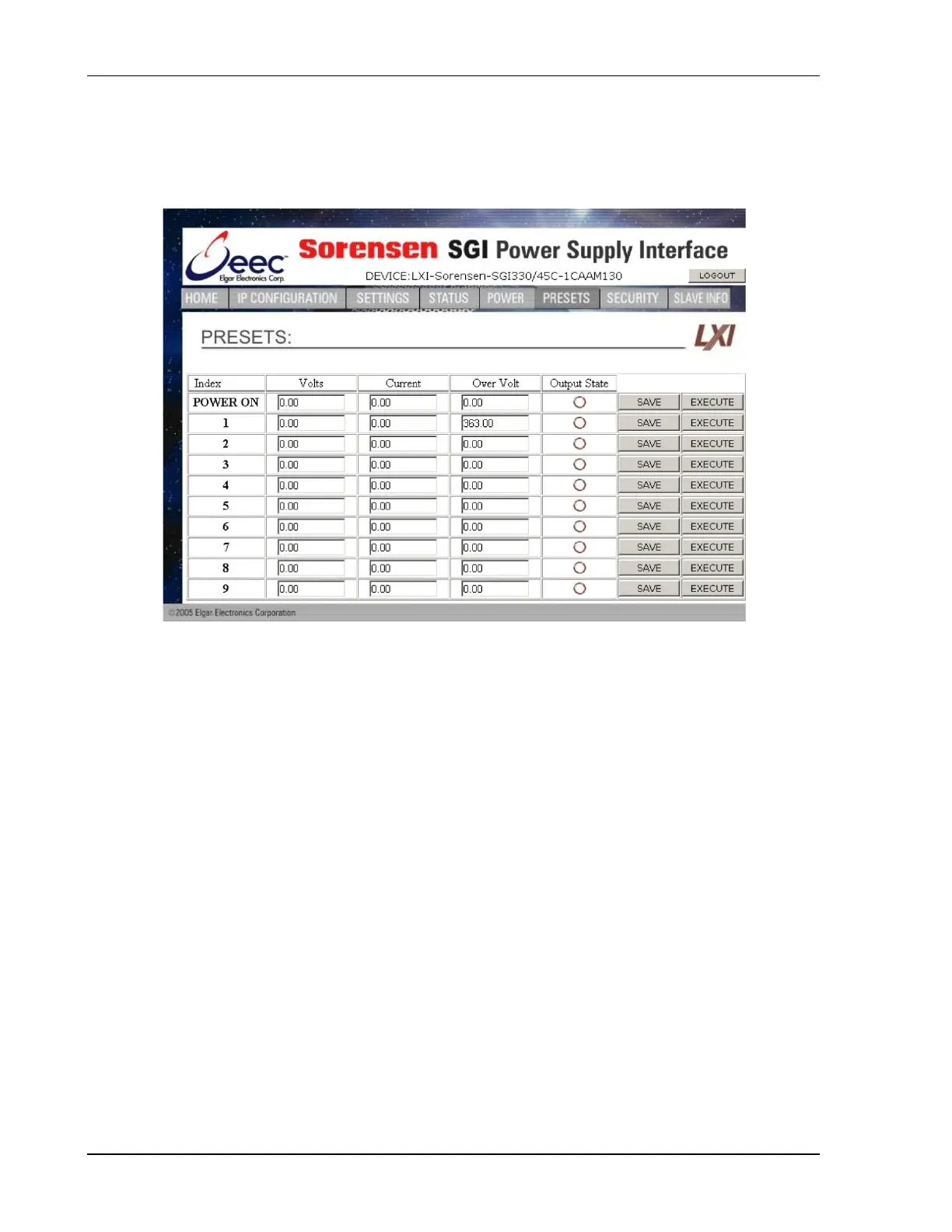

Figure 5-18. SGI Presets Page (not in SGA/SGe)
Index: Displays memory locations named POWER ON (default power on
settings) and 1 through 9
Volts: value presently stored in memory location name
Current: value presently stored in memory location name
Over Volt: value presently stored in memory location name
Output State: displays state of the output condition presently stored in
memory location name (indicator is an open circle for OFF or a solid circle
for ON)
SAVE: saves the input values into their respective location name memory
(Must have Read/Write access)
EXECUTE: recalls the following settings into operation from its respective
memory location name (Must have Read/Write access)
If you have Read/Write access, you can save the following settings into
its respective memory location name (after inputting desired settings, click
SAVE):
Volts: click in the Volts field and input a new value for voltage.
Current: click in the Current field and input a new value for
current.
