Ametek Thermox Series 2000 WDG-IVC

Service and Parts | 7-11
Furnace assembly
Combustibles
Detector
Block
Ferrule
Detector head
Compression
Fitting
Nut
Side View
Front View
Sample
flow
flow
Place Mark
@ 12 o'clock

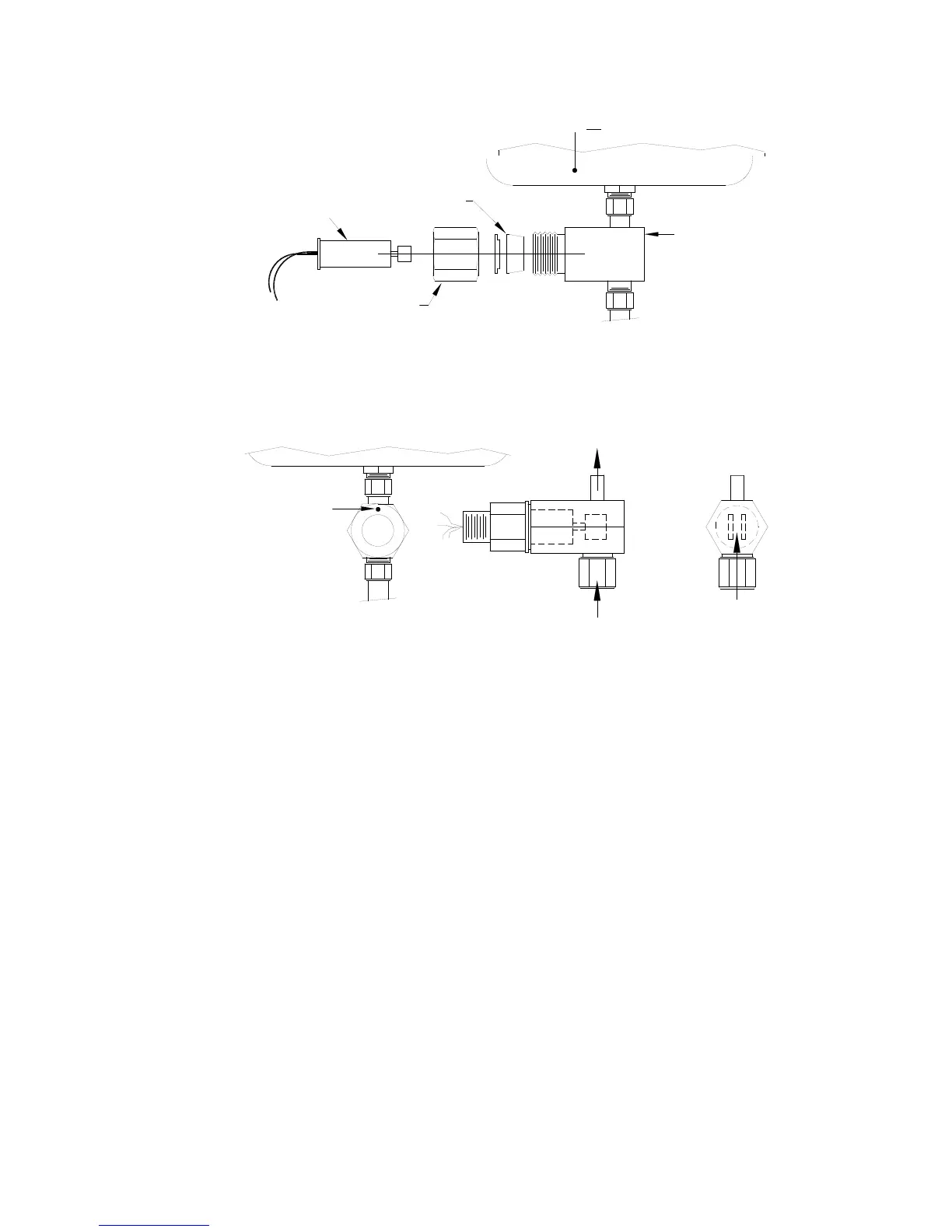

Figure 7-5. Combustibles detector replacement (Hot-Wire).
