3-38 | Thermox Series 2000 WDG-IV / IVC / IVCM
Option Card Installation
This section shows you how to add option cards to the control unit. This
includes the following option cards:
• Combustibles Card - requires combustibles detector in sensor
• Auto Calibration Card - requires remote calibration unit
If you ordered any of these options when you purchased your analyzer,
these option cards will already be installed in the control unit. This section
shows you how to install an option card if you later add that option to the
control unit.
This section also shows you how to access the display module and power
supply/keypad module on the control unit in case you need to replace
these modules or change a component in them (for example, install new
software).
Removing Display Module or Power Supply/Keypad
Module
This section describes how to remove or replace the display module or
power supply keypad module on the control unit (see Figure 3-26):
Remove power from the control unit before working on it.

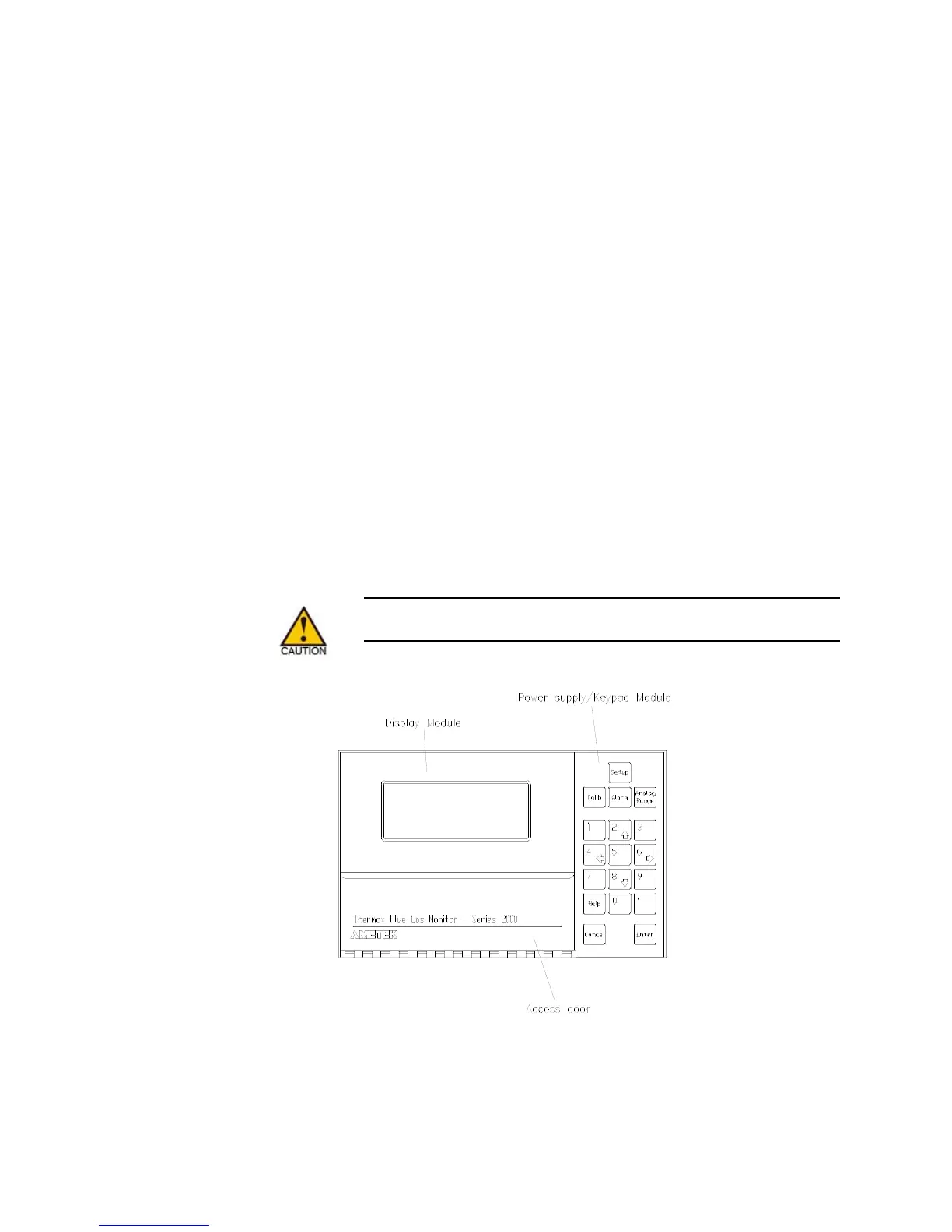

Figure 3-26. Front view of series 2000 control unit.
