Current Outputs: Other Applications | C-3
Modulation of External Power Loop Using Current Outputs

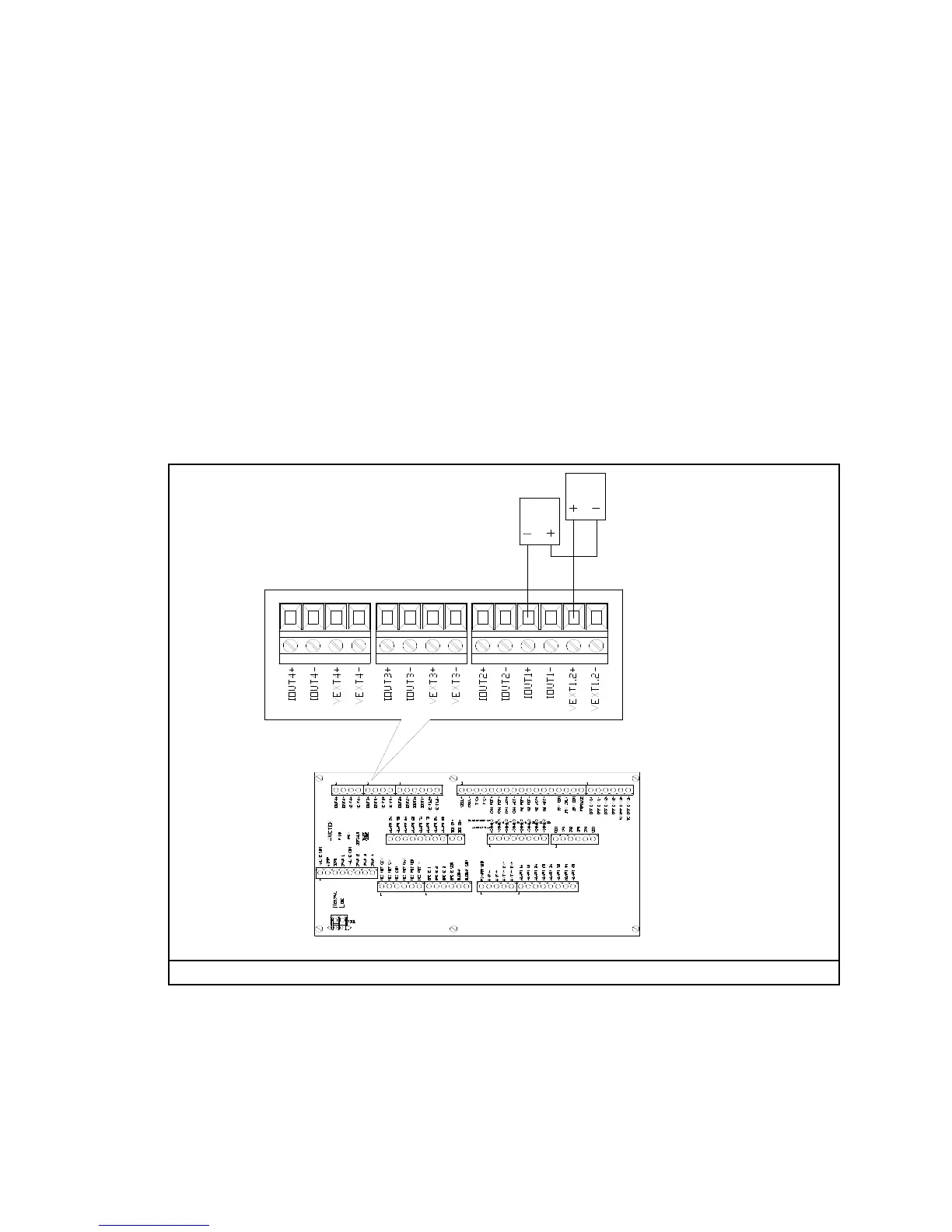

Figure C-1 shows an example of the connection method when you want to
produce a modulated current loop from an external power supply and a load
device. All current output channels (IOUT1 and IOUT2) can be connected
in the same manner as shown in this figure.
IOUT1 and IOUT2 must share the same power supply if both of these chan-
nels are used, or two power supplies can be “ORed” together using a diode
from each power supply positive terminal (diode anode to power supply) to
the VEXT1,2+ terminal. The power supply minuses would be tied together
and connected to one side of the both loads. The other side of one of the
loads would be connected to IOUT1+ terminal, and the other side of the
other load would be connected to the IOUT2+ terminal.
For each current output channel used in a current loop modulation ap-
plication, the jumpers should be removed for that channel.
OUTPUT DEVICE
(COMPUTER OR CHART RECORDER)
MAX LOAD RESISTANCE 1200 OHMS
OPTIONAL
EXTERNAL LOOP POWER SUPPLY
MAX VOLTAGE 30 VOLTS DC
Figure C-1. Modulation of external power supply.
