3-4 | Thermox Series 2000 WDG-IV / IVC / IVCM
Standard 1/8” NPT probe installation
Connect a standard 1/8” NPT sample inlet probe to the sensor as follows:
• If your probe is 4 feet or less, simply screw the probe into the back of
the sample probe port on the rear of the sensor, then mount the sensor
- see Figure 3-1.

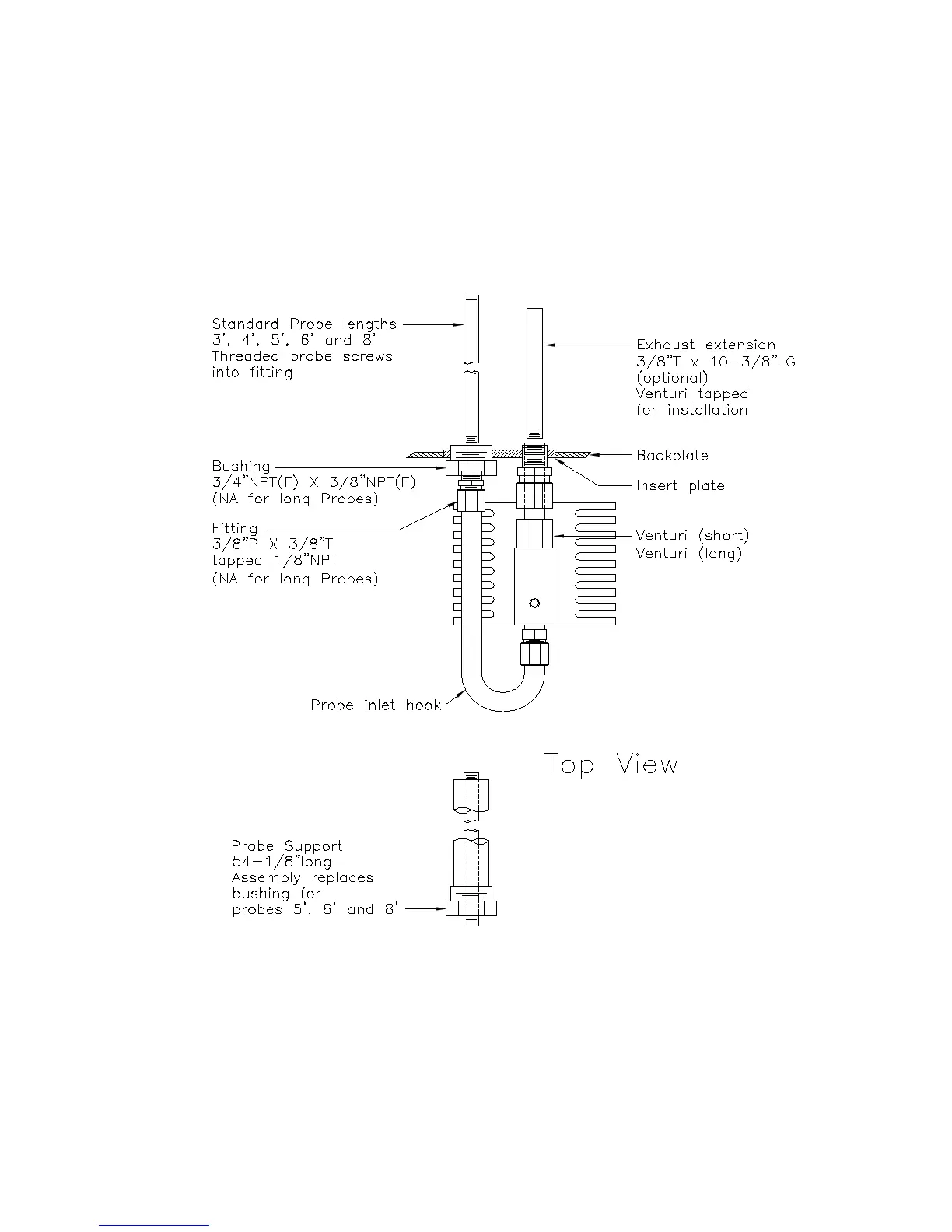

Figure 3-1. WDG-IV 1/8 NPT probe installation.
