Installation | 3-31
Computer dry
contact input
Load
Max. 30VA
Transient
protector
for inductive
loads
Power
Supply
Max. 30v

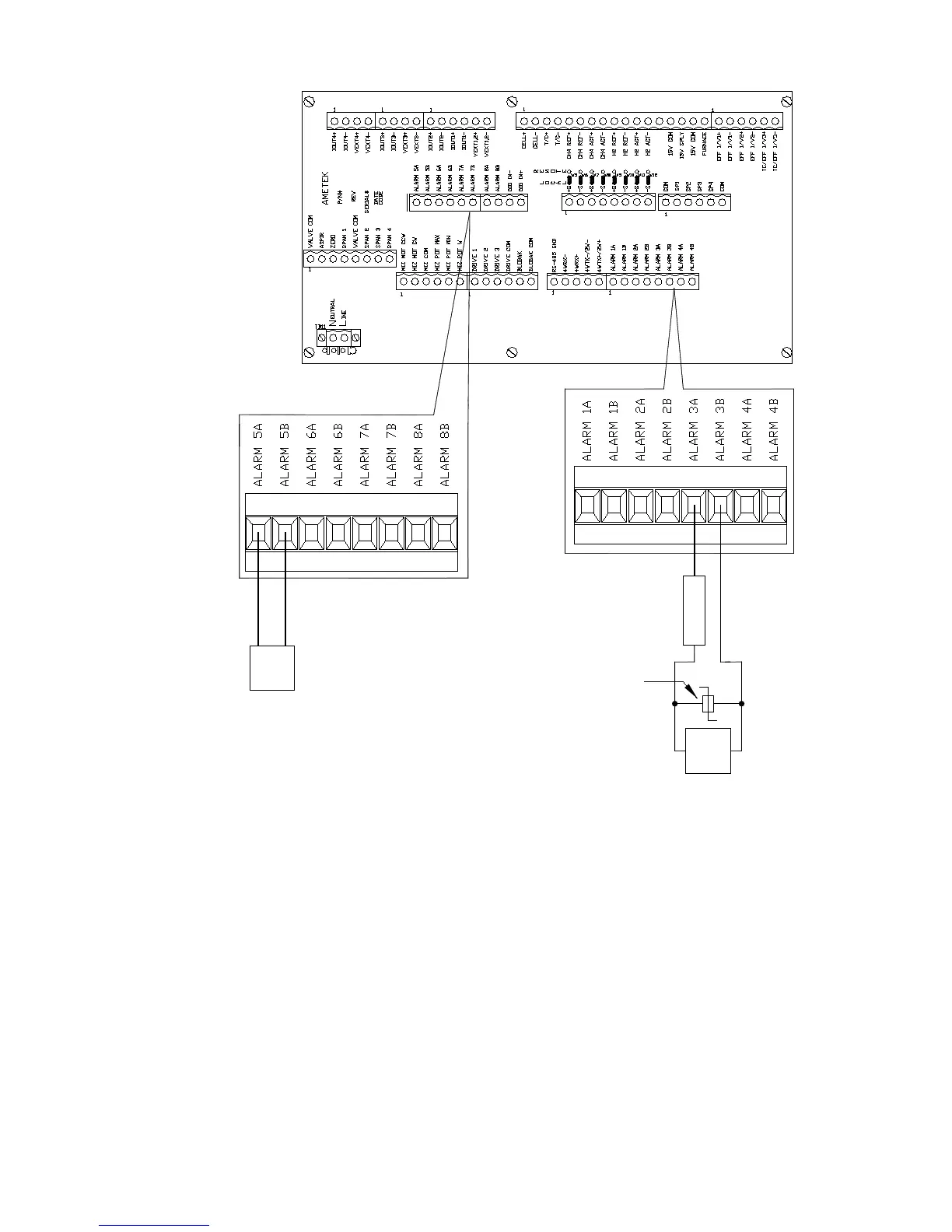

Figure 3-22. Series 2000 alarm contact connections.
