8 Maintenance
BNNbOO
ID: 1138310 Issue date January 01, 2010
105
Towing, releasing brakes
Drive motor MS02
(AV23-2, AV26-2, AV32-2)

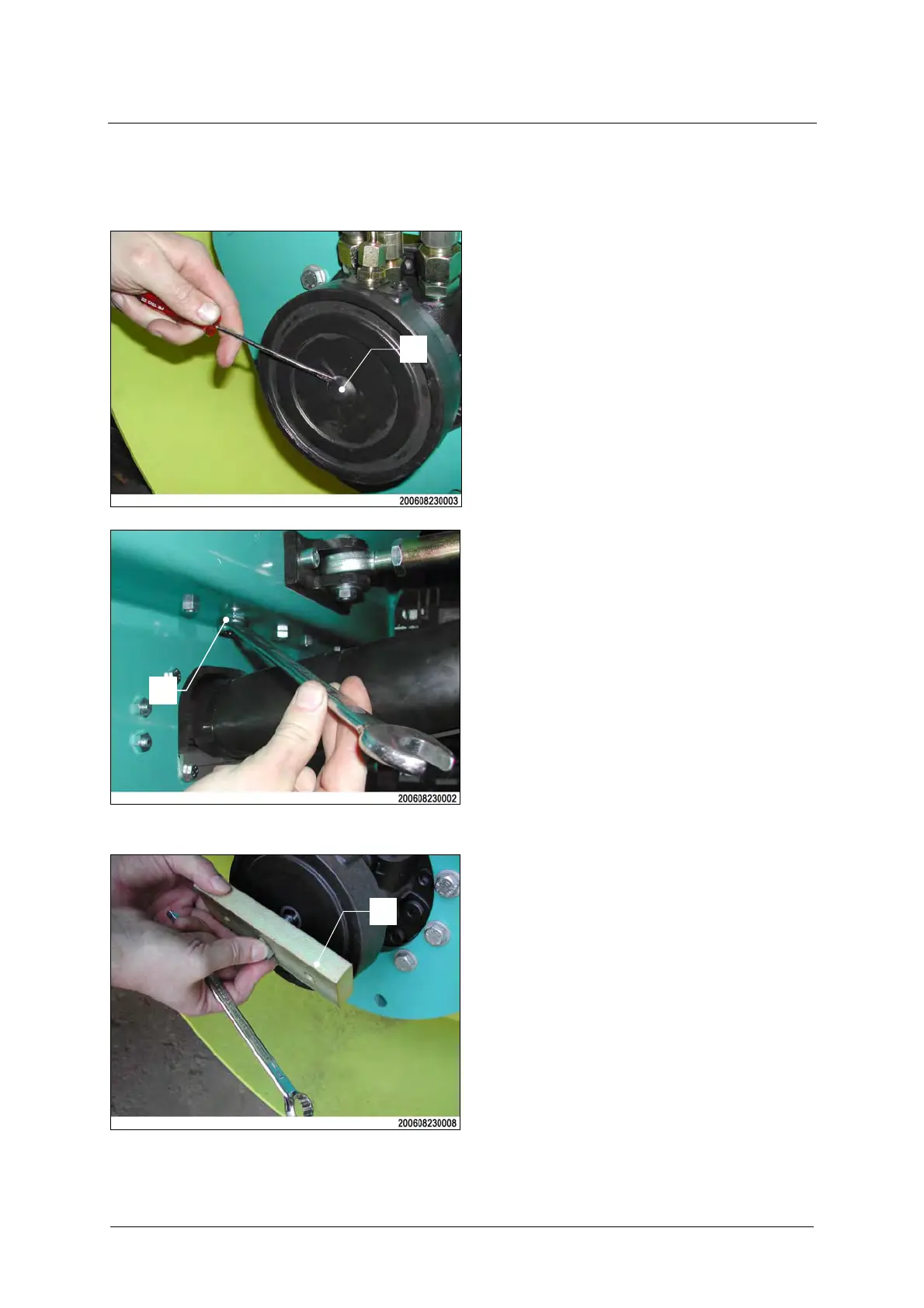

Remove the protective cap (1) on the
front and rear drive motor.
You can find the brake release
chocks in the front chassis under the
hood.
The brake release chock is fastened
under the hood by two screws
M12 × 35
(1).
Unscrew the screws using a wrench
and remove the brake release chock.
The two screws also act as tension
screws.
Screw the brake release chock (1)
onto the drive motor.
Turn the screw in by hand.
1
1
1
