8 Maintenance
BNNbOO
ID: 1138310 Issue date January 01, 2010
106

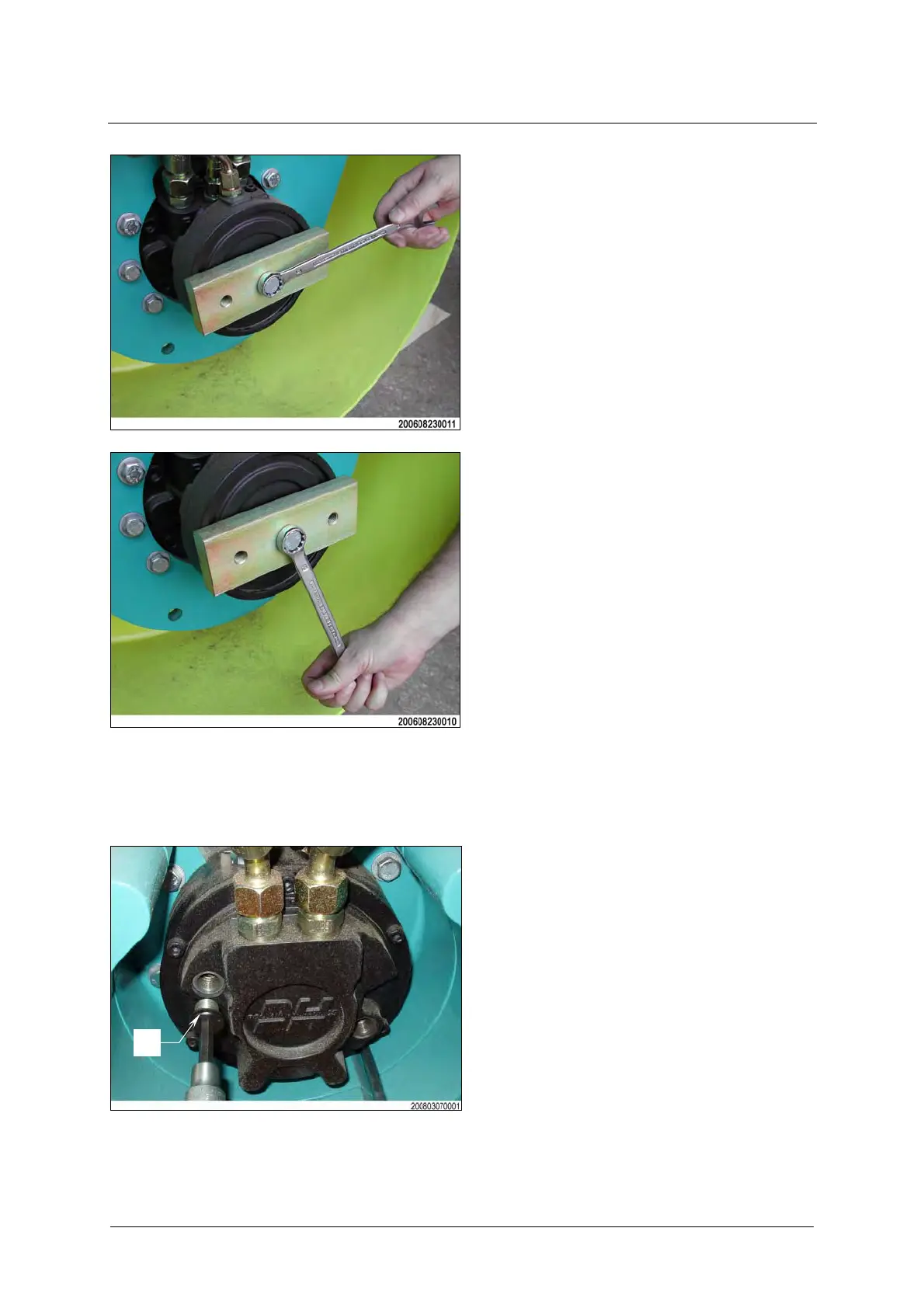

Towing, releasing brakes
Turn the wrench approx. one half turn
downward.
Wrench rotation on the motor approx.
180°.
The brakes have been released, you
can now tow the machine.
Drive motor MK04
(AV33-2, AV40-2, AV23-2 open-sided, AV26-2 open-sided)
Remove the two cover screws (1) on
the drive motor with an Allen key
(SW8).
1
