Page 38
EWCIE Technical Manual
11 Fire Panel Interfacing

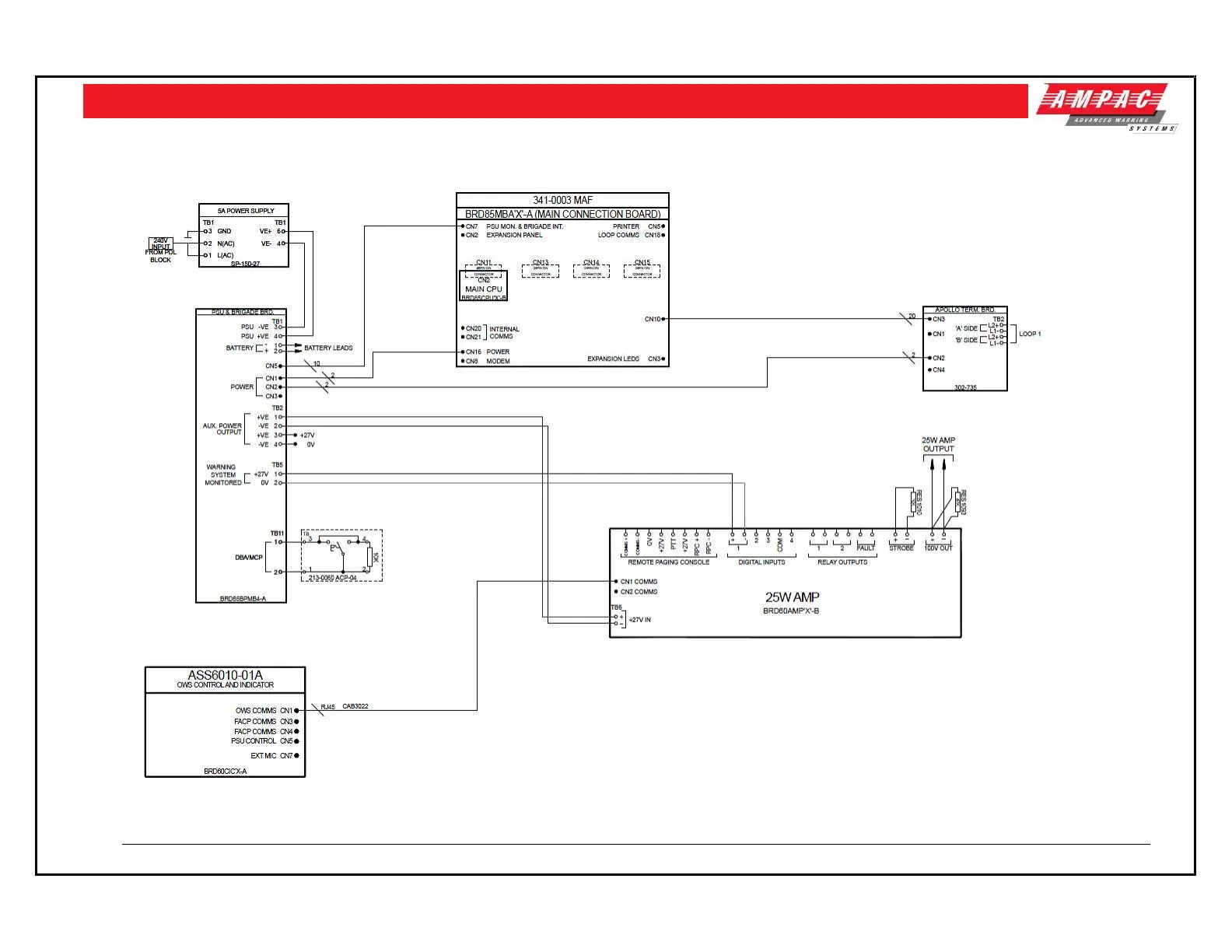

11.1 FireFinder 25W and 50W
Note:
1.
The Firefinder Monitored Warning System EOL resistor is not required to be fitted as the EOL
is on the Amplifier Board
2. The Firefinder Brigade board Aux Power O
utput Fuse must be changed to a 3A fuse when using
the 25W and a 4A fuse for the 50W.
