11.9 Paging using 157-0001 Single Zone Paging MIC with BGM

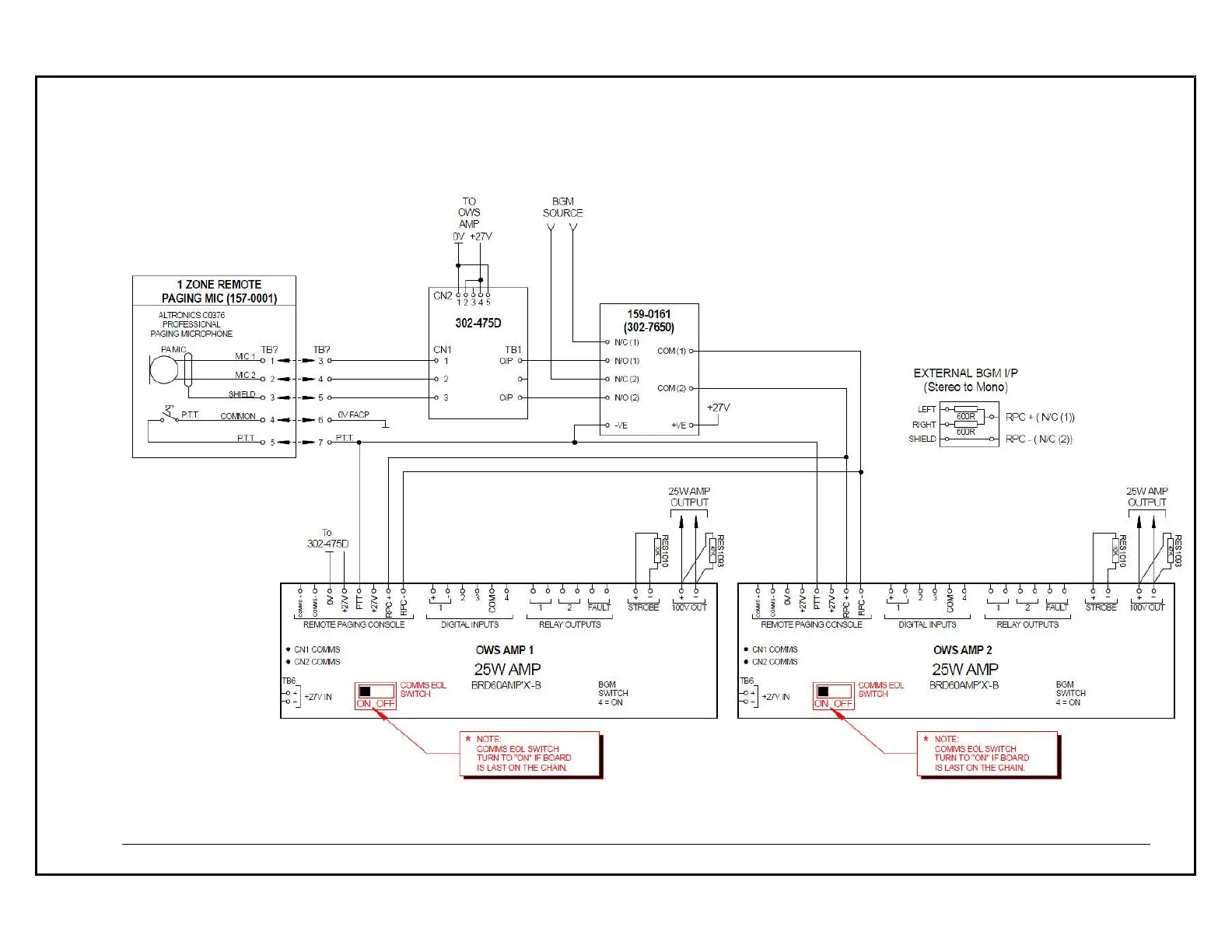

The image below shows one paging MIC wired into two amplifiers with a single BGM input.
Note the use of the 302-475D pre-amp when using the 1 Zone paging MIC. The 302-475D is not fitted in the MIC.
