Ampac EvacU - EWCIE Configuration Tools; FireFinder PLUS ConfigManager

Page 48
11.11 120W, 250W & 500W Interfacing to Evactron LMU4

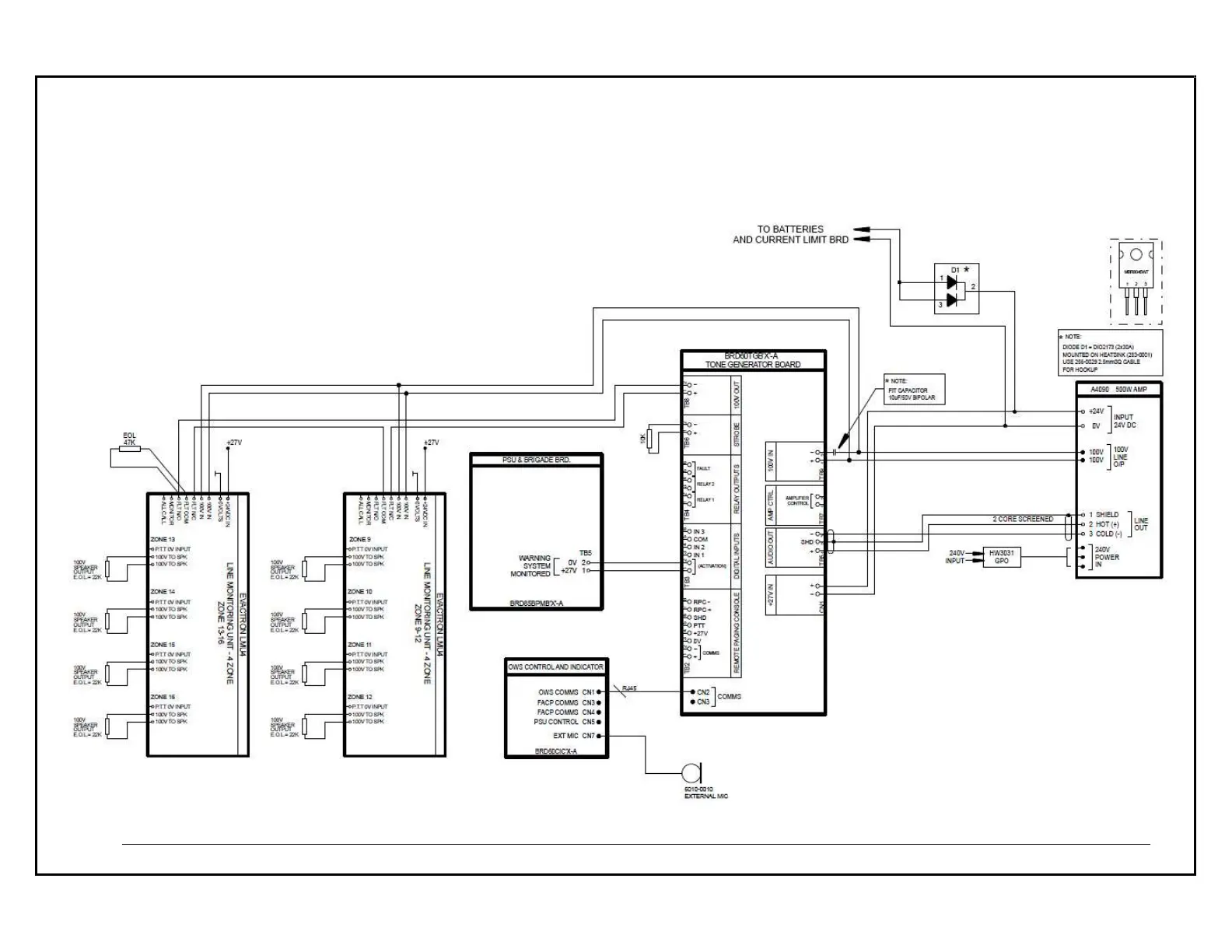

The image below shows how to interface LMU4 to the 120W, 250W and 500W OWS using the Tone Generator board. Note the 6010-0011 Interface is not
required.
