Page 49
EWCIE Technical Manual
11.12 120W, 250W and 500W Interfacing
For interfacing details for the 120W, 250W and 500W amplifiers refer to the applicable wiring drawings
that can be made available from your local Ampac CSO office.

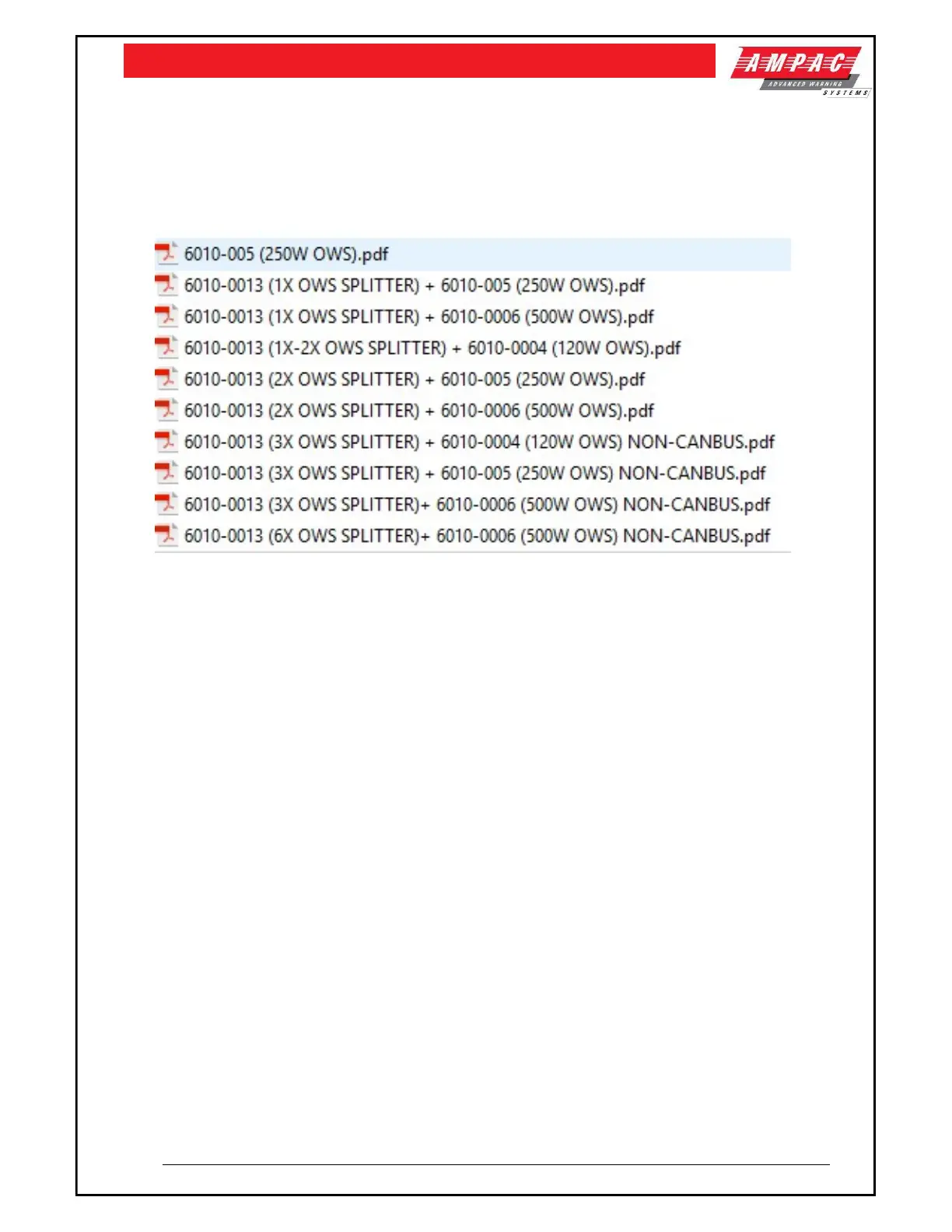

Applicable drawings are as follows:
At least one Audio Line Splitter must be used when a 500W amplifier is installed to allow the full use of
the 500W.
