EWCIE Technical Manual
12.2 LoopMaster
The EWCIE Front Panel is added to the LoopSense (as per any other Add On)

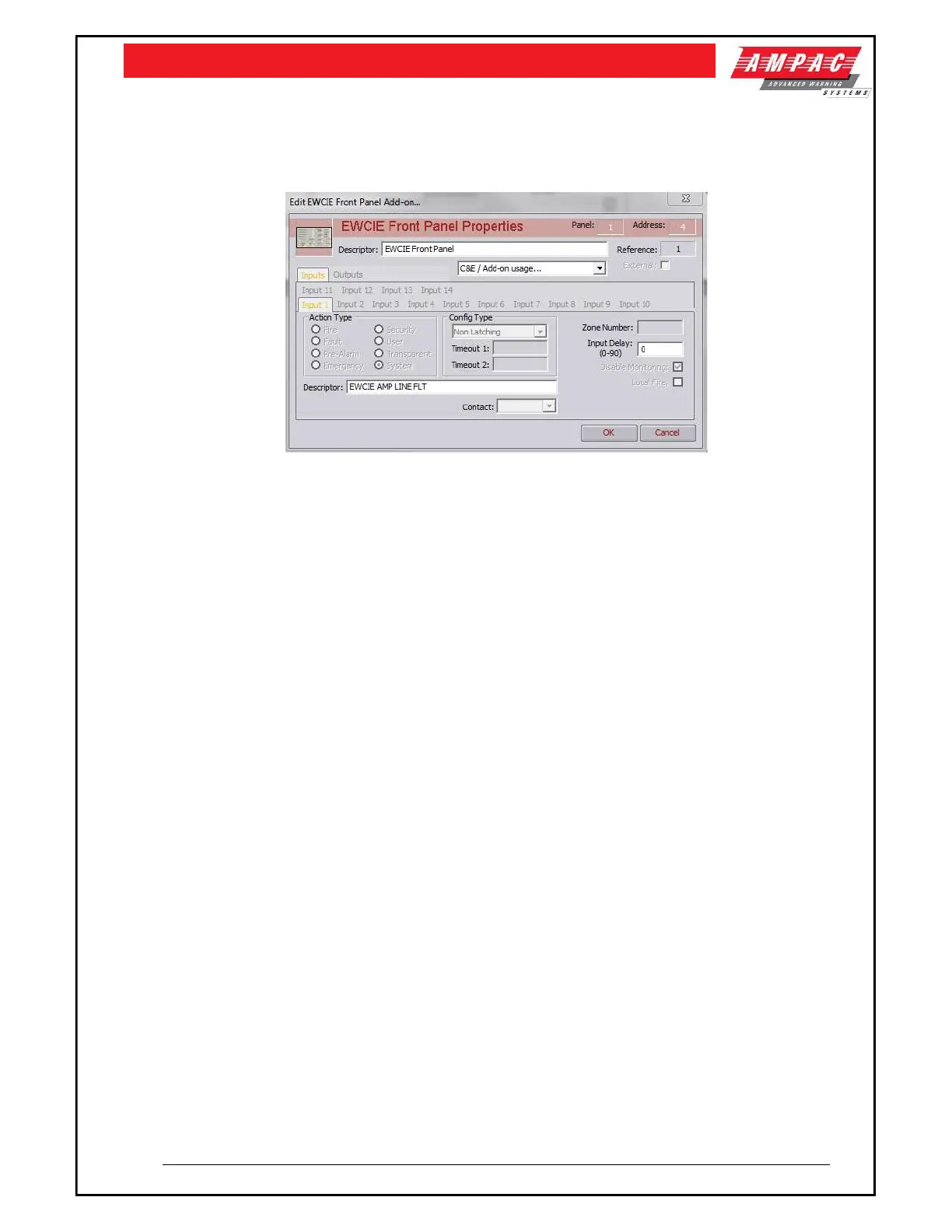

The following dialogue box is displayed to edit the EWCIE.
There are 14 inputs available. These are:
 Amplifier line fault
 Strobe fault
 Microphone fault
 Mains power fault (stand alone EWCIE only)
 Battery missing fault (stand alone EWCIE only)
 Charger fault (stand alone EWCIE only)
 Battery fault (stand alone EWCIE only)
 EWCIE System fault
 EWCIE General fault
 EWCIE power supply fault (stand alone EWCIE only)
 Lockdown message broadcast
 System test message broadcast
 False alam message broadcast
 In test mode
The above inputs are available to use as CAUSES in the Cause and Effect
The inputs marked as fault are reported by LoopSense (and will raise a fault condition on the
LoopSense)
