Page 52
EWCIE Technical Manual
The second way is to use all inputs by setting Dip Switches 5, 6 and 7 to On.
This allows the fire alarm control panel to control when and what signal is broadcast depending on

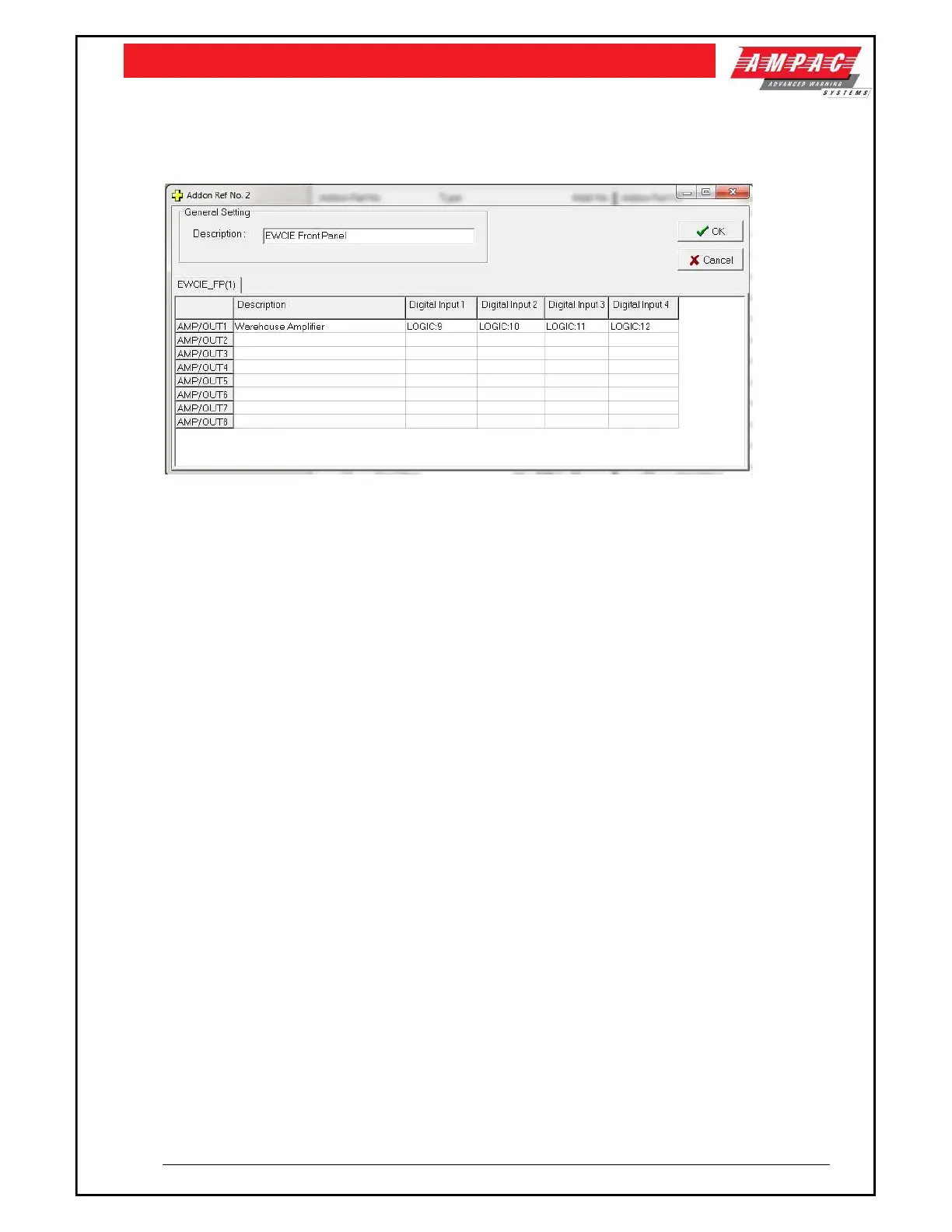

how the inputs have been configured in the EvacUwiz. When the conditions specified in the dialogue
box are met, the EWCIE will broadcast the appropriate indication, message or tone.
All eight amplifers are treated individually. Hence it is possible to implment an ALL CALL type system
or a basic phased evacuation (cascading system) by using functions with timers.
The alert and evac indicators are All Call (when multiple amplifiers are fitted ) as described in section
4.3. If implemeting a basic phased evacuation system, a 32 way indicator will need to added to show
which signals are being broadcast. The same activation conditions used to trigger the amplifier shall
be used to trigger the indicator.
