LOOPSENSE EN54 USER MANUAL

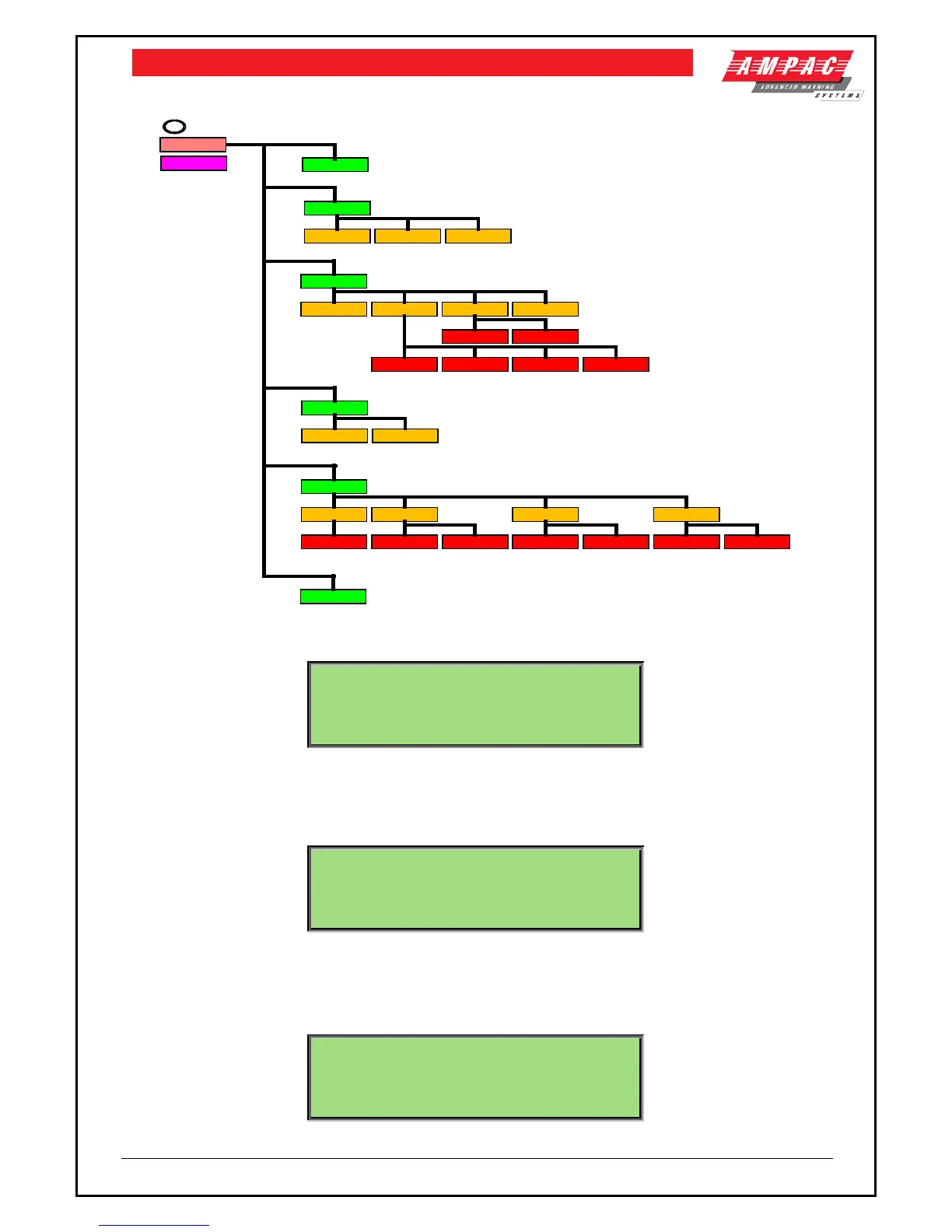

7.6 Menu > Programming
ZONE
1
PROGRAMMING (*)
DEVICE
2
1 2
ADD DELETE
2
EDIT
PANEL
3
1
2
3 4
INPUT OUTPUT
LOOP
DESCRIPTOR
L1
L2
1 2
SUPERVISED O/P
1
2
3
4
RELAY O/P
OPEN COLLECTOR O/P AUXILIARY O/P
2
ZONE
ACTIVATION
SOUNDERS
4
GLOBAL
ACTIVATION
1
LEARN OPTIONS
AUTO LEARN
EXTRA DEVICES
DELETE
DELETE ALL
5
1 2
1
2
MISMATCHED DEVICES
3
MISSING DEVICES
4
RESOLVE
RESOLVE ALL
1 2
LEARN
LEARN ALL
1 2
YES
1
VERSION
6
ENTER PASSWORD
MNO
6
This menu is only accessible at access level 3. If the active access level is less than 3 the user will
be prompted to enter password before allowing access to this menu.
PROGRAMMING MENU
1►ZONE 4|SOUNDERS
2|DEVICE 5|LEARN OPTIONS
3|PANEL 6|VERSION
The programming menu is divided into a series of programming wizards. Each individual
programmable attribute will be displayed on each screen of the wizard and navigation and editing
options are displayed.
If any changes to the configuration are made during the course of the programming wizard a DO
YOU WANT TO SAVE screen is displayed:
CHANGES MADE
DO YOU WANT TO SAVE?
◄BACK 1:YES
If no changes were made a NO CHANGES MADE splash screen will be displayed for a short period
before returning to the menu.
7.6.1 Menu->Programming->Zone
When this is selected the user is presented with the generic zone number selection screen followed
by the EDIT DESCRIPTION screen.
EDIT DESCRIPTOR
<descriptor>_
#CLEAR DEL ▲
◄BACK NEXT►
