AMX TPI-PRO-DVI-2 User Manual

Using G4 Web Control®
138
TPI-PRO-DVI - Instruction Manual
NOTE: This is not the IP address of the Master, but the IP address of the target touch panel. You can find the IP address in the
Wired Ethernet - System Connection > IP Settings section.
9. If you setup a WebControl password on the G4 WebControl page, a G4 Authentication dialog appears in the secondary
browser window (FIG. 88).
10. Enter the Web Control session password into the Session password field (FIG. 86).
This password was previously entered into the Web Control Password field in the G4 Web Control page on the TPI (see
FIG. 84 on page 136).
11. Click OK to send the password to the TPI and begin the session. A confirmation message appears stating "Please wait, Initial
screen loading..."
The secondary window becomes populated with the same G4 page being displayed on the target G4 panel.
A small circle appears within the on-screen G4 panel page and corresponds to the location of the mouse cursor.
A left-mouse click on the computer-displayed panel page equates to an actual touch on the target G4 panel page.

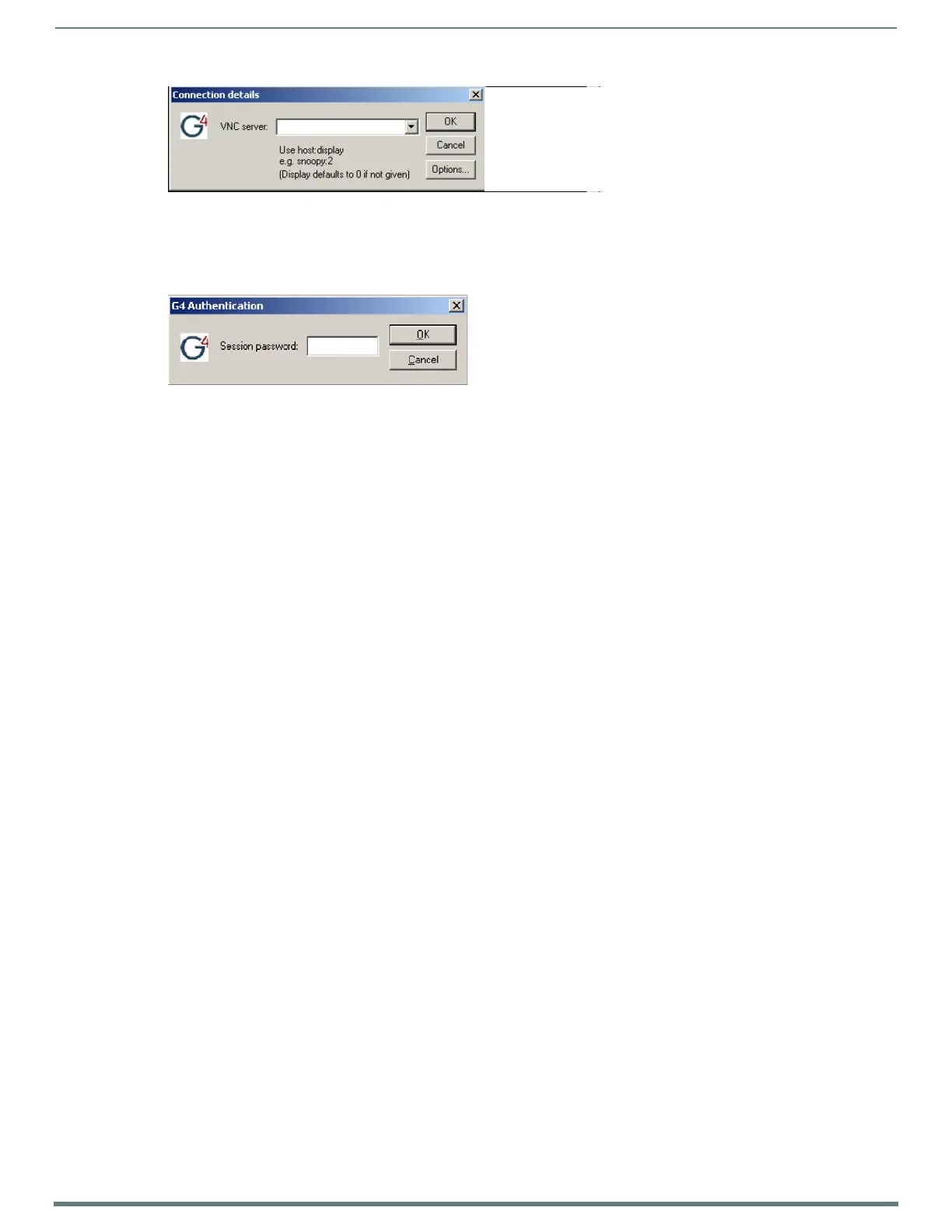

FIG. 87
Connection Details dialog
FIG. 88 G4 Authentication dialog
