Cascading Hubs
80
UDM-0808-SIG, UDM-RX02N and UDM-ABB-8-SIG Operation /Reference Guide
The audio for these sources, in addition to being sent down the Cat 5 will also be output on their
respective outputs on the Audio Breakout Box.
In the example shown in FIG. 70:
The UDM-0808-SIG has been commanded to route Source 1 to Outputs 1 through 3.
The audio outputs on the Audio Breakout Box automatically reflect this change so that the audio
will be sent through the distribution amplifier to the appropriate locations.
The UDM-ABB-8-SIG can be used in a cascade of multiple UDM-0808-SIGs. However, since there are no
cascade outputs on the Audio Breakout Box, it will be the last device in the cascade chain.

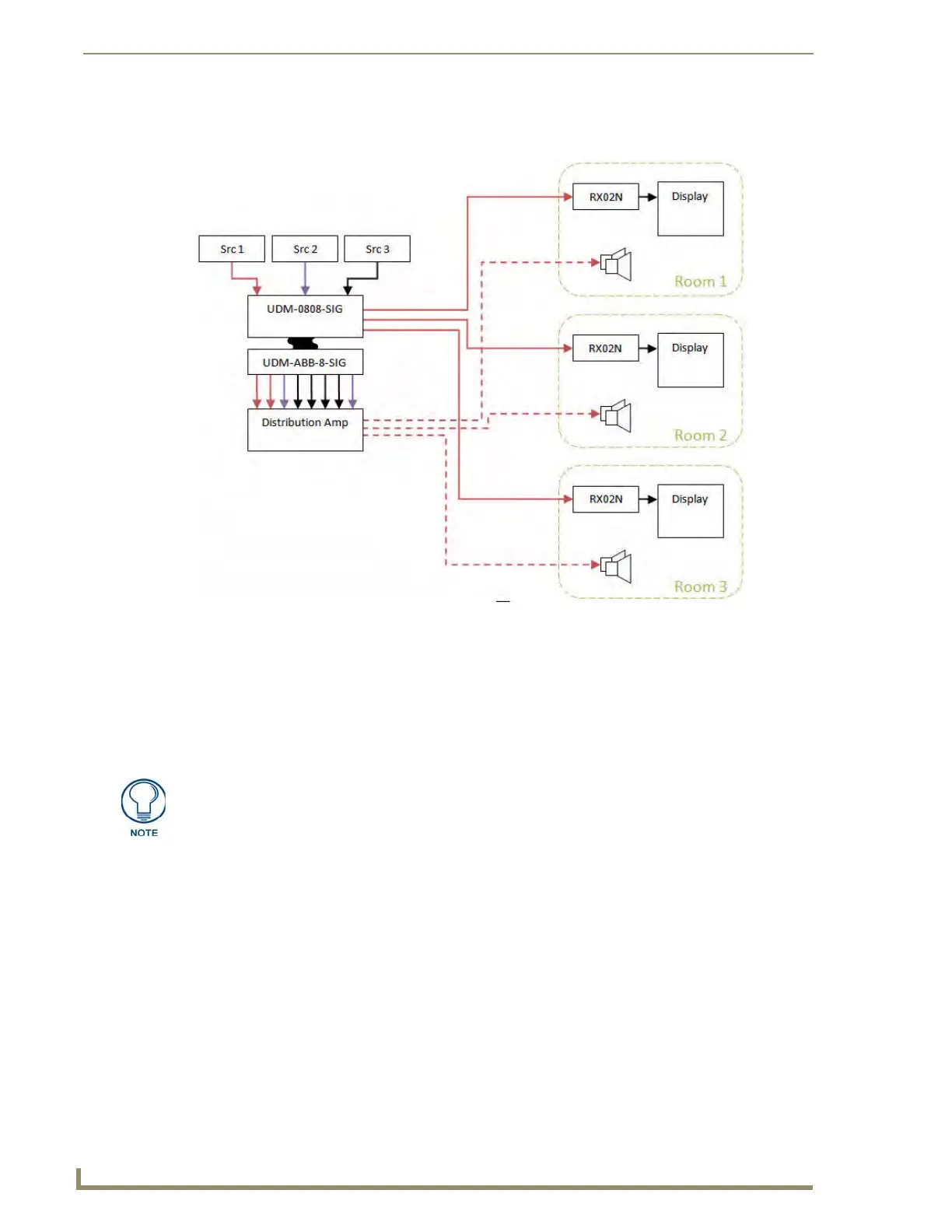

FIG. 70 UDM-ABB-8-SIG Audio Breakout Box Configuration 2
There are no commands required to control the Audio Breakout Box. Once the
cascade port is configured for use with the Audio Breakout Box, no other commands
are required to operate the Audio Breakout Box. In this regard, everything is handled
inside the UDM-0808-SIG. Refer to the UDM-ABB-8-SIG Audio Breakout Box section
on page 71 for details.
