Layout of Screen
ACU-RITE’s Wizard 411 readout provides application-specific features
that allows you to obtain the most productivity from your manual
machine tools.

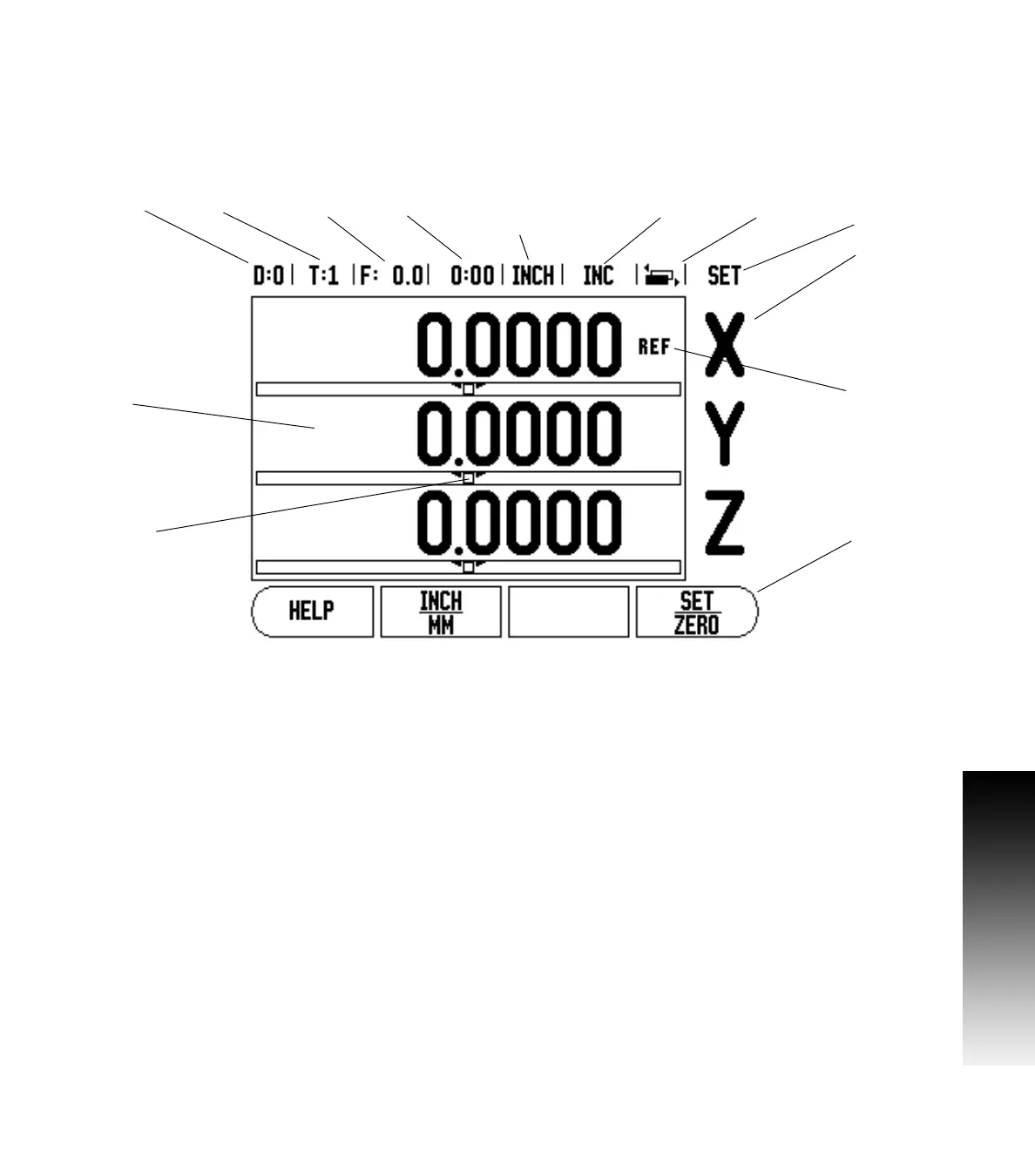

 Status Bar - This displays the current datum, tool, feed rate, job
clock time, unit of measure, operating mode status, page indicator,
and set/zero. See Job Setup for details on setting up the Status Bar
parameters.
 Display Area - Indicates the current position of each axis. Also
shows forms, fields, instruction boxes, error messages and help
topics.
 Axis Labels - Indicates axis for corresponding axis key.
 Ref Symbols - Indicates current reference mark status.
 Soft key Labels - Indicates the various milling or turning functions.
Status Bar Symbols
Datum Tool Feed Rate Job Clock Unit of
Measure
Operating
Modes
Page
Indicator Set/Zero
Axis Labels
Display
Area
Ref. Symbol
Near Zero
Warning (In
Distance-
To-Go mode
only)
Soft key
Labels
