Anilam Wizard 411 - DRO Mounting with Arm; DRO Mounting with Base

Wizard 411 33
II – 3 Dimensions

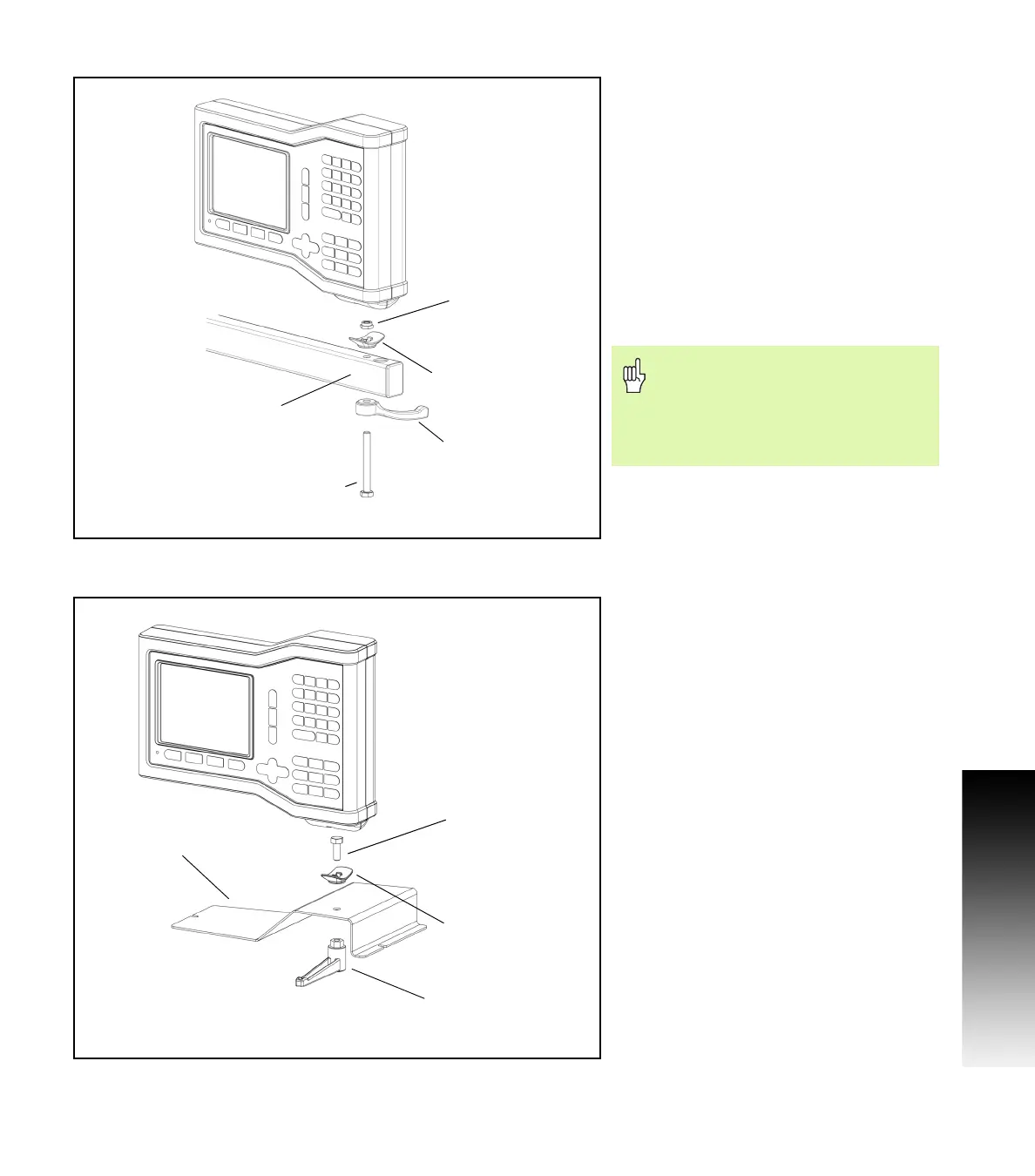

DRO mounting with arm (reference information)
DRO mounting with base
M8 x 70mm Mounting bolt
(included with DRO)
Handle
(included with DRO)
Read out mounting arm
options (not included)
M8 Lock nut
(included with DRO)
Tilt / Swivel Feature
(included with DRO)
Tilt / Swivel Feature
(included with DRO)
M8 Tightening handle
(included with Mounting
base option)
M8 x 20mm Hex Head
Screw (included with
Mounting base option)
Mounting base op-
tion accessory (not
included with DRO)
The DRO mounting base
incorporates a slot feature that
prevents the lock nut from turning.
Pre-attach the mounting bolt and
slip it into the base. Secure the
DRO by tightening the handle.
