Wizard 411 13
I – 2 Milling Specific Operations
1/2 Hard Key
The 1/2 hard key is used to find the centerline (or midpoint) between
two locations along a selected axis of a workpiece. This can be
performed in either Actual Value or Distance-To-Go mode.
Circle and Linear Pattern Hard Keys
This section describes the hole pattern functions for Circle and Linear
patterns.
Press the CIRCLE or LINEAR PATTERN hard key to access the Pattern
function then enter the required data. Wizard 411 then calculates the
positions of all the holes and displays the pattern graphically on the
screen.
The View Graphic enables verification of the hole pattern before you
start machining. It is also useful when: selecting holes directly,
executing holes separately, and skipping holes.

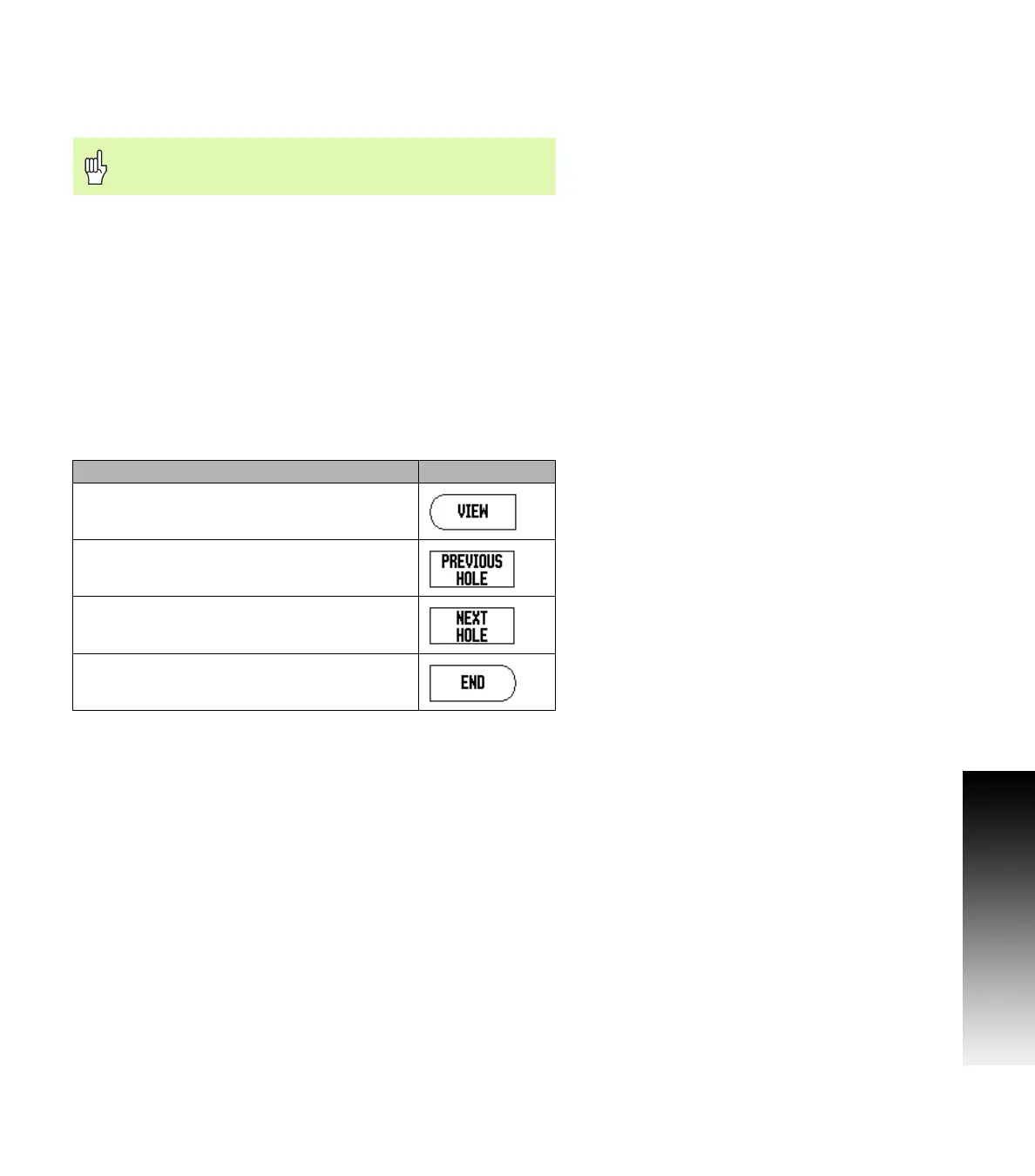

Functions for milling patterns
This feature will change datum locations when in Actual
Value mode.
Function Soft key
Press this to see the layout of the current
pattern.
Press to go to previous hole.
Press to manually advance to the next hole.
Press to end drilling.
