SECTION 5 BASIC OPERATION PROCEDURE
5-4
Execute automatic calibration
Wait after switching on the power supply of the
machine (warm up period) till the internal temperature
becomes stable. This period is approximately 10
minutes.
After warm up, execute automatic calibration.
CAL
Press Shift key then 0 key.
Select All Cal from the menu displayed on the display.

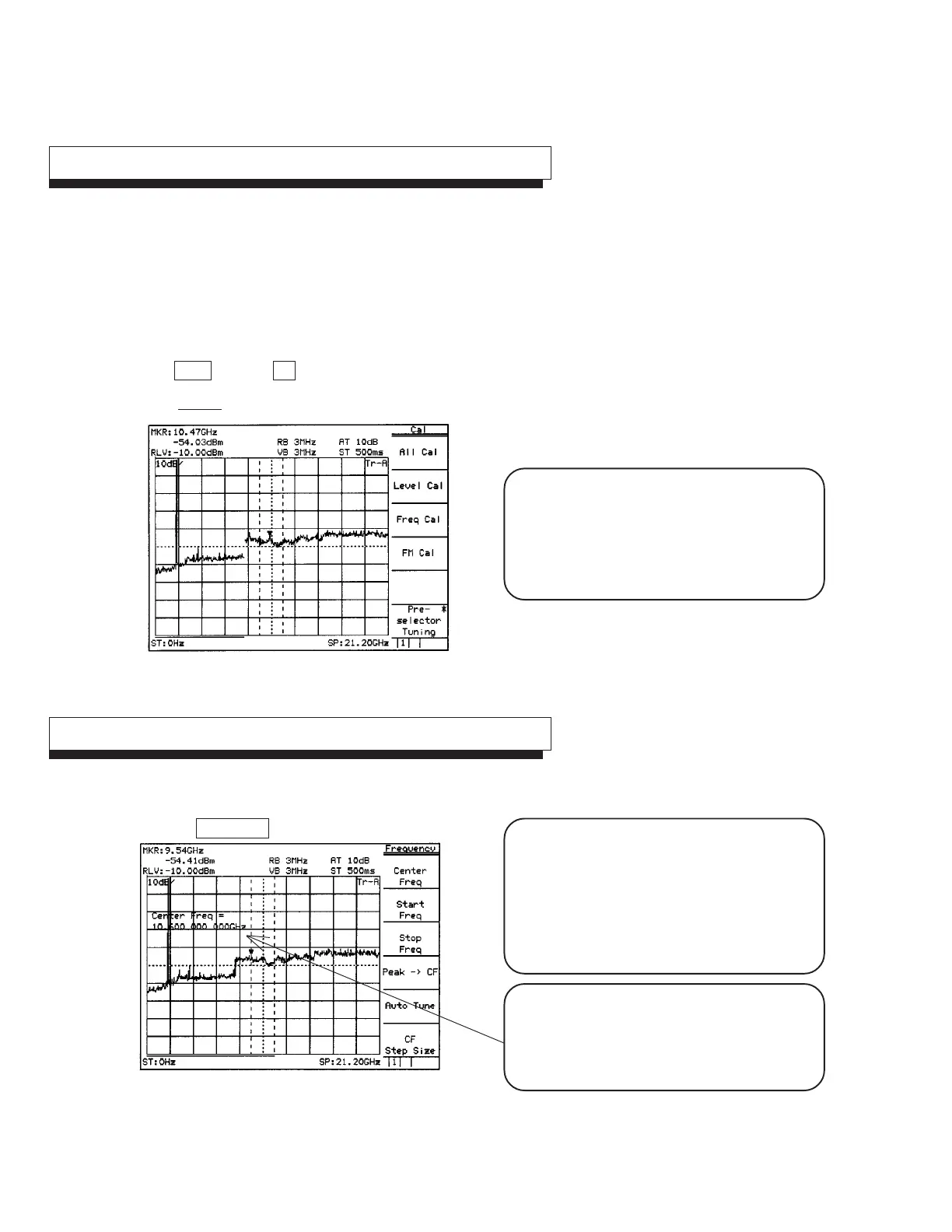

Fig. 5-2
Press Frequency key.
Fig. 5-3
Automatic Calibration is carried out by using an
internal source without need for any external cable
connection.
See "Detailed Operation Instructions" for detail
information about contents of calibration.
When pressing Frequency, Span, Amplitude or
Coupled Function key (s) which is used frequently,
Center Frequency, Span, Reference Level, RBW
or VBW function is selected and numeric value
for the function can be entered into Entry area.
This reduce key operation times.
This display section is called Entry area. Selecting
the menu displays the current set value of the
parameter. The set value can be changed by
entering data in Entry area.
Set the signal to the center of the screen
To Next Page
