Anritsu MS2665C - Amplitude Display Linearity

SECTION 6 PERFORMANCE TESTS
6-29
Amplitude display linearity
Test the error per vertical graduation for the LOG display. For the LOG display linearity, test that the graduation
is equal to the logarithm (dB) of the input signal level.
Input the correct level signal to the RF Input via an external attenuator and calculate the error from the attenuation
of the attenuator and the ∆ marker reading at the trace waveform peak.
(1) Specifications
• Amplitude display linearity: After automatic calibration
LOG: ±2.5 dB for 0 to –90 dB
±1.5 dB for 0 to –85 dB
±1 dB for 0 to –70 dB
±0.4 dB for 0 to –20 dB
(2) Test instruments
• Signal generator: MG3633A
• Attenuator: MN510C

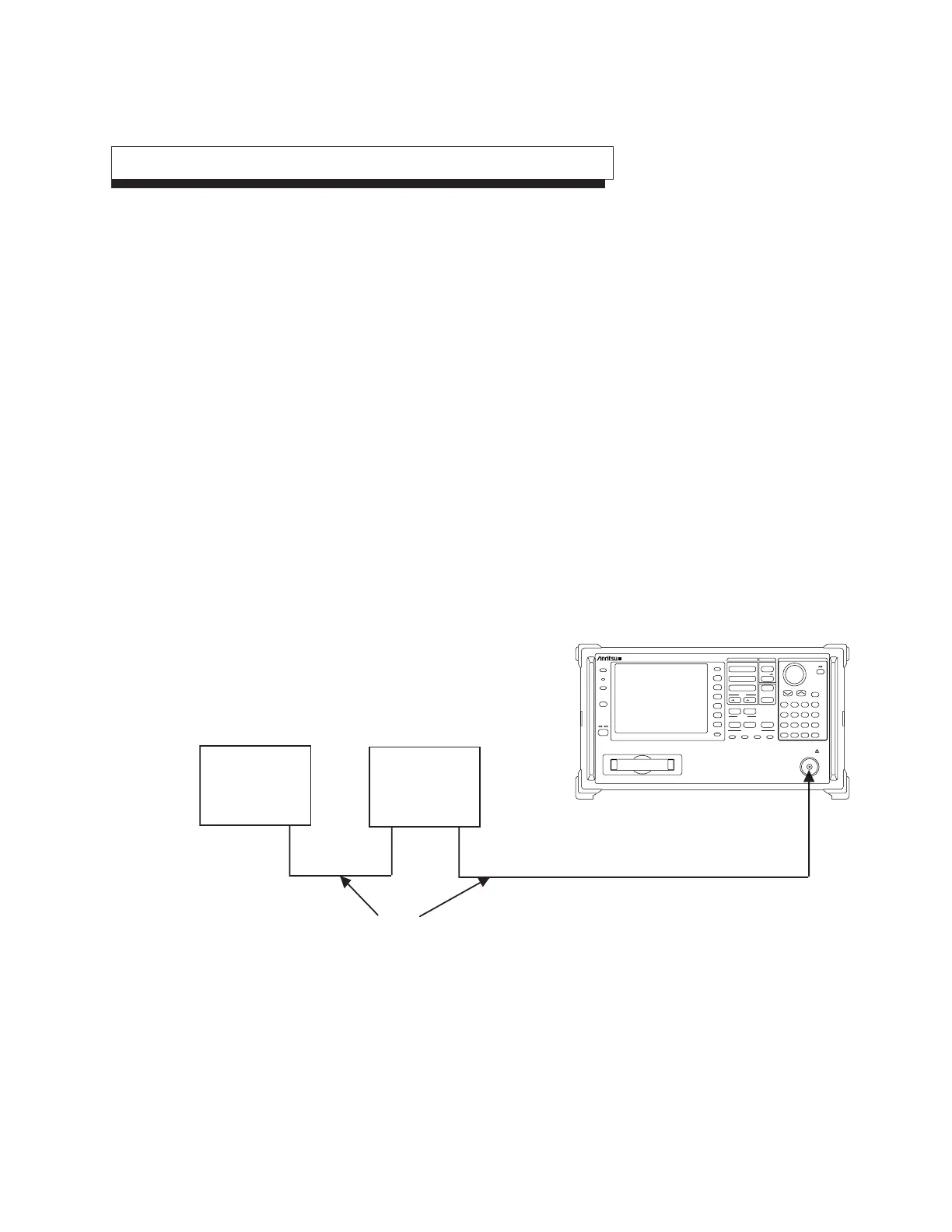

(3) Setup
Signal generator
Attenuator
INPUT
RF Input
RF OUTPUT
OUTPUT
MG3633A
SG
MN510C
ATT
Coaxial cable (N-type connector)
Amplitude Display Linearity Test
