SECTION 6 PERFORMANCE TESTS
6-6
Performance Test
The warm-up time depends on the test item. For test item other than oscillator frequency, warm-up the equipment
for at least for thirty minutes and test the performance after the MS2665C/67C/68C stabilizes completely.
Also, begin measurement after taking the warm-up time of the calibration instrument into full consideration.
In addition, the test must be conducted at room temperature; there must be little AC power supply voltage
fluctuation, and no noise, vibration, dust, humidity, etc.
In case of MS2667C/68C, if coaxial cable for the performance test is N type connector, connect the coaxial
adaptor 34AKNF50 (DC to 20 GHz, sold separately) to the MS2667C/68C.
Stby
Shift
On
Preset
Menu On/Off
More
RBW VBW Sweep Time Atten
Local
Remote
F1
F2
F3
F4
F5
F6
Display
Coupled Function
MS2667C
Spectrum Analyzer
9kHz–40GHz
PTA Define
Memory Card
Enter
Hold
1st Local
Output
µv
µsec
EntryMarkerFreq/Ampl
7
Copy Cont
Copy
8 9 GHz
CE
4 5 6 MHz
BS
+/–
3
mV
msec
dBm
dB
V
sec
Cal Interface Mem Card
Sound System Title
1 2 kHz
0 • Hz
A/B.A/BG A/Time
Save
Recall
Amplitude
Span
Frequency
Measure
A.B Time Trig/Gate
Peak
Continuous
CF RLV Single
Marker
Peak
Search
Multi Mkr
Marker
User
RF Input 50Ω
+30dBm
0V DC Max

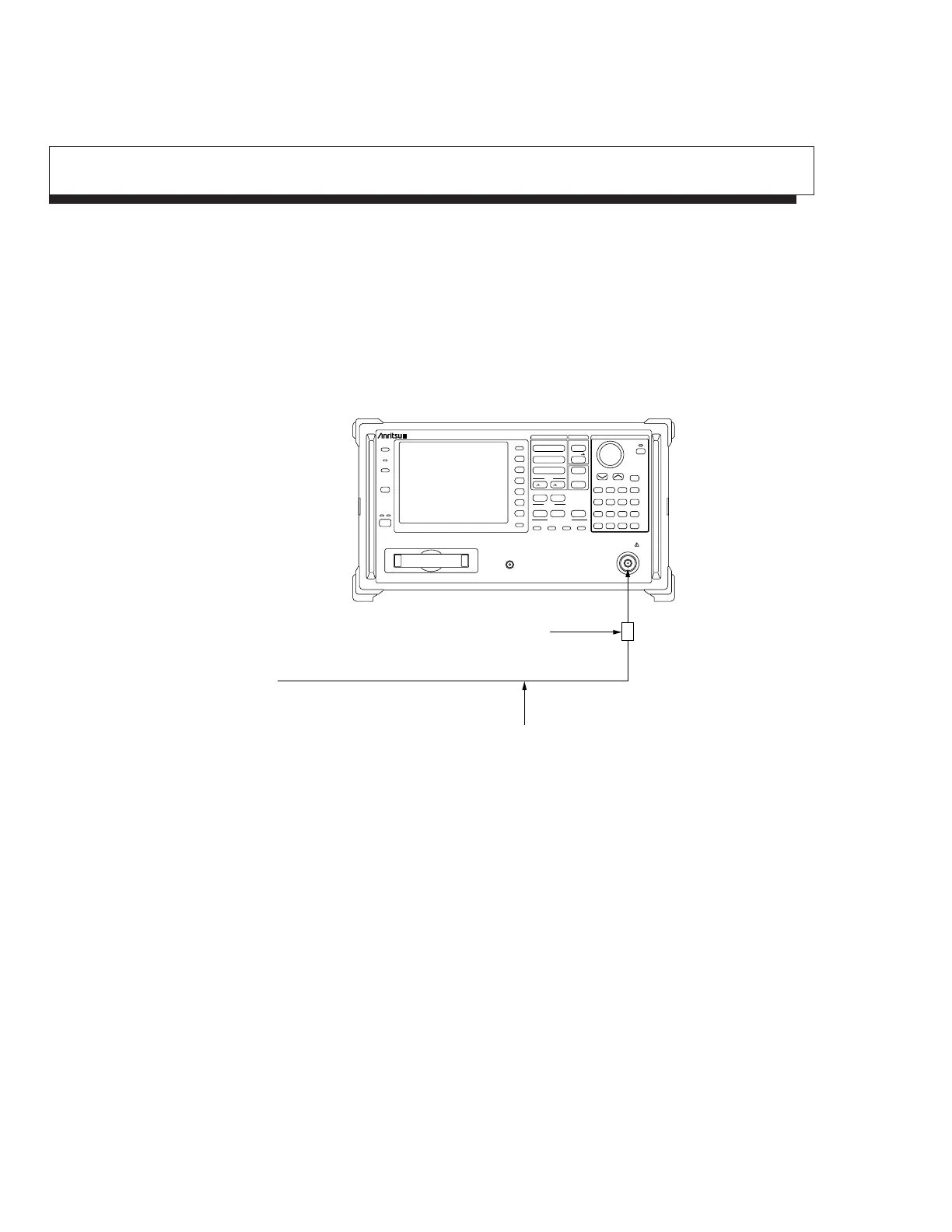

Coaxial adaptor
