Sweep time and time span accuracy
(1) Specifications
• Sweep time accuracy: ±15 % (20 ms to 100 s)
±25 % (110 s to 1000 s)
• Time span accuracy: ±1 % (digital zero span mode)
(2) Test instruments
• Signal generator: MG3633A
69269A
(3) Setup

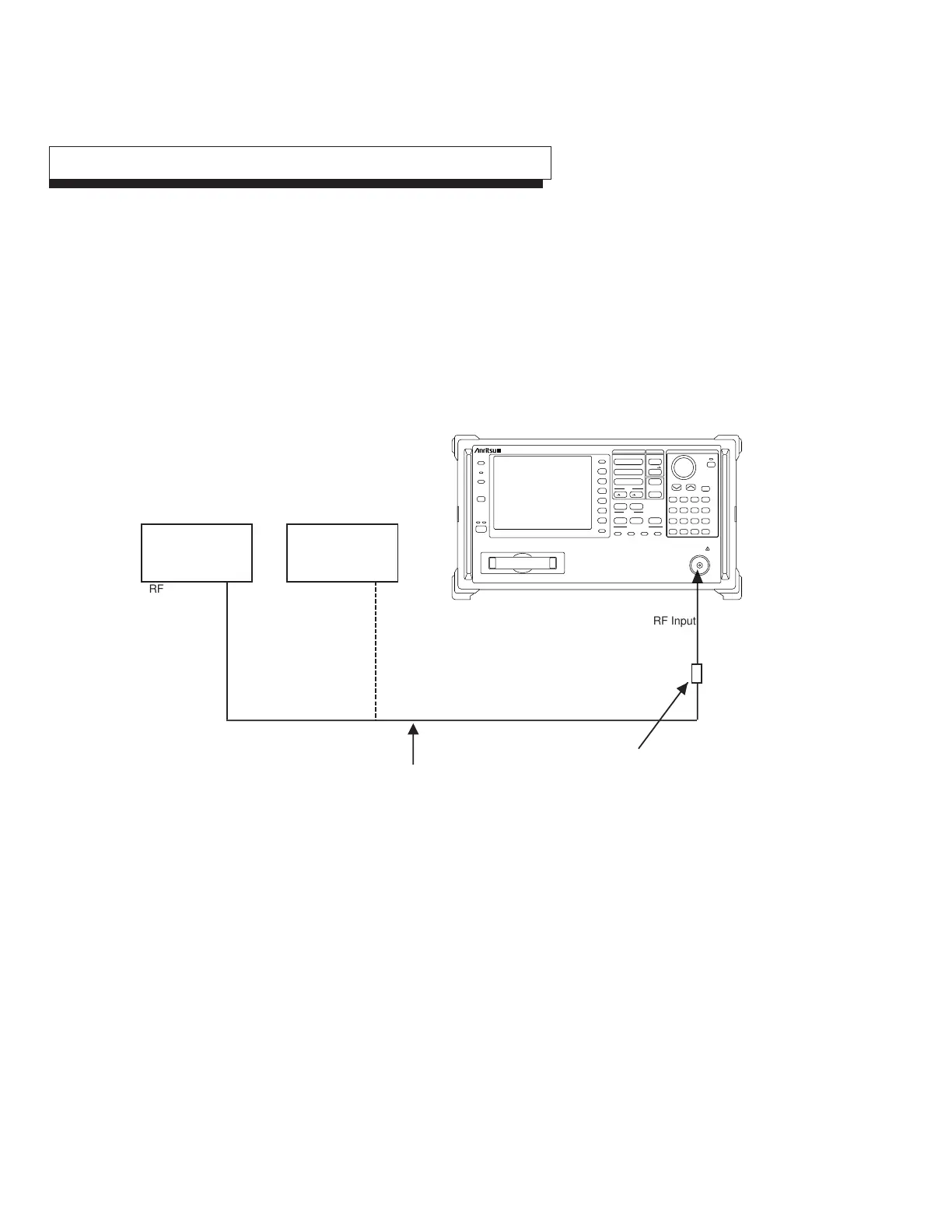

Signal generator
MG3633A
Coaxial cable
(N-type connector: When MG3633A is used)
(SMA connector: When 69269A is used)
69269A
AA
AA
AA
AA
AA
RF Input
RF OUTPUT
RF OUTPUT
Coaxial adaptor
(N-P·SMA-J : Only when 69269A is used)
Sweep Time and Time Span Accuracy
