Anritsu MS2665C - 6.5 Test group 3

SECTION 6 PERFORMANCE TESTS
6-27
Frequency measurement accuracy
Set the marker point to the position at least 20 dB higher than the noise (or adjacent interference signal) to
operate the built-in counter with the higher-S/N signal, and test the frequency measurement accuracy using
Count On mode.
(1) Specifications
• Accuracy: ≤ (Readout frequency × reference oscillator accuracy ± (1 count))
• Resolution: 1 Hz, 10 Hz, 100 Hz, 1 kHz
(2) Test instrument
• Signal generator: 69269A
• Frequency standard
(3) Setup
REF
IN
OUTPUT 500 MHz
RF Input
Coaxial adaptor
(N-PÆSMA-J)
Coaxial cable
(SMA connector)
Coaxial cable
(BNC connector)
69269A
Frequency standard

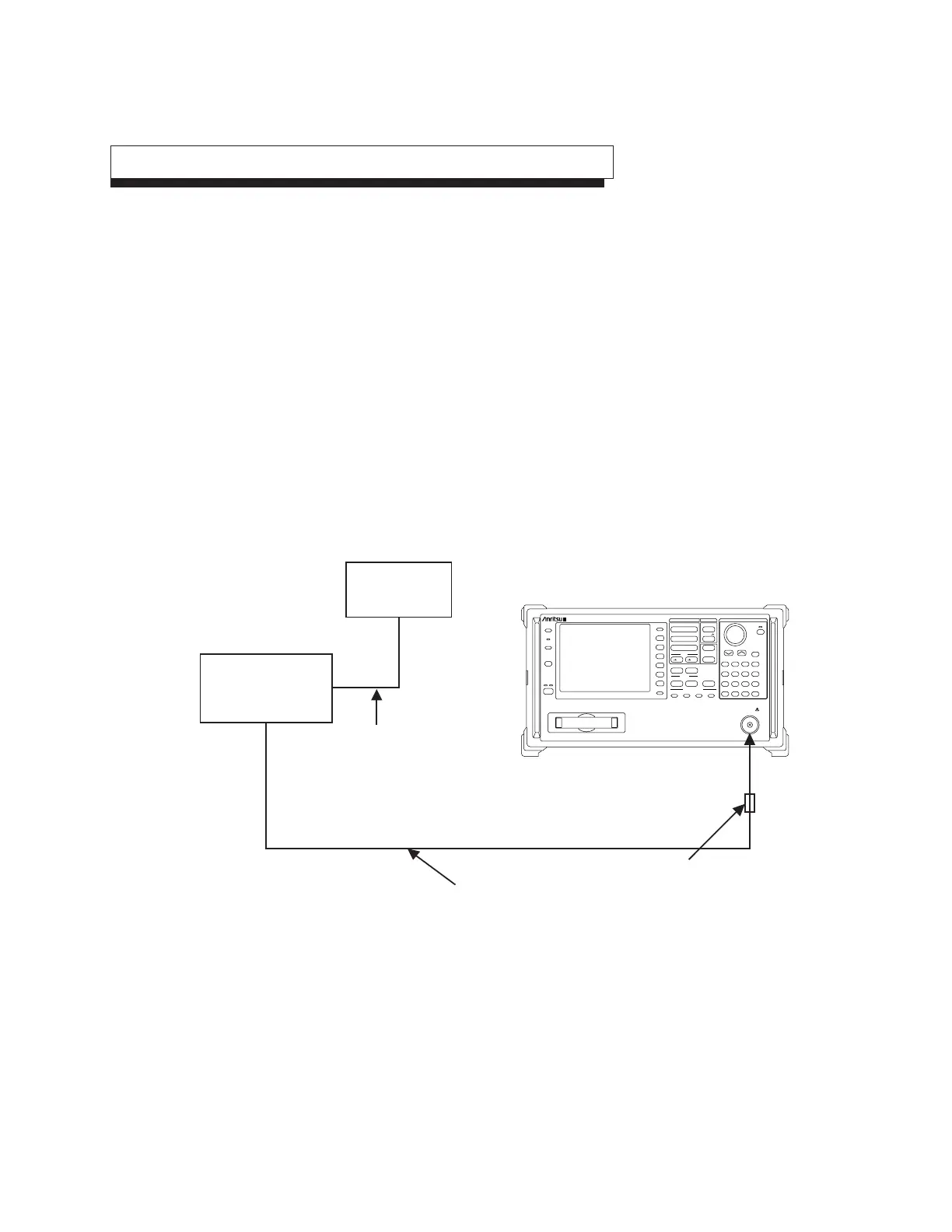

Frequency Measurement Accuracy Test
