Anritsu MS2665C - Frequency Span Readout Accuracy

SECTION 6 PERFORMANCE TESTS
6-14
Frequency span readout accuracy
Using the setup shown in the figure below, set the frequencies corresponding the 1st and 9th division from the
left side of the screen scale with the SG. The frequency difference between the peak levels at the 1st and 9th
divisions is equal to the frequency span×0.8.
(1) Specifications
Frequency span readout accuracy
• MS2665C: ±2.5 % (span ≥10 kHz × N)
• MS2667C/68C: ±5 % (span ≥10 kHz × N)
(N is harmonic order at mixer)
(2) Test instrument
• Synthesized signal generator: MG3633A
69269A

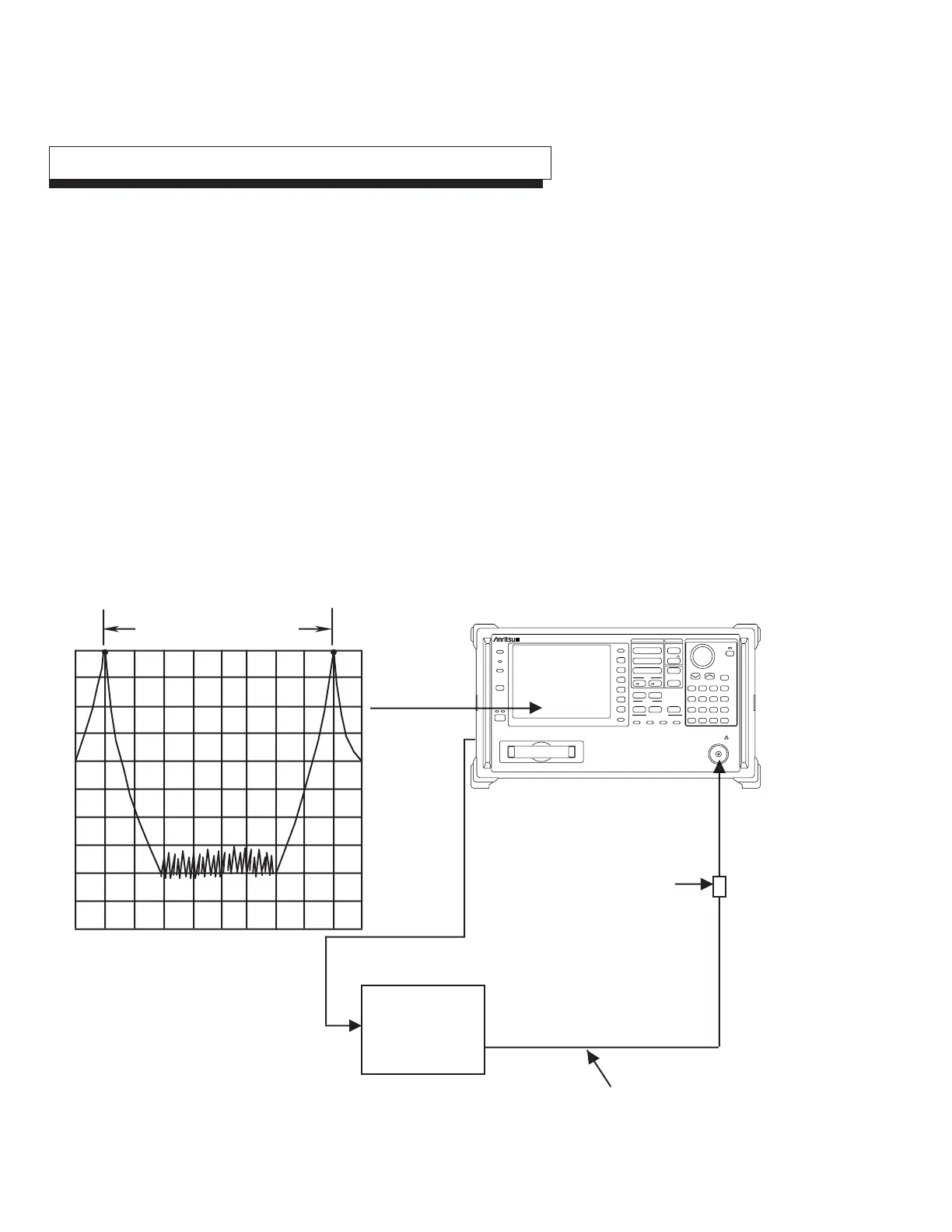

(3) Setup
10 MHzSTD
Buff Out
REF IN
CF : 1.000 000GHz Span : 20kHz
Synthesized signal
generator
RF Input
RF OUTPUT
SG
Measure frequency
difference with SG
Coaxial adaptor
(N-P • SMA-J :
Only when 69269A is
used)
Coaxial adaptor
(N-type connector: When MG3633A is use)
(SMA connector: When 69269A is use)
(Note)
Stby
Shift
On
Preset
Menu On/Off
More
RBW VBW Sweep Time Atten
Local
Remote
F1
F2
F3
F4
F5
F6
Display
Coupled Function
MS2665C
Spectrum Analyzer
9kHz–21.2GHz
PTA Define
Memory Card
Enter
Hold
µv
µsec
EntryMarkerFreq/Ampl
7
Copy Cont
Copy
8 9 GHz
CE
4 5 6 MHz
BS
+/–
3
mV
msec
dBm
dB
V
sec
Cal Interface Mem Card
Sound System Title
1 2 kHz
0 • Hz
A/B.A/BG A/Time
Save
Recall
Amplitude
Span
Frequency
Measure
A.B Time Trig/Gate
Peak
Continuous
CF RLV Single
Marker
Peak
Search
Multi Mkr
Marker
User
RF Input 50Ω
+30dBm
0V DC Max
