Anritsu MS2665C - Page 77

SECTION 4 SOFT-KEY MENU
4-14
Measure
*
Frequency
Count
*
Noise
Measure
Off
*
C/N Ratio
Measure
*
Setup
Channel *
Power
Measure
|1|
| |
Measure
Factor
Correction
0.00dB

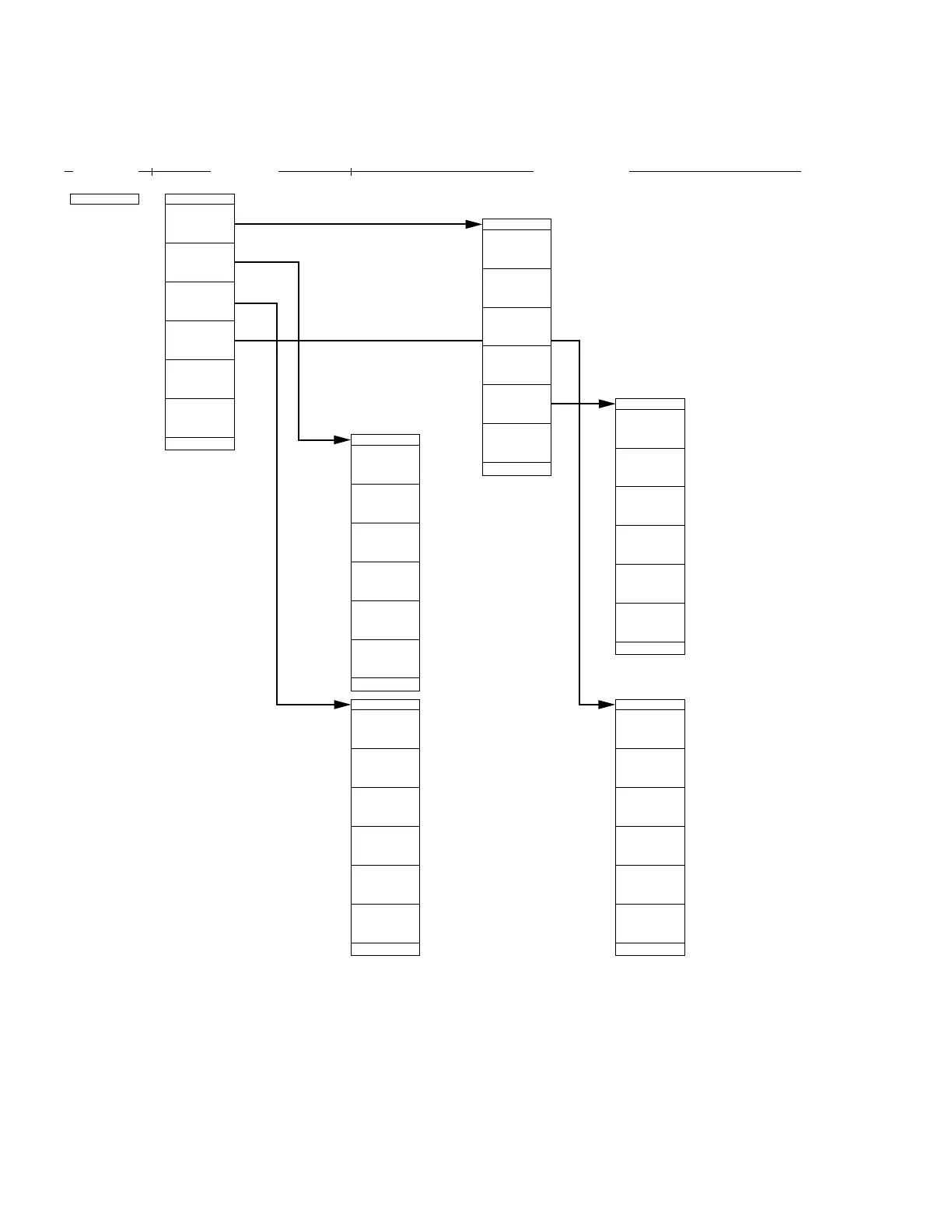

MS2665C Menu Tree (7/25)
Panel Key
Top menu Lower menues
100Hz
10Hz
1Hz
return
CountSetup
Count On
Count Off
return
Freq Count
Meas On
Off
return
Noise Meas
Meas On
Off
return
C/N Meas
Meas On
Off
return
Ch Power
#1
#2
#3
#4
1kHz
Resolution
• Perform measurement according to various applications:
#1 Frequency Count: Measure marker frequency with a high resolution.
Select resolution from 1 kHz, 100 Hz, 10 Hz and 1 Hz.
#2 Noise Measure: Measure the noise power within zone marker.
#3 C/N Ratio Measure:
Measure the ratio of carrier signal and noise power. Reference marker of the delta
marker shall be set to the carrier, and marker's zone width specifies the power measured.
#4 Channel Power Measure: Power with in the band indicated by zone marker is measured. It is possible to set an
arbitrary calibration value.
