Option Verification 4-4 Option 29, Power Meter Level Accuracy
S3xxE MM PN: 10580-00253 Rev. J 4-5
4-4 Option 29, Power Meter Level Accuracy
The following test verifies the level accuracy of the S332E or S362E Power Meter for Site Masters with
Option 29 installed.
Equipment Required
• Anritsu MG3692X Synthesized Signal Source
• Anritsu ML2438A Dual Channel Power Meter
• Anritsu MA2442D High Accuracy Power Sensors (2)
• Anritsu 34NN50A 50 ohm Adapter
• Anritsu 34RKNF50 50 ohm Adapter
• Anritsu 15NN50-1.5C RF Coaxial Cable
• Aeroflex/Weinschel 1870A Power Splitter
• Aeroflex/Weinschel 44-10 10 dB Fixed Attenuator
Setup

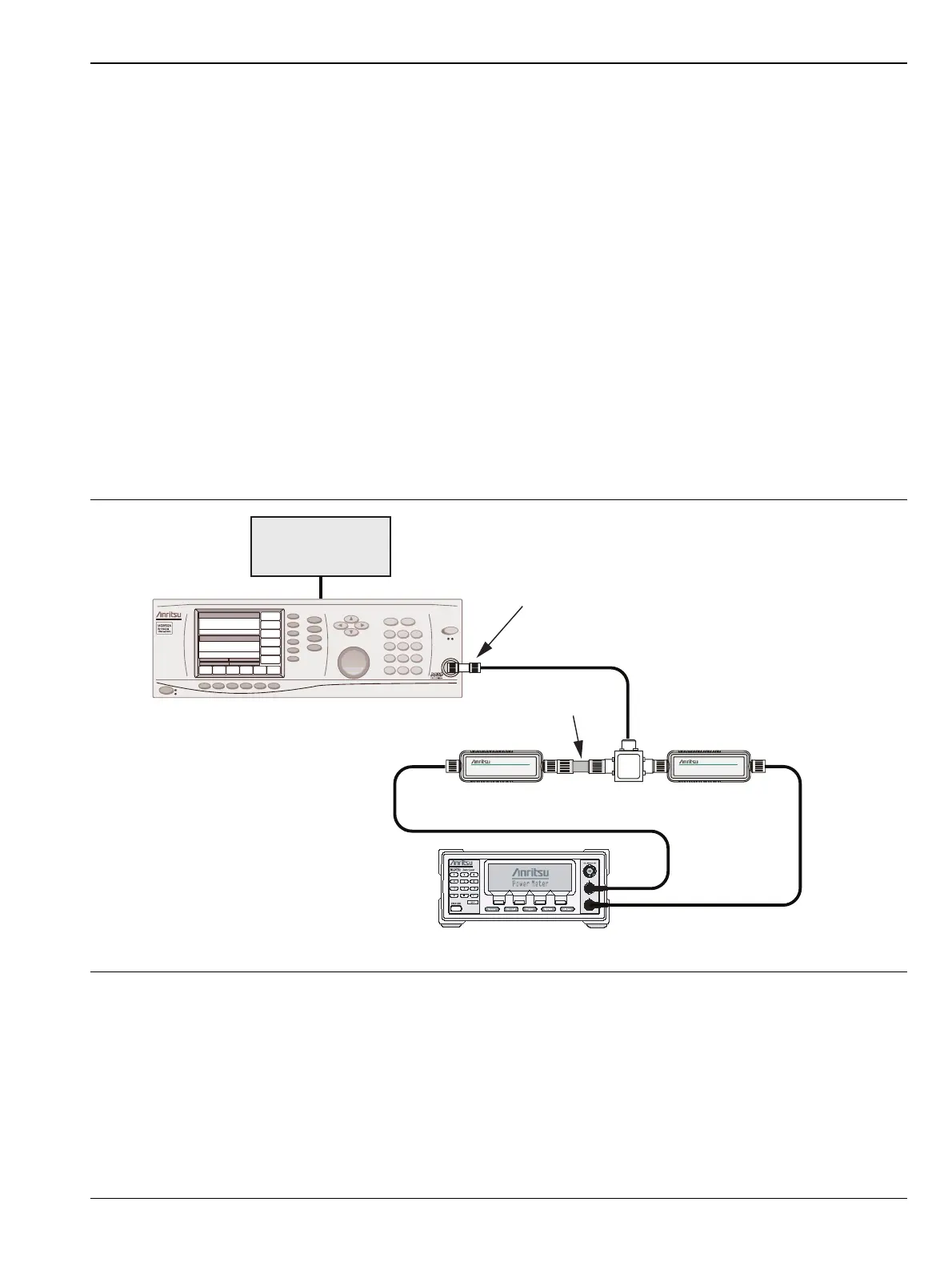

Figure 4-1. Power Meter Measurement Accuracy
MG3692x Synthesized Signal Generator
10 MHz
Reference
ML2438A Power Meter
MA2442D
Sensor A
MA2442D
Sensor B
1870A
Power Splitter
10 dB Fixed
Attenuator
Adapter
A
B
