5-2 Battery Pack Removal and Replacement Battery Information
5-2 PN: 10580-00253 Rev. J S3xxE MM
5-2 Battery Pack Removal and Replacement
This section provides instructions for the removal and replacement of the Site Master battery pack.
1. Locate the battery access door illustrated in Figure 5-1.
2. Place a finger in the battery access door notch and push the door latch down towards the bottom of the
instrument, as illustrated in Figure 5-2.
3. Remove the battery access door, the top will pop out a bit and then pull it up out of the access enclosure.
Note
Many of the procedures in this section are generic, and apply to many similar instruments. Photos
and illustrations used are representative and may show instruments other than the Site Master.

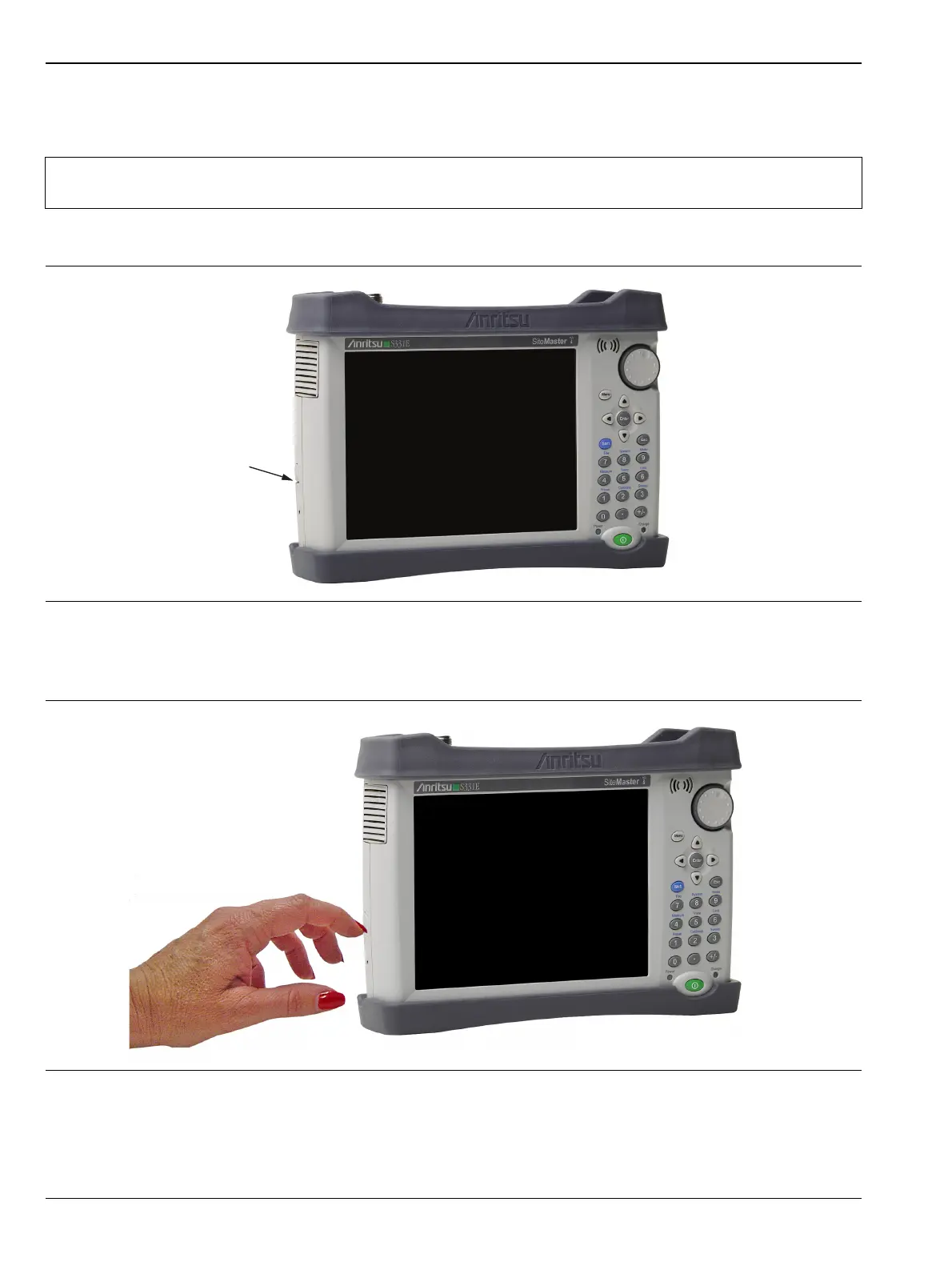

Figure 5-1. Battery Access Door Location and Finger Notch
Figure 5-2. Opening the Battery Access Door
Battery Door
Location and
Finger Notch
