Battery Information 5-2 Battery Pack Removal and Replacement
S3xxE MM PN: 10580-00253 Rev. J 5-3
4. With the battery access door completely removed, grasp the battery lanyard and pull the battery straight
out of the unit, as illustrated in Figure 5-3.
5. Replacement is the opposite of removal. Note the orientation of the battery contacts, and be sure to insert
the battery with the contacts facing the front of the unit, refer to Figure 5-3 and Figure 5-4.

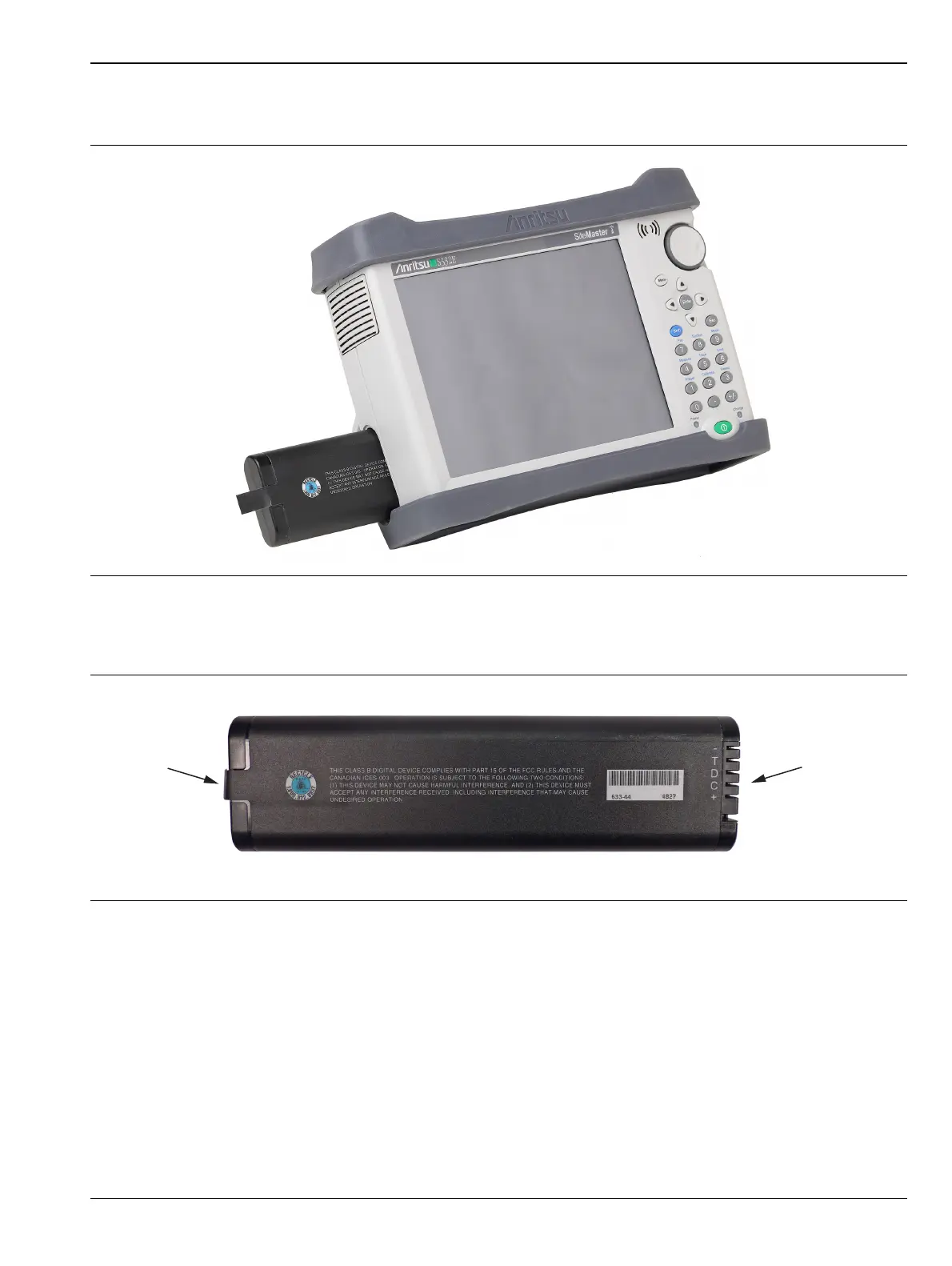

Figure 5-3. Removing the Battery
Figure 5-4. Battery Contacts and Orientation
Battery
Lanyard
Battery
Contacts
Insert battery with this side facing the front of the unit.
