Installation GT3000
30 IMGT30017EN
3A.3.3 Auxiliaries power supplies
Control boards SVGT105- 960K/J
SVGT200-940Y with suffix 10
units need an auxiliary power supply (230V 50/60HZ 0,5A) for
control board. Two fuses (F1, F3 4A-500V) are installed on
the power board.
Fan SVGT125F/Y-940M/Y and SVGt105-960K/J units need an
auxiliary power supply for fans. See Table 2A-7 for details.
SVGT292F/Y-SVGT940M/Y employ a voltage change jumper to feed the auxiliary fan correctly. Move the jumper to the appropriate position
according to the power supply voltage (Figure A 4.):
WARNING
Verify that the auxiliary power is connected to the correct input voltage setting before powering up
the drive.
380Vac mains pos. 1 (terminals 0 - 380) Default
400-415Vac mains pos. 2 (terminals 0 - 415)
440Vac mains pos. 3 (terminals 0 - 440)
460Vac mains pos. 4 (terminals 0 - 460)
500Vac mains pos. 5 (terminals 0 - 500)
F1 – F2 – F3 for all GT3000 are 2A fuses

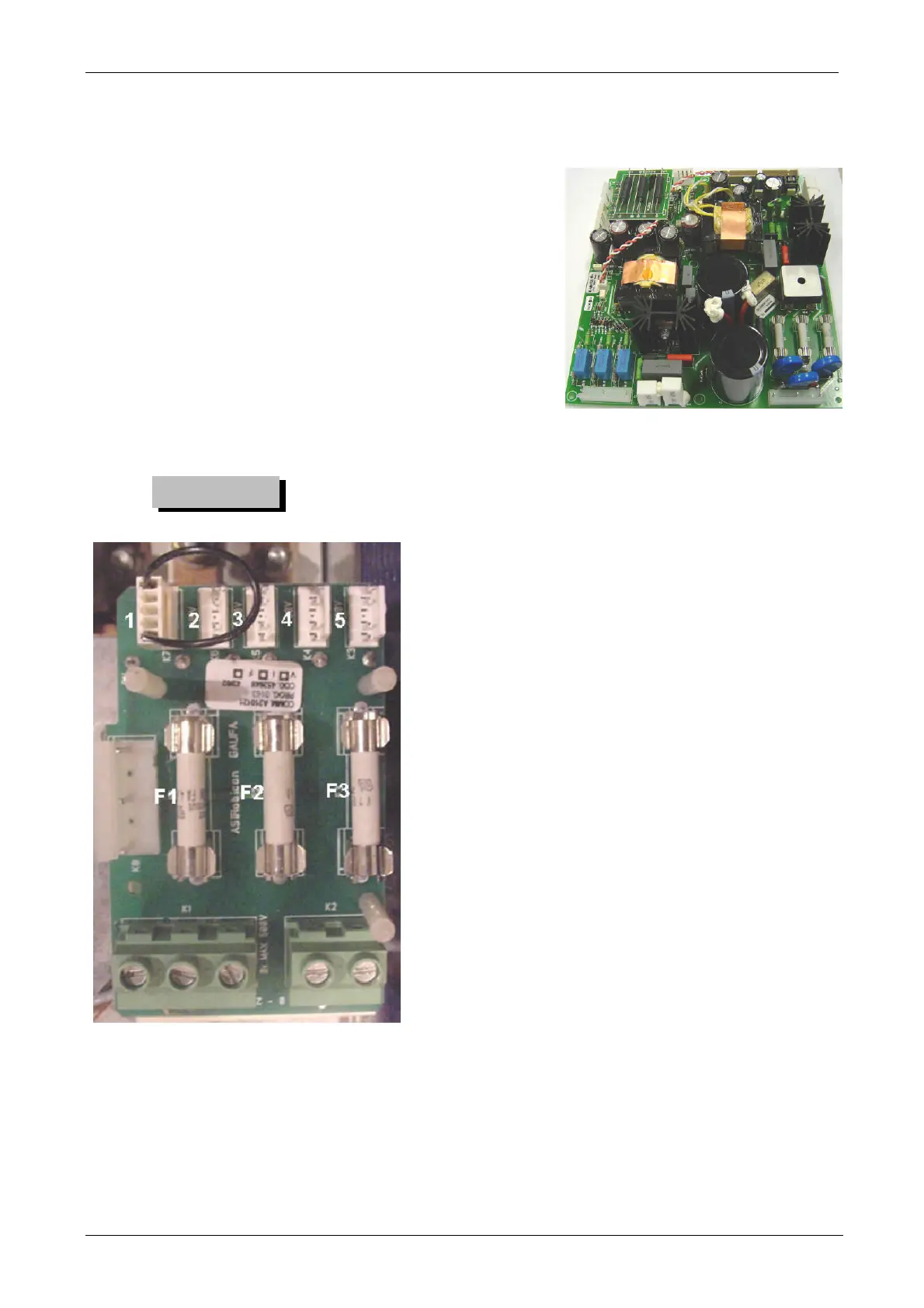

The GAUFA board is located on the upper left side of the drive.
Figure 3A.3.3 GAUFA board
SVGT292-470Y and SVGT580-780Y (DC powered drives without internal precharge) have a relay contact (NO) at two terminals
XM10/XM11, when the contact close it gives the “Precharge reached” condition.
The two terminal are located near the terminal of the main fan.
