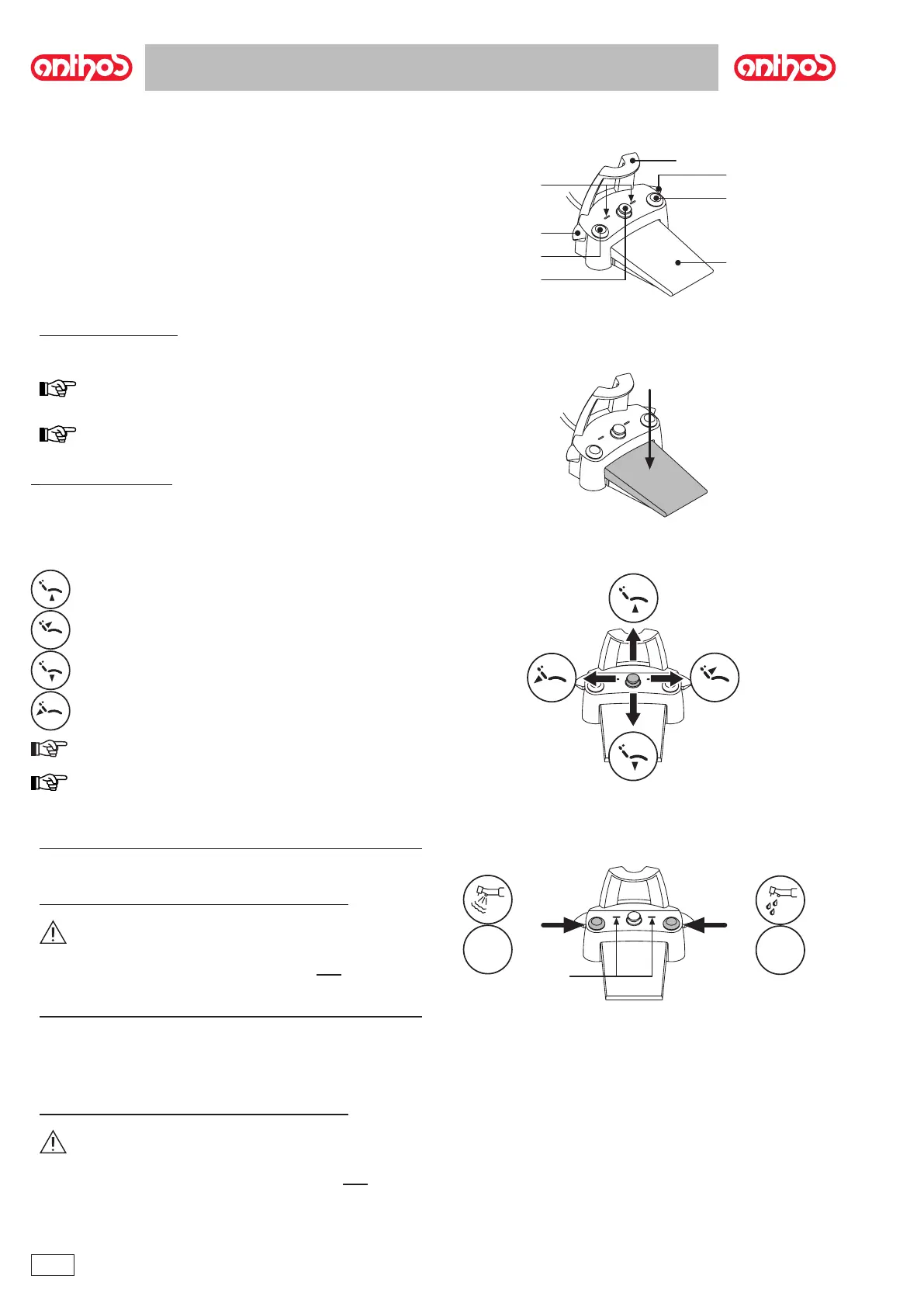

5.2.3. "Power Pedal" foot control
Description of the parts.
1 .
2
3
4
5
6
7
8
Foot control operation ( 2 ).
• With instrument removed
a
NOTE: the foot control adjusts the speed/power of the instrument
from the minimum to maximum value set from the instrument board.
NOTE: with the spray active, at the end of the operation a blast
of air is automatically activated to remove any residual drops of liquid
in the spray ducts.
• With instrument in place
Joystick for dental chair movement (3).
NOTE: all dental chair movements are blocked when an instrument
is being used or the BIOSTER system is running.
NOTE: the joystick operating mode can be changed with the instru-
ment removed (see Paragraph 5.1.1.2.3.).
Left-hand button operation ( 4 ).
•
•
WARNING!
A short acoustic signal warns of the switch.
When the LED ( 8 ) is on, it indicates operation with spray.
Right-hand button operation ( 5 ).
•
5
•
WARNING!
A short acoustic signal warns of the switch.
When the LEDs ( 8 ) are on, they indicate operation with spray.
