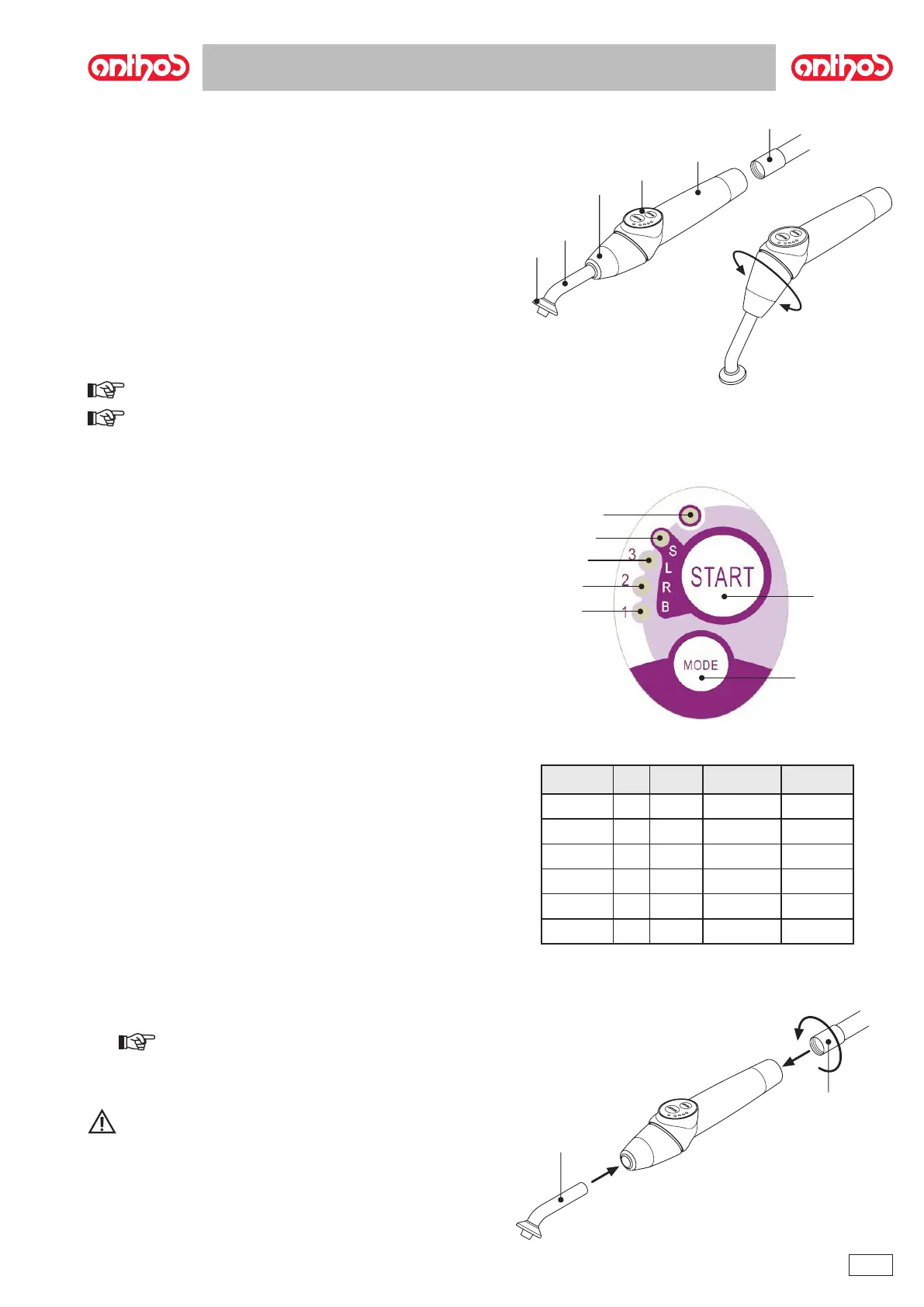

5.7. T LED curing light
(not available for the American and Canadian markets)
General description of the light
NOTE: The curing light can be used in dierent congurations (wand,
gun or any intermediate position) to aid the user.
NOTE: The curing light is delivered in its original packing which
should be kept for future shipment.
Description of the control pad
[ 1 ] LED 1 ( STANDARD cycle ) :
2
[ 2 ] LED 2 ( FAST cycle ) :
2
[ 3 ] LED 3 ( STRONG cycle ) :
2
[ 4 ] LED S :
[ LED S + LED 1 ] ramp cycle B ( BONDING ) :
2
2
2
[ LED S + LED 2 ] ramp cycle R ( RAPID RESTORATION ) :
2
2
[ LED S + LED 3 ] ramp cycle L ( LONG RESTORATION ) :
2
2
2
[ 5 ] Malfunction signalling LED:
[ 6 ] START button:
[ 7 ] MODE button:
NOTE: the cycle can be selected and the button is operative
only when the curing light is not emitting any light. If the button is
accidentally pressed while light is being emitted, nothing will happen.
Operation.
WARNING!
The instrument is supplied non-sterile.
-
tection can be sterilized in a steam autoclave at 135°C.
c
e
