If 2 cables run to the connector, the sensor with the
yellow marking with the cut-out (lifting unit link)
is for the lifting system sensor (only 4 contacts in
the connector).
如将 2 根电缆连接到连接器上，
带黄色标记及断流器
（提升装置连接）
的传感器作为提升系统传感器（连
接器仅有 4 个连接点）。
5.10 Calibration button (item no.: 00410-2-094)
5.10
标定按键（项目编号：
00410-2-094
）
Installation
安装
Fig.: 18
图：18
Fig.: 19
图：19

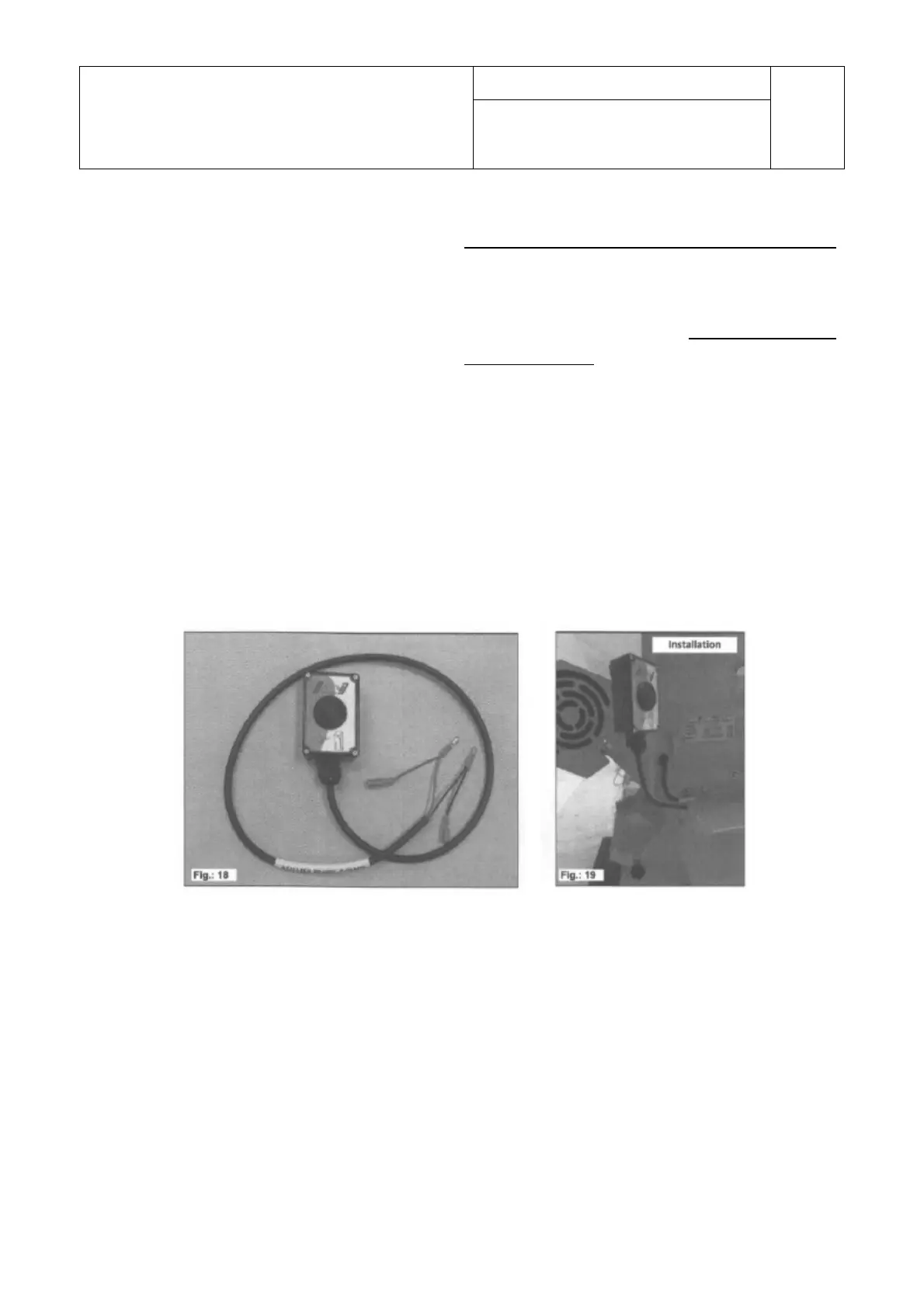

The calibration button is integrated directly with the wiring harness of the pneumatic sowing shaft and is
easily mounted on the device using the integrated magnets. Calibration testing may be started with this if
you are standing at the device, calibration takes place for arbitrary periods, and the container is also
being emptied. As soon as the calibration test has been started at the control module and you activate
the calibration button, the sowing shaft will start to turn. The calibration process lasts until the calibration
button is released again. Next, the controller calculates the required application quantity, which then
needs to be weighed and input into the menu.
