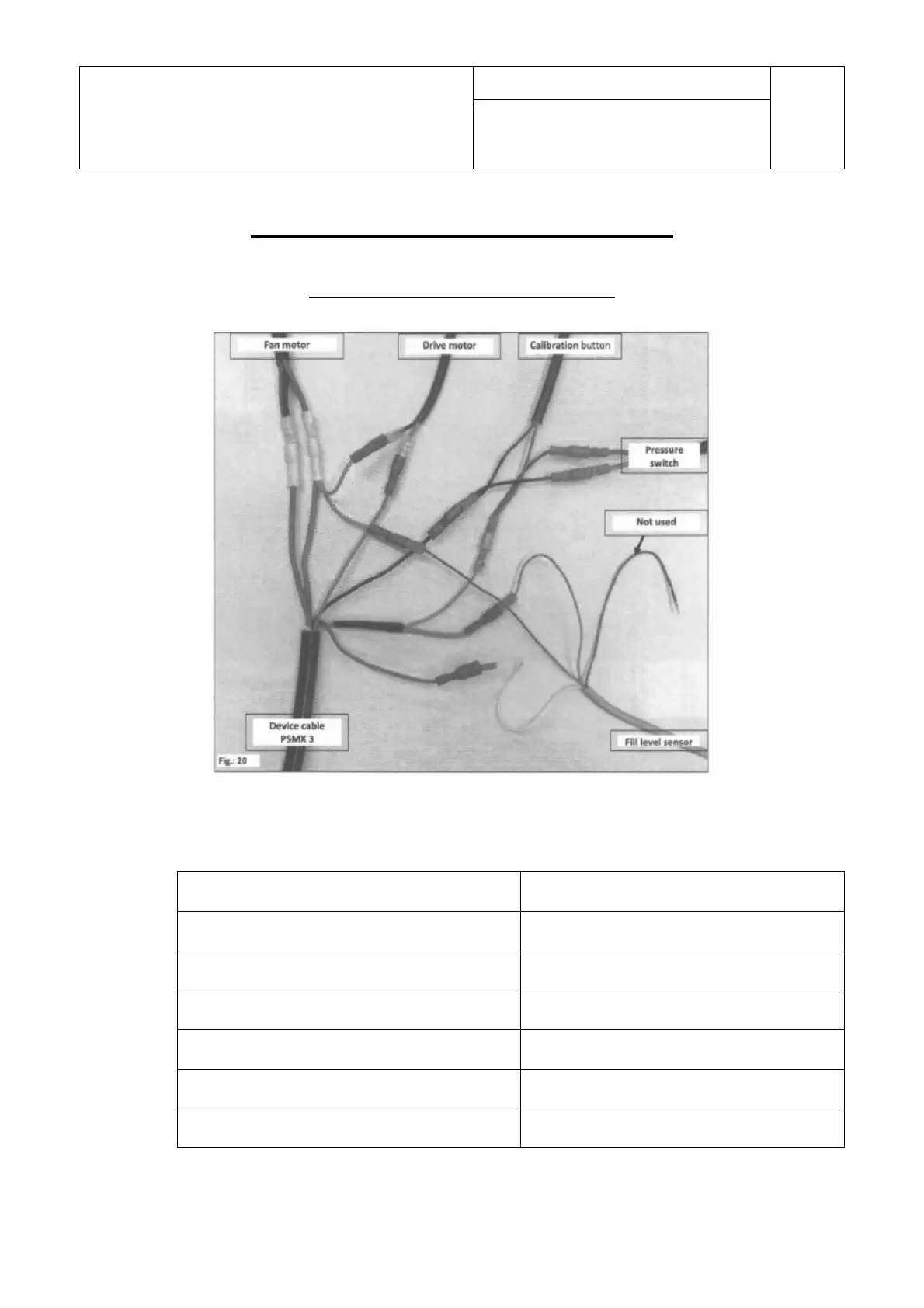

Connection dia
gram PS 12
0-500 MX
连接
示意
图
PS 120-500 MX
Fig.: 20
图：
20
Fan motor
风扇电动机
Drive motor
驱动电动机
Calibration butt
on
标定按钮
Pressure switch
压力开关
Not used
未使用
Fill level sensor
料位传感器
Device cable P
SMX 3
装置电缆
PSMX 3
63
65
Table of Contents
Table of Contents
3
Warranty
8
Quick Start
8
快速启动
8
Scope of Delivery and Fastening
8
运送范围和固定
8
Electrical Connection
9
电气连接
9
Control Module
12
控制模块
12
Initial Starting up
13
初始启动
13
Languages
13
Measuring Units
14
计量单位
14
Fan
14
Pressure Sensor
15
压力传感器
15
Machine Type
15
设备型号
15
Serial Number (with PS 800)
15
序号： （配备 Ps 800
15
Calibration Button Present
16
是否存在校准按钮
16
Main Display
17
主显示器
17
Selection Menu
17
选择菜单
17
Quick Start Tutorial Per Video
18
每个视频的快速启动教程
18
Pro Functions
20
Pro 功能
20
Calibration Test (General)
20
校准试验（基本
20
Calibrating According to Kg/Ha
20
以千克/公顷为单位进行校准
21
Calibrating According to Seeds/M2
24
以种子量/平方米为单位进行校准
24
Calibrating with the Calibration Button
28
通过校准按钮进行校准
28
Changing the Application Rate During Operation
29
操作过程中更改施用量
29
Operation with Speed Sensor
30
利用速度传感器的操作
30
Pre-Dosing
31
预配料
31
Calibrating the Driving Speed (Tachometer)
31
校准行车速度（转速计
31
Operation with Hoisting System Sensor
34
利用提升系统传感器的操作
34
Emptying
35
Emptying with the Calibration Button
36
利用校准按钮进行排空作业
36
Operating Hours Counter
36
操作时间计数器
36
Surface Area Meter (Seeded Surface Area)
37
表面积计量（已播种表面积
37
Operating Voltage / Power Display
37
工作电压/电源显示器
37
Languages
38
Fan Settings
39
风机设置
39
Measuring Units
39
计量单位
39
Controller Messages
42
控制器消息
42
Notes
42
Fault
45
Accessories
47
Ground Wheel (Item No: 04000-1-002)
47
行走轮（项目编号：04000-1-002
47
7-Pin Signal Cable(Item No.: 00410-2-006)
48
插孔信号电缆（项目编号：00410-2-006
48
Sensor Gpsa (Item No.: 00410-2-107)
50
Gpsa 传感器（项目编号：00410-2-107)
50
Radar Sensor MX35 (Item No.: 00410-2-084)
51
雷达传感器 Mx35（项目编号：00410-2-084
51
Wheel Sensor (Item No.: 00410-2-007)
53
车轮传感器（项目编号： 00410-2-007
53
Traktor Linkage Lower Bar Sensor
55
拖拉机联动装置低杆传感器（项目编号：00410-2-008
55
Tractor Linkage Upper Bar Sensor (Item No.: 00410-2-074)
57
拖拉机联动装置高杆传感器（项目编号：00410-2-074
57
Tractor Linkage Pull Switch Sensor (Item No.: 00410-2-115)
59
拖拉机联动装置拉线开关传感器（项目编号：00410-2-115
59
Splittercable (Item No.: 00410-2-010)
61
分离电缆（项目编号：00410-2-010
61
Calibration Button (Item No.: 00410-2-094)
62
标定按键（项目编号：00410-2-094
62
Note
63
Set of Adapter Cables for Tractors 8M (Item No.: 00410-2-022)
68
一套拖拉机用接合器多芯导线 8 米（项目编号：00410-2-022
68
Programming 5.2 (Customer Service)
69
程序设计 5.2（客户服务
69
Fan
70
Signal for Switching the Sowing Shaft On/Off (Warning Tone)
70
播种轴启动/关闭信号（提示音
70
Ground Wheel
71
行走轮
71
Wheel Sensor
71
车轮传感器
71
DIN 9684 Signal
71
德国国家标准 9684 信号
71
Radar Sensor
72
雷达传感器
72
Tractor Linkage / Hoisting System
73
拖拉机联动装置/提升系统
73
Hoisting System Signal
73
提升系统信号
73
Buzzer (Warning Signal)
74
蜂鸣器（警报信号
74
Sowing Shaft Motor
74
播种轴电动机
74
Pressure Sensor
75
压力传感器
75
Calibration Button Present
75
是否存在校准按钮
75
Measuring Units
75
计量单位
75
