WEB BROWSER-BASED CONFIGURATION
the user can only monitor and congure the SATA RAID controller
by providing the correct password.
The password is used to protect the SATA RAID controller from
unauthorized entry. The controller will check the password only
when entering the Main menu from the initial screen. The SATA
RAID controller will automatically go back to the initial screen
when it does not receive any command in 5 minutes. Do not use
spaces when you enter the password, If spaces are used, it will
lock out the user. To disable the password, leave the elds blank.
Once the user conrms the operation and clicks the Submit but-
ton, the existing password will be cleared. Afterwhich, no pass-
word checking will occur when entering the main menu from the
starting screen.
6.8.6 Update Firmware
Please refer to the appendix A Upgrading Flash ROM Update Pro-
cess.
6.9 Information

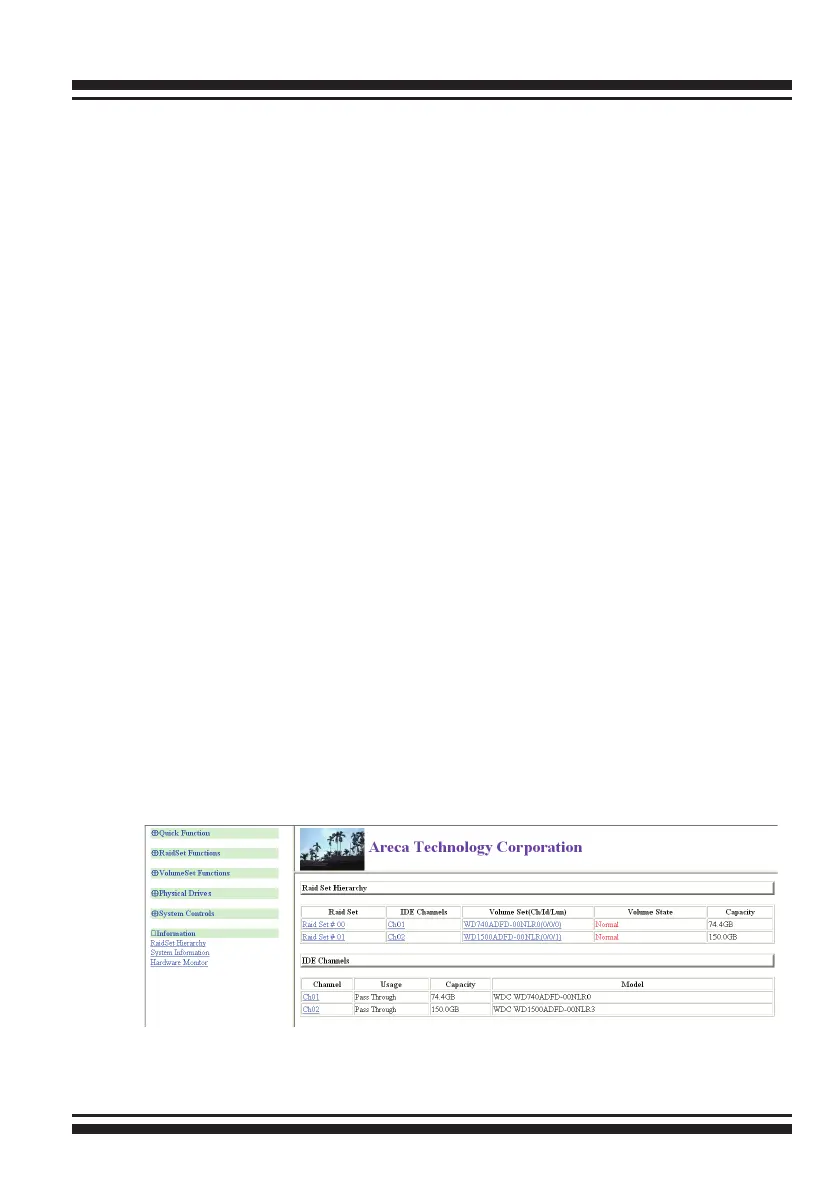

6.9.1 Raid Set Hierarchy
Use this feature to view the SATA RAID controller current RAID
set, current volume set and physical disk conguration. Please
reference the this chapter “Conguring Raid Sets and Volume
Sets”
