P44x/EN AD/E44 Update Documentation
Page 42/82
MiCOM P441, P442 & P444
9. NEW ADDITIONNAL FUNCTIONS – VERSION C2.X (MODEL 030G/H/J)
9.1 Hardware new features:
− Integration of the new CPU board at 150 MHz
− Optional fast static outputs (selected by Cortec code)
− Optional 46 outputs in P444-model 20H/ 30H
− Integration of Dual optos with/without filter
− Integration of InterMiCOM
− Integration of Ethernet board with UCA2 protocol (61850 -8-1 available soon)

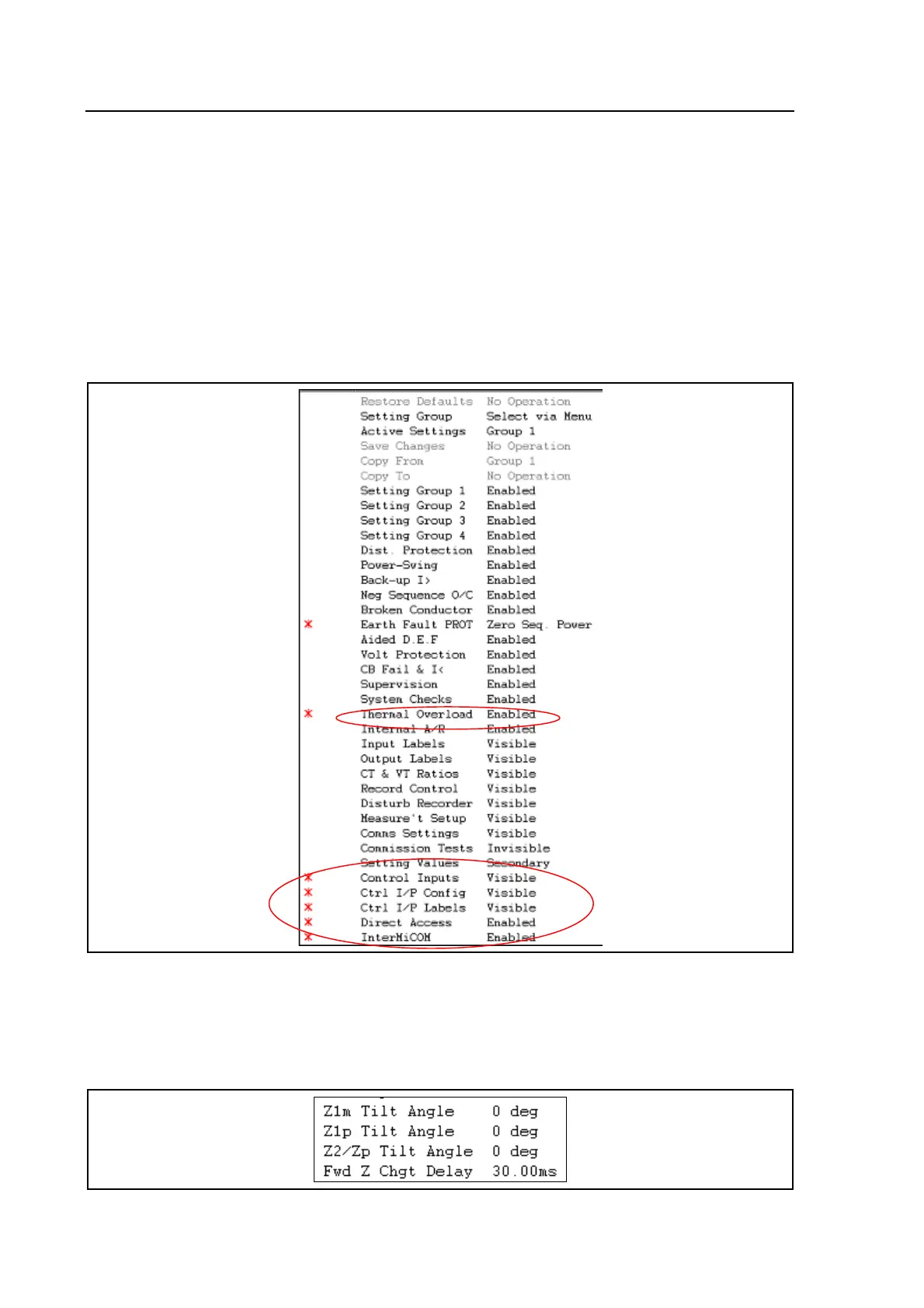

NEW FEATURES HARD & SOFT SINCE VERSION C2.X
9.2 Function Improved : Distance
− Addition of a settable time delay to prevent maloperation due to zone evolution from
zone
n
to zone
n-1
by CB operation
− Addition of a tilt characteristic for zone 1 (independent setting for phase-to-ground and
phase-to-phase). Settable between ± 45°
