Areva MiCOM P441 - P44 X;En AD;E44

P44x/EN AD/E44 Update Documentation
Page 46/82 MiCOM P441, P442 & P444
9.6.1 Single time constant characteristic
This characteristic is the recommended typical setting for line and cable protection.
The thermal time characteristic is given by:
exp(-t/τ) = (Ι
2
- (k.Ι
FLC
)
2
) / (Ι
2
- Ι
P
2
)
Where:
t = Time to trip, following application of the overload current, Ι;
τ = Heating and cooling time constant of the protected plant;
Ι = Largest phase current;
Ι
FLC
= Full load current rating (relay setting ‘Thermal Trip’);
k = 1.05 constant, allows continuous operation up to < 1.05 Ι
FLC
.
Ι
P
= Steady state pre-loading before application of the overload.
The time to trip varies depending on the load current carried before application of the
overload, i.e. whether the overload was applied from «hot» or «cold».
9.6.2 Dual time constant characteristic (Typically not applied for MiCOMho P443)
This characteristic is used to protect oil-filled transformers with natural air cooling (e.g. type
ONAN). The thermal model is similar to that with the single time constant, except that two
time constants must be set. The thermal curve is defined as:
0.4 exp(-t/τ1) + 0.6 exp(-t/τ2) = (Ι
2
- (k.Ι
FLC
)
2
) / (Ι
2
- Ι
P
2
)
Where:
τ1 = Heating and cooling time constant of the transformer windings;
τ2 = Heating and cooling time constant for the insulating oil.
For marginal overloading, heat will flow from the windings into the bulk of the insulating oil.
Thus, at low current, the replica curve is dominated by the long time constant for the oil.
This provides protection against a general rise in oil temperature.
For severe overloading, heat accumulates in the transformer windings, with little opportunity
for dissipation into the surrounding insulating oil. Thus, at high current, the replica curve is
dominated by the short time constant for the windings. This provides protection against hot
spots developing within the transformer windings.
Overall, the dual time constant characteristic provided within the relay serves to protect the
winding insulation from ageing, and to minimise gas production by overheated oil. Note,
however, that the thermal model does not compensate for the effects of ambient temperature
change.

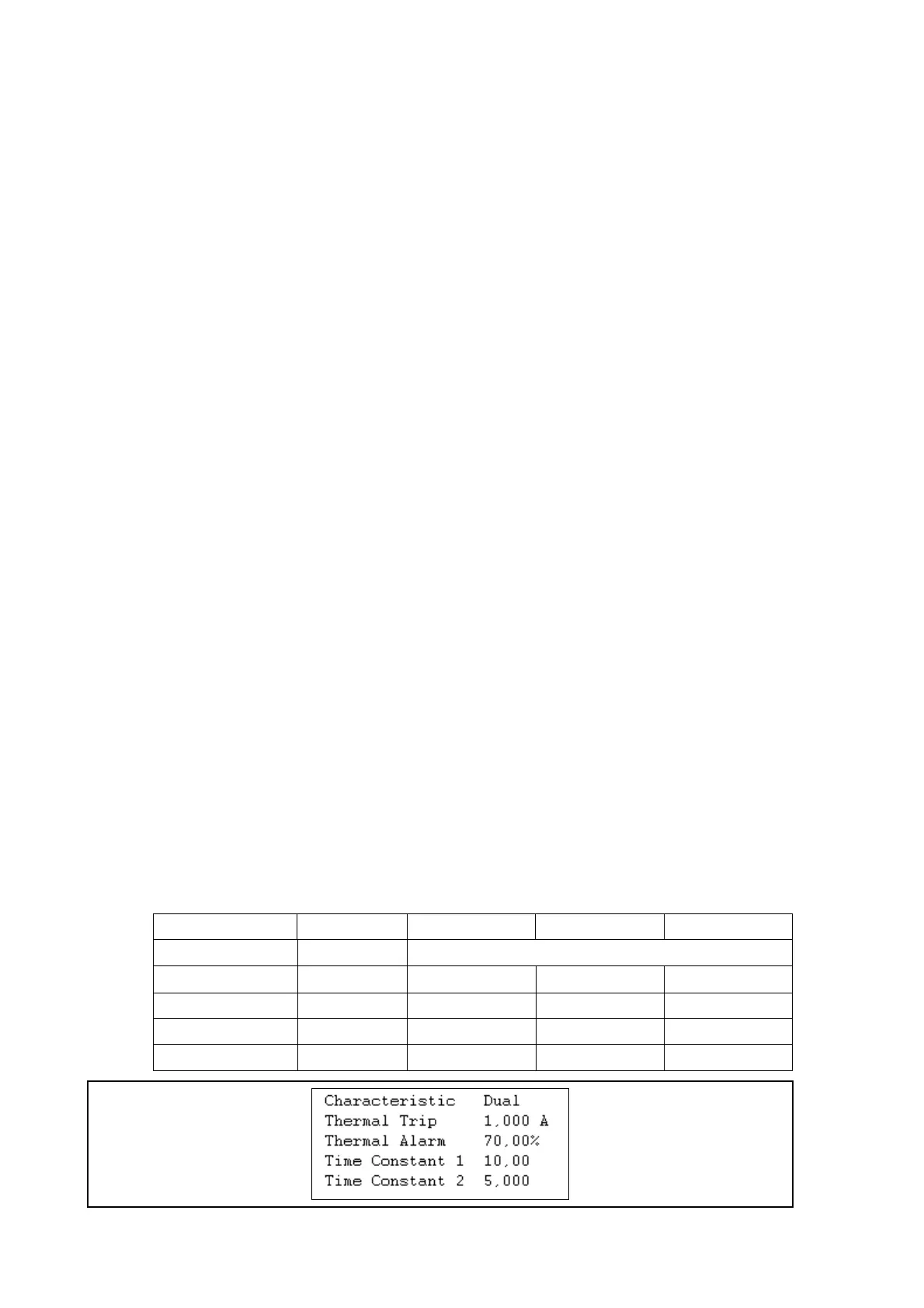

The following table shows the menu settings for the thermal protection element:
THERMAL Default Min Max Step
Thermal Char Single Disabled, Single, Dual
Thermal Trip
1Ιn 0.08Ιn 3.2Ιn 0.01Ιn
Thermal Alarm 70% 50% 100% 1%
Time Constant 1 10 minutes 1 minutes 200 minutes 1 minutes
Time Constant 2 5 minutes 1 minutes 200 minutes 1 minutes
THERMAL PROTECTION MENU SETTINGS
