Update Documentation P44x/EN AD/E44
MiCOM P441, P442 & P444
Page 49/82
The 2 Hotkeys in the front panel (see also IT Chapter 3.1.1 & 3.6.3.3) can perform a direct
command if a dedicated PSL has been previously created using “CONTROL INPUT” cell. In
total the MiCOM P440 offers 32 control inputs which can be activated by the Hotkey
manually or by the IEC 103 remote communication (if that option has been flashed with the
firmware of the relay (see also cortec code)):

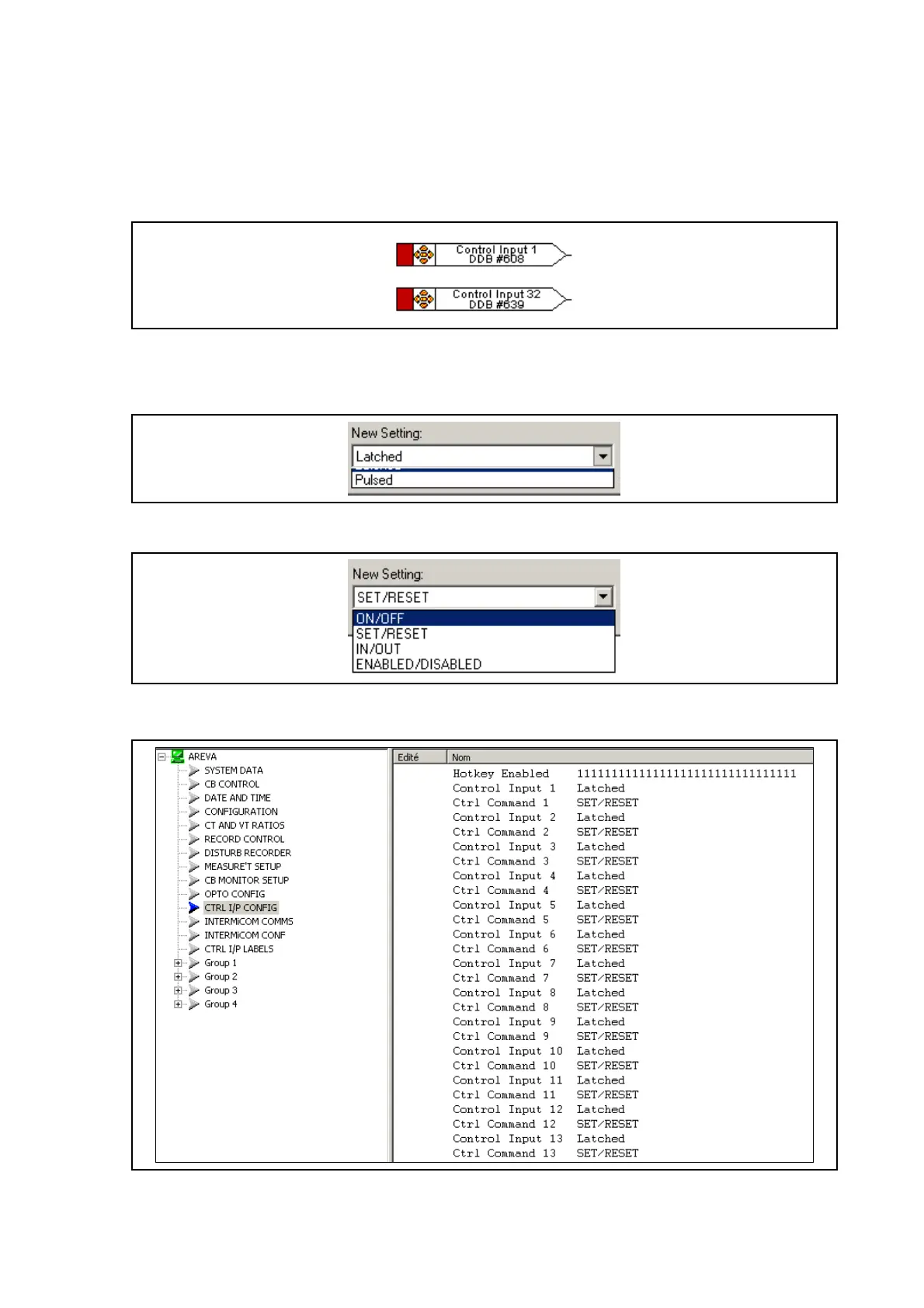

The control input can be linked to any DDB cell as: led, relay , internal logic cell (that can be
useful during test & commissioning) – see also the section 9.9 in chapter AP - Different
condition can be managed for the command as:
And also the text for passing the command can be selected between:
