1.8 CUBE – Wired room sensor (Only Alteas – No China)
Together with the boiler is supplied the wired room sensor CUBE.
The main functions are:
• Room Temperature setting;
• Time program/Manual mode/Off;
• Override function.

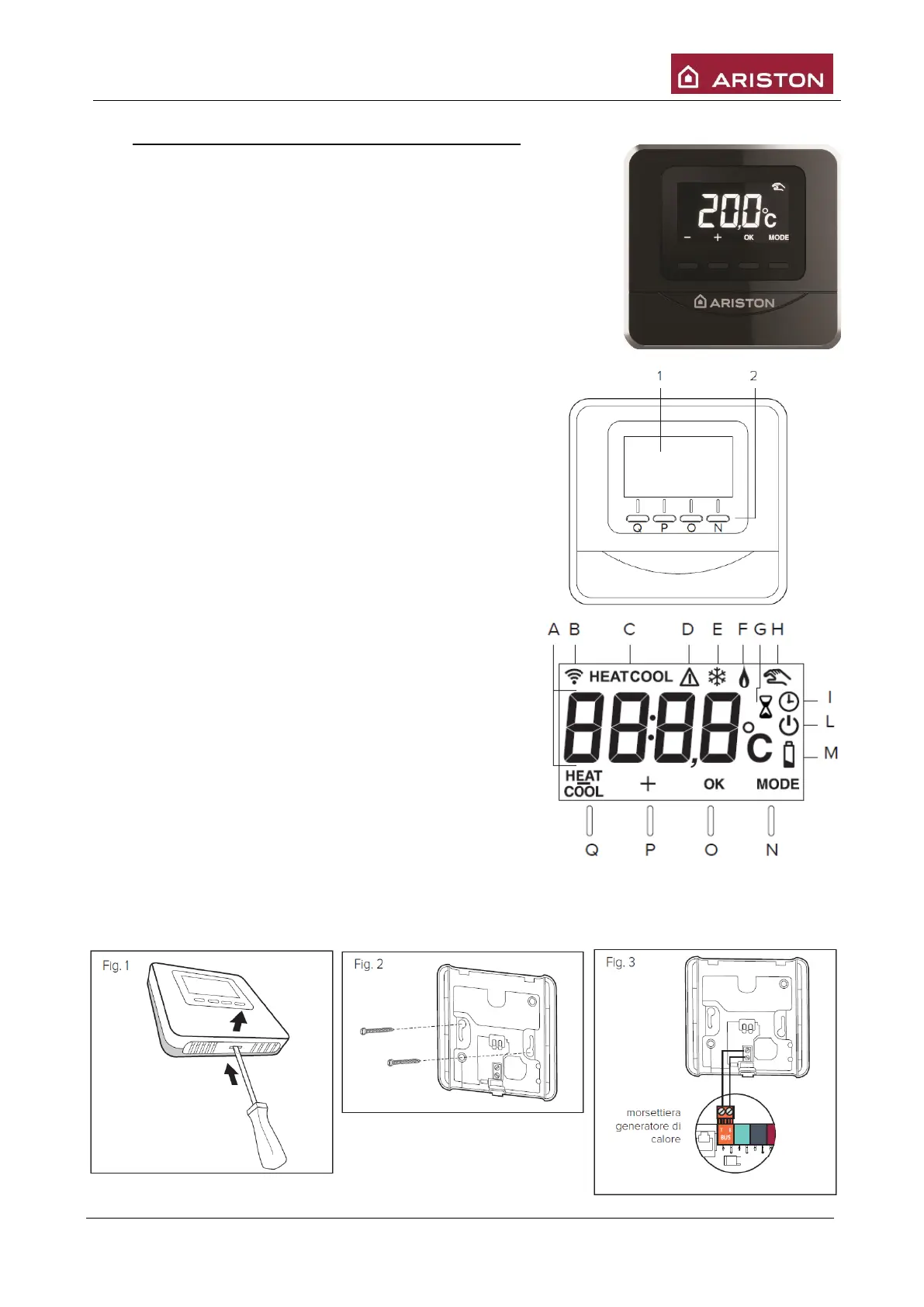

Room Sensor:
1. display
2. button
Display:
A. Measured room temperature
B. WiFi device detected on the bus
C. Heating/cooling mode active
D. Error notification
E. Heat/cooling request active or antifreeze mode
F. Heating request
G. Time extension of room temperature
set-point in program mode
H. Manual mode
I. Time program mode
(heating cooling according to time program
profile set by system interface)
L. OFF of the associated zone
M. Low battery (not present on wired room sensor)
N. Operation mode selection (MODE)
O. Confirmation o selection (OK)
P. Increase set-point temperature (+)
Q. Decrease set-point temperature (-)
Selection of heating (HEAT) or cooling (COOL)
operation mode of the system.
