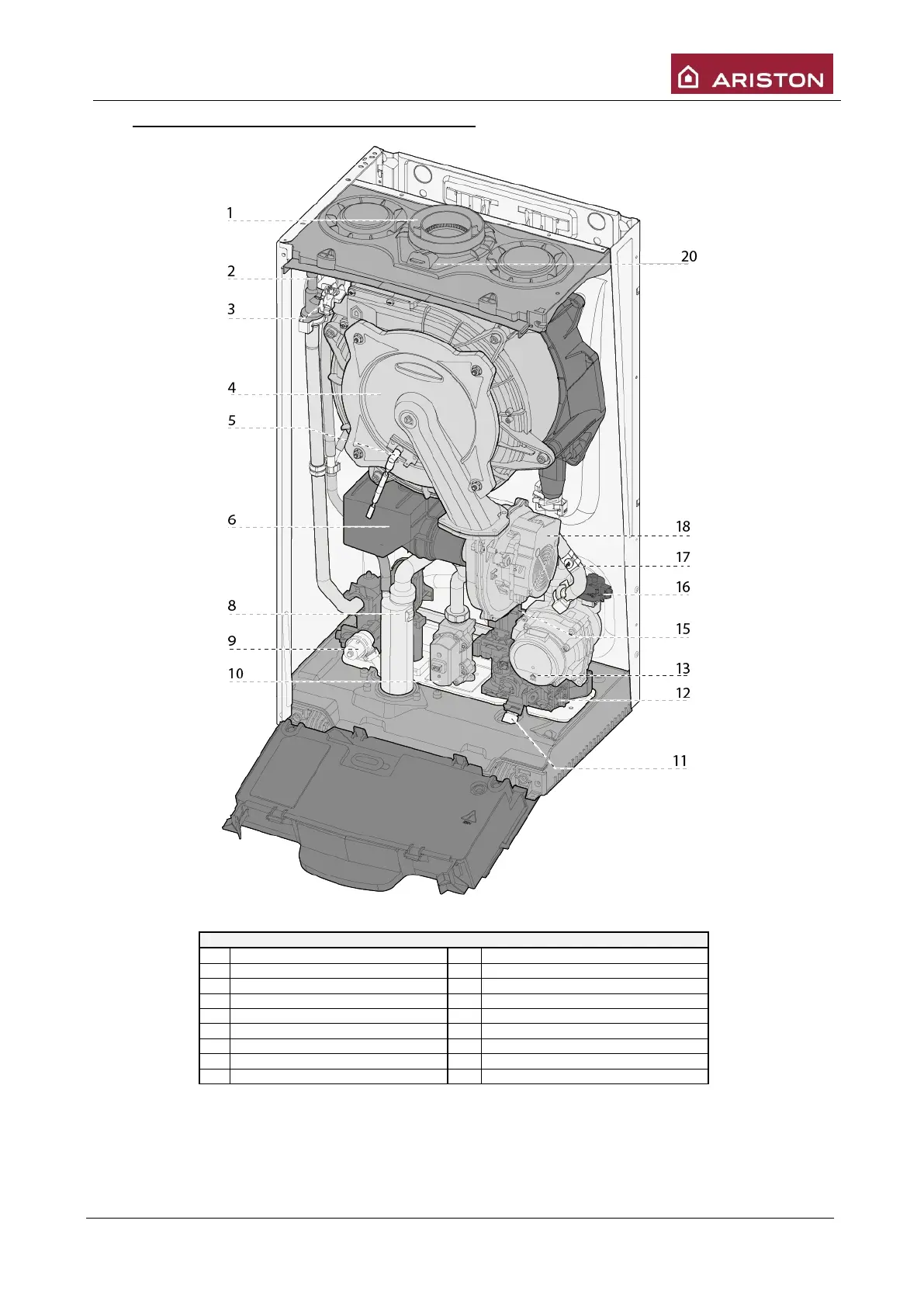

1.3 DETAILED DESCRIPTION – SYSTEM VERSION
CAPTION
1
Exhaust discharge
11
Filling tap
2
Manual deaerator
12
Heating filter
3
Delivery sensor NTC1
13
Pump
4
Primary heat exchanger
15
3 way valve
5
Ignition and detection electrode
16
Heating pressure sensor
6
Silencer
17
Return sensor NTC2
8
Siphon
18
Fan
9
3 bar safety valve
20
Exhaust analysis intake
10
Gas valve
