Ariston GENUS PREMIUM EVO 24

Training manual ALTEAS & GENUS ONE
Page. 29 of 88

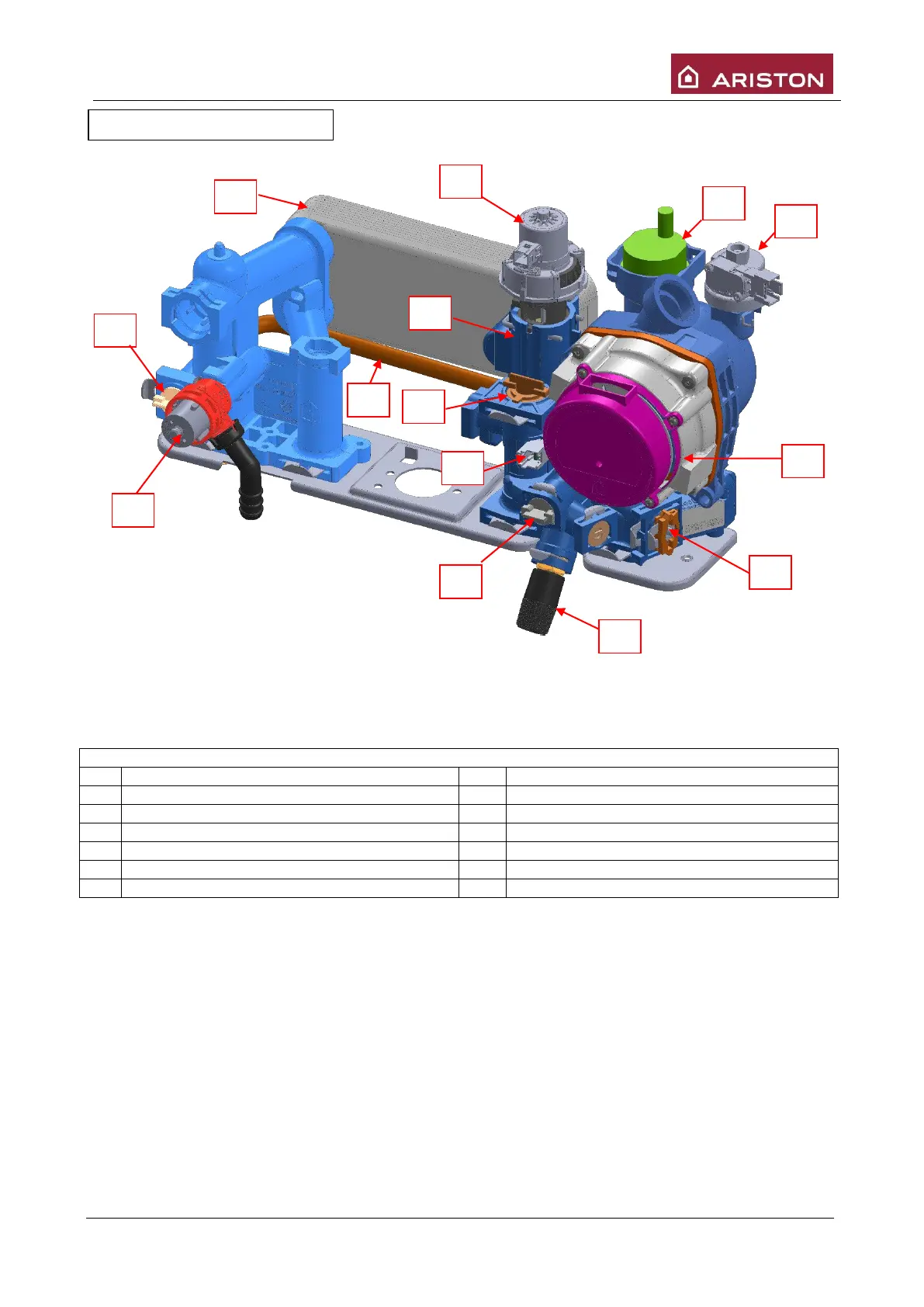

5 HYDRAULIC UNIT
CAPTION
1
3 way valve motor
8
Heating filter and pressure gauge connection
2
3 way valve
9
Filling tap
3
Sanitary flow switch
10
No back-flow valve
4
Reed sensor
11
3 bar safety valve
5
Automatic air valve
12
By-pass
6
Pressure sensor
13
By-pass pipe
7
Pump
14
Sanitary plate heat exchanger
1
3
7
12
2
5
6
8
4
9
10
11
13
14
