Ariston GENUS PREMIUM EVO 24

Training manual ALTEAS & GENUS ONE
Page. 6 of 88 Version 2V2.

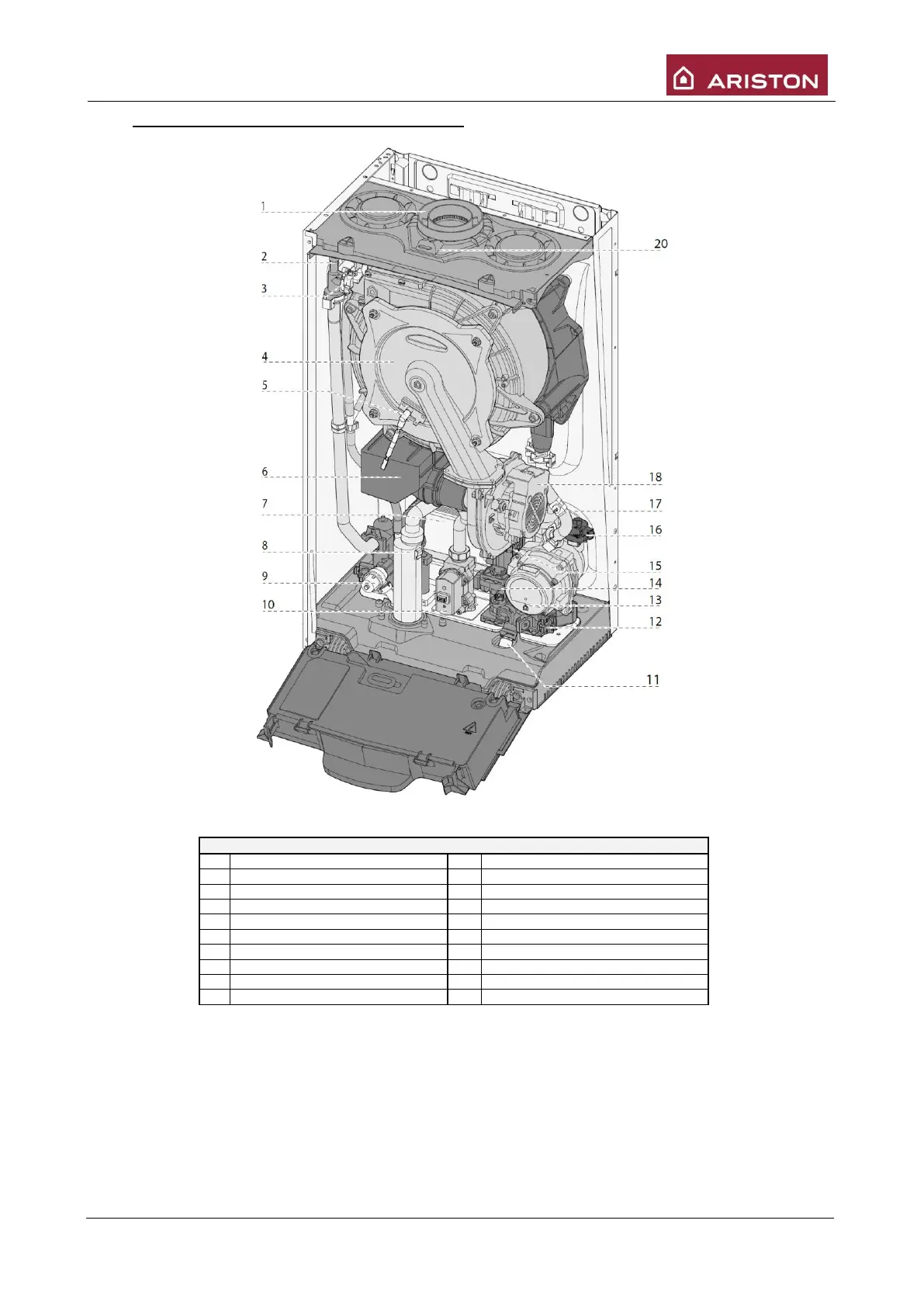

1.2 DETAILED DESCRIPTION – COMBI VERSION
CAPTION
1
Exhaust discharge
11
Filling tap
2
Manual deaerator
12
Heating filter
3
Delivery sensor NTC1
13
Pump
4
Primary heat exchanger
14
Sanitary flow switch
5
Ignition and detection electrode
15
3 way valve
6
Silencer
16
Heating pressure sensor
7
Sanitary heat exchanger
17
Return sensor NTC2
8
Siphon
18
Fan
9
3 bar safety valve
20
Exhaust analysis intake
10
Gas valve
