Product Description/Functions
Power Button (green)
(See Fig. 8) Located adjacent to the stop button, this
button is used to turn the unit on.
System Failure Wind Down Facility
If electrical power fails completely due to battery power
loss or other electrical malfunction, the jib can be
lowered by first raising the red colored emergency
lowering lever found on the rear section of the mast (See
Fig. 9).

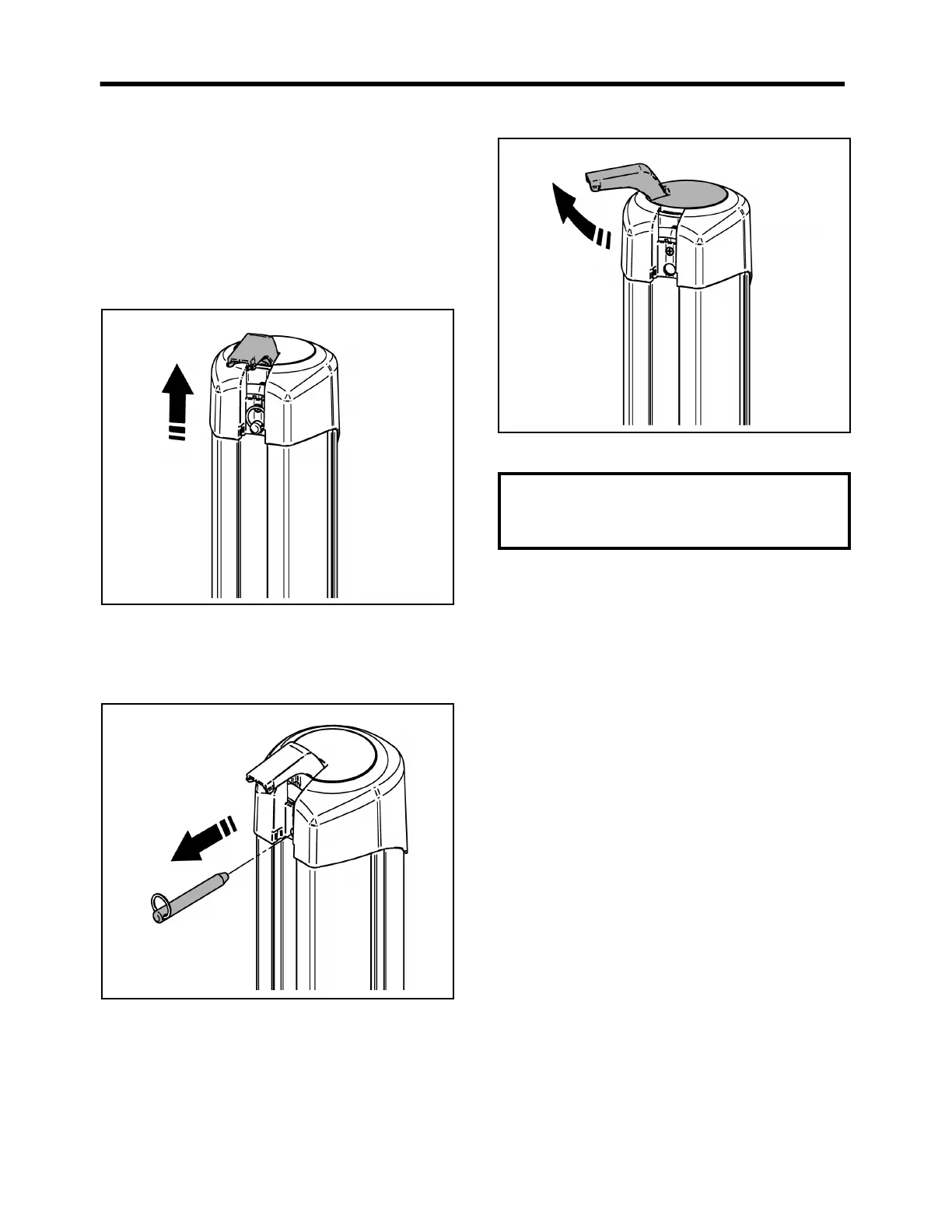

Fig. 9
Next, remove the exposed locking pin from its location
beneath the red colored emergency lowering lever (see
Fig. 10).
Fig. 10
Finally, using the lever as a crank, turn it in a clockwise
rotation (see Fig. 11). One full clockwise rotation of the
shaft lowers the mast jib by 10 mm (3/8 in).
Fig. 11
If the wind down function must be used, immediately
remove the lift from use and contact the ARJO Service
Department or its appointed distributor.
Automatic Cut-Out
This is not an operator control but a function built into
the lift’s electronics.
If the lift is inadvertently overloaded by trying to lift a
load heavier than permitted, an automatic “cut-out”
function operates to prevent the lift from raising a weight
in excess of the safe working load (SWL). This will stop
the lift’s motion automatically.
If this occurs, release the jib “up” button on the handset
or the control panel. The electronics will reset after a
short delay to enable the patient to be lowered only when
either of the “down” buttons is pressed. Make sure that
the Maxi Move operates only within its safe working
load.
Anti-Crush System
This is not an operator control but a function built into
the lift’s electronics.
Great care should be taken not to lower the spreader bar,
or stretcher onto the patient or any other obstruction. If
this should happen, the unit’s “anti-crush” system will
engage, stop the motor and all downward movement will
cease. If this occurs, release the jib “down” button
immediately and press the jib “up” button to raise the jib
until the lift is clear. Then remove the obstruction.
Battery Indicator
The battery indicator for the Maxi Move is a feature
found on the control handset. Please refer to the “Battery
Charging” section for operating procedures.
WARNING: If the mast is in a high position and
the wind down function must be used, ensure
that suitable and safe measures are taken to
gain access to the top cover.
