Introduction
High
-Definition DVR DCX3520e-M • Installation Manual
2
365
-095-25080-x.1

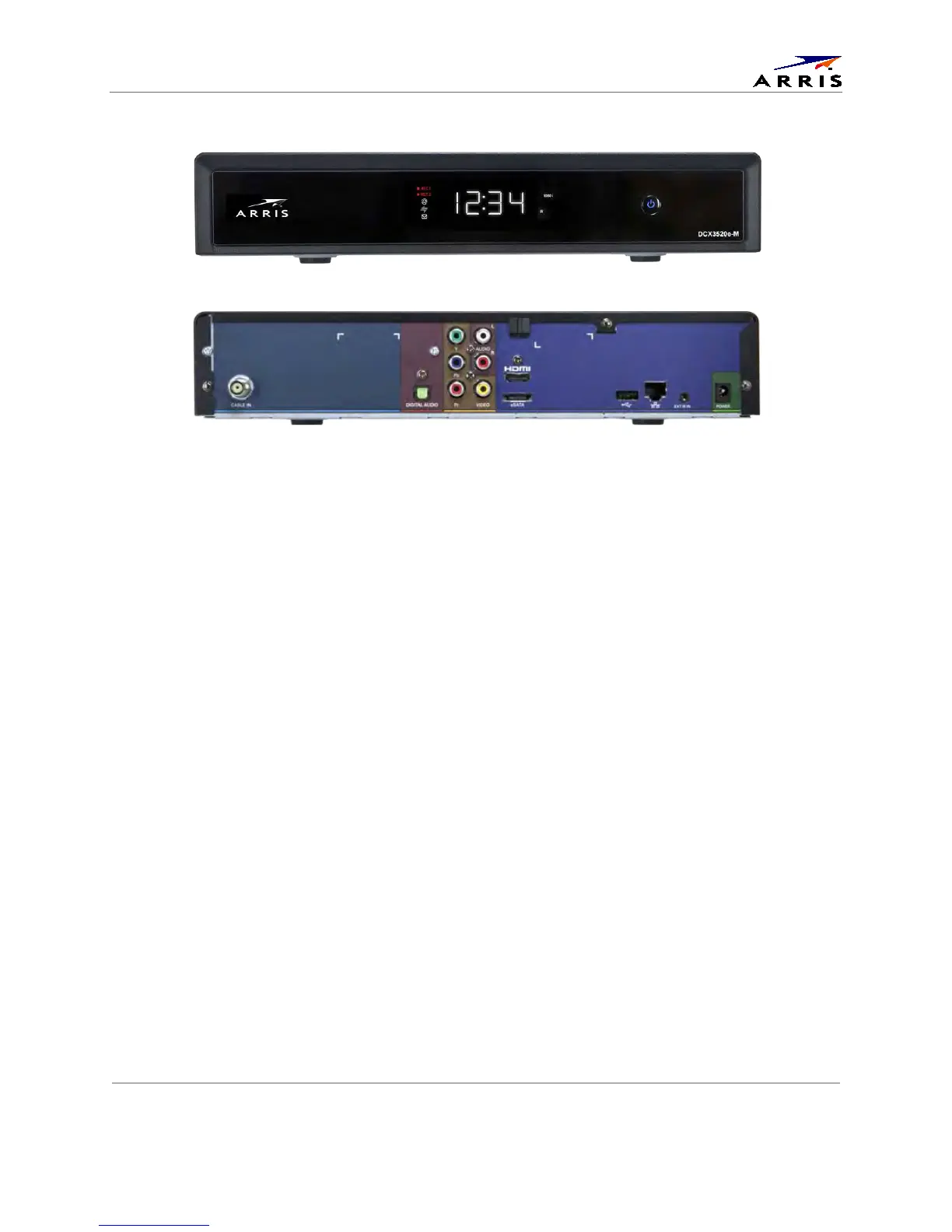

Figure 1: Front and rear views
Features
Tuners
• Two all-digital 1 GHz (54 to 1002 MHz) video tuners
• MPEG 2 Main Profile @ High Level (High-Definition)
• MPEG-4 H.264 (AVC) High-Definition decode
• One dedicated tuner for the DOCSIS high-speed data services channel, up to 1 GHz
• One dedicated tuner for the out-of-band (OOB) control channel
Standard Audio/Video Features
• ITU standard 64/256 QAM/FEC/enhanced adaptive equalizer
• Out-of-band data receiver (70 130 MHz) 2.048 Mbps
• Digital video scaling (picture in graphics)
• Accelerated 2-D and 3-D graphics support in hardware
• Macrovision® copy protection
• High-Definition video output through:
ο HDMI (also compatible with DVI using an HDMI-to-DVI converter cable)
ο Component video (YPbPr)
• Standard-Definition video output through Baseband
• Audio output through:
