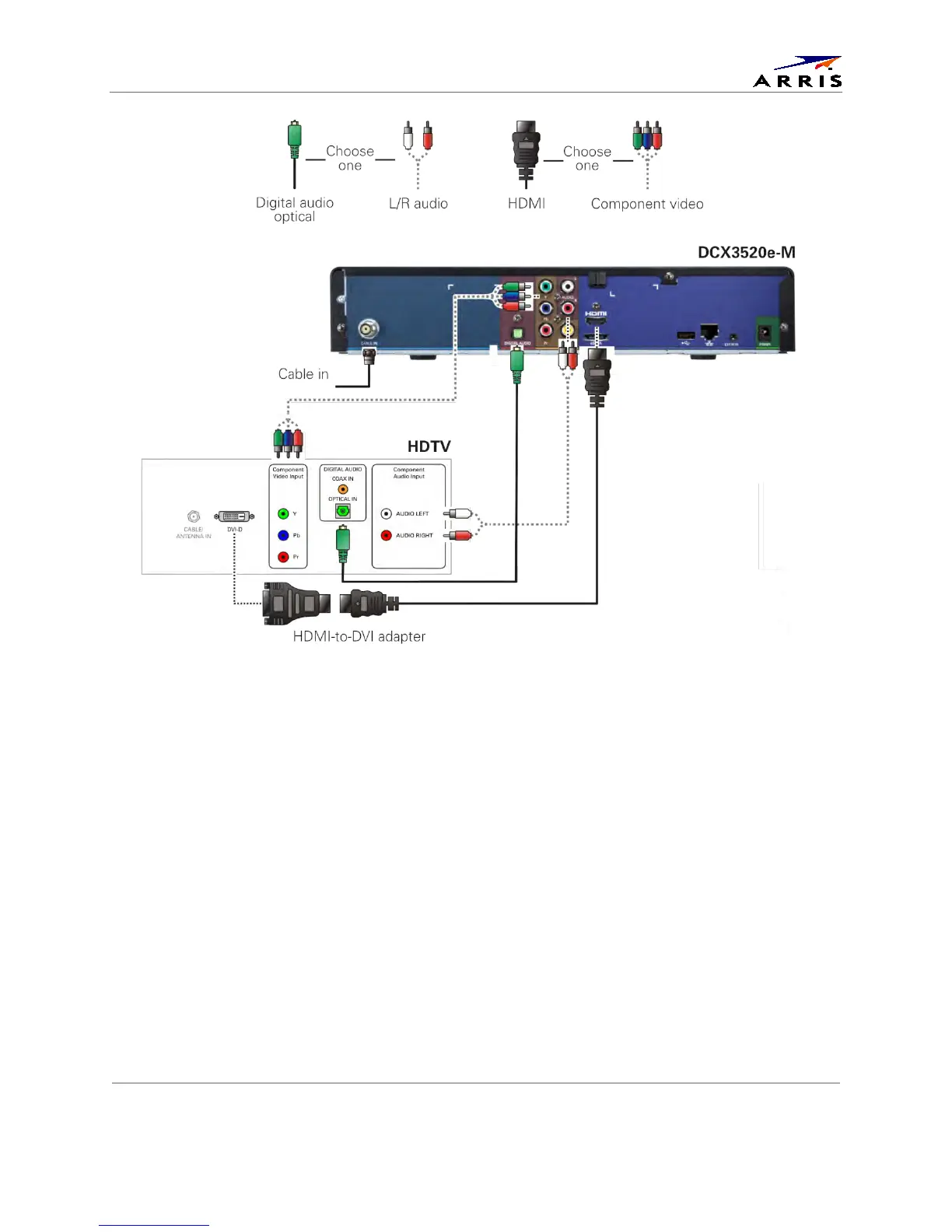

Figure 5: Connecting an HDTV — Separate Video/Audio Connections
Note: If the receiver can check the baseband and digital audio (S/PDIF) ports for appropriate channels,
connect both the baseband and digital audio connections. Otherwise, do not connect both the baseband
left/right composite connections and the coaxial digital connection. The baseband connections are not
necessary because the digital audio port provides a single audio interface for digital channels.
Note: If the A/V receiver includes HDMI inputs and output(s), then the DCX3520e-M HDMI output can be
directly connected to the A/V receiver.
